MAF Adapter 3-Wire + IAT > 5-Wire GT150 2006+ Z06 Corvette, 98-02 LS1 Camaro

MAF-001 -MAF Adapter 3-Wire + IAT > 5-Wire GT150

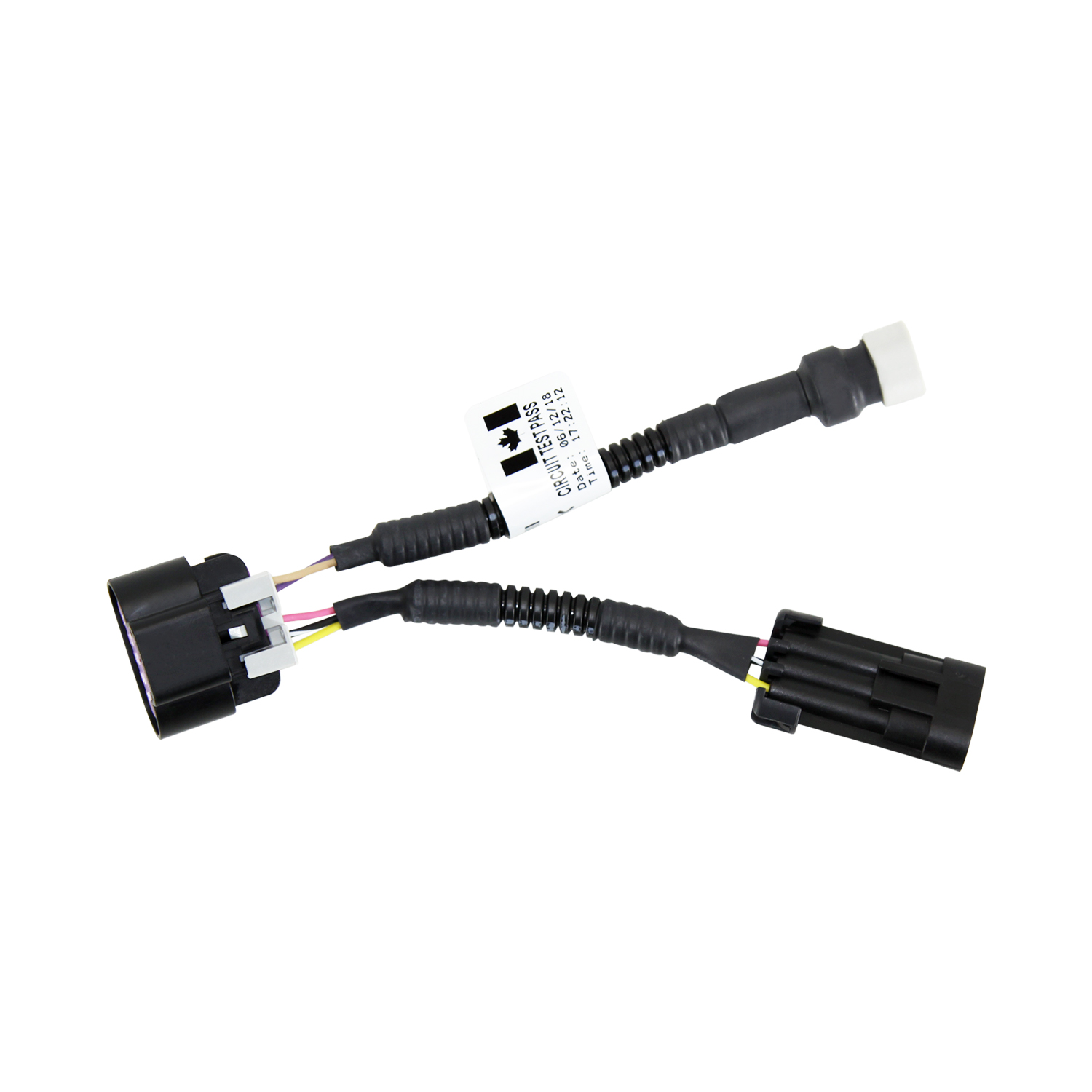

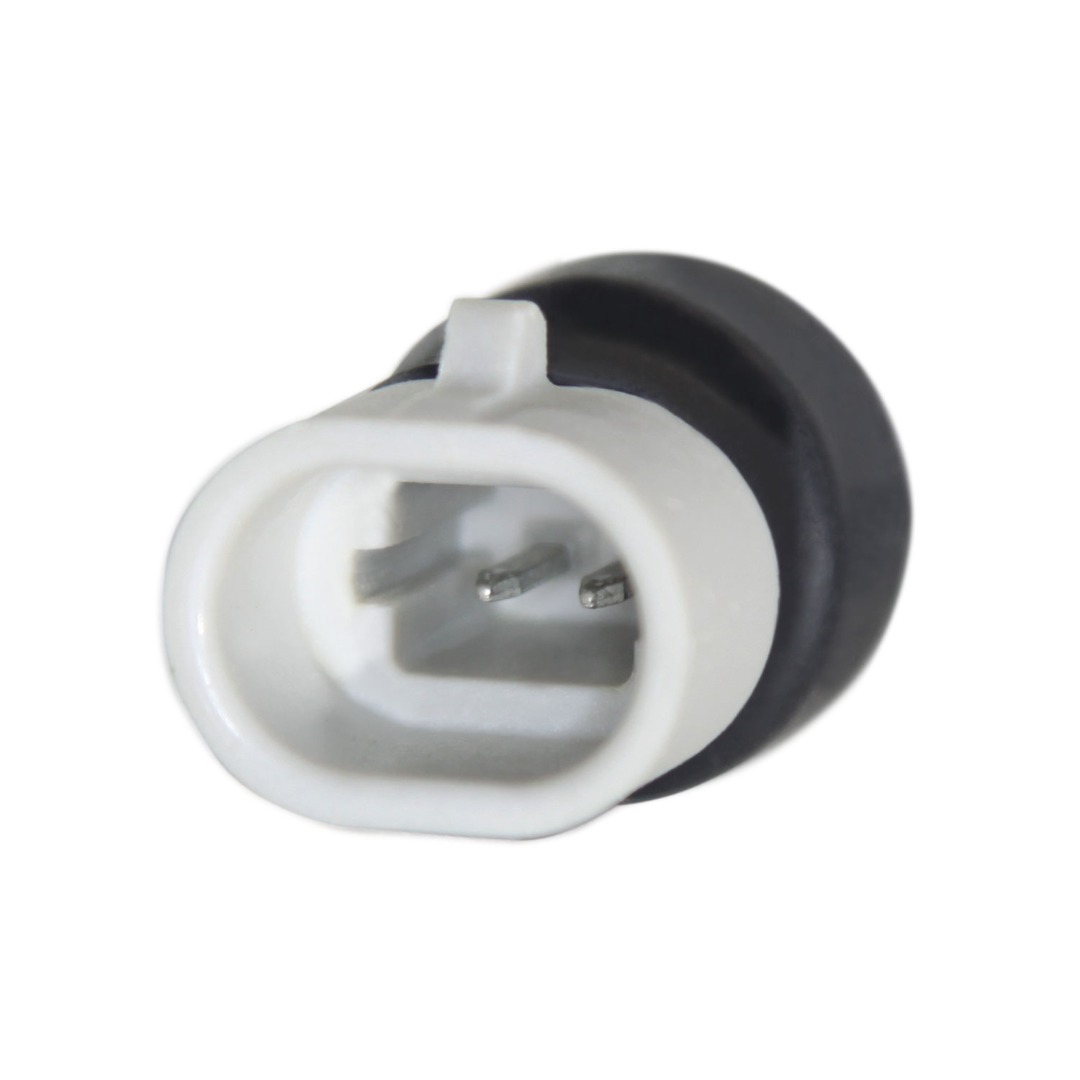

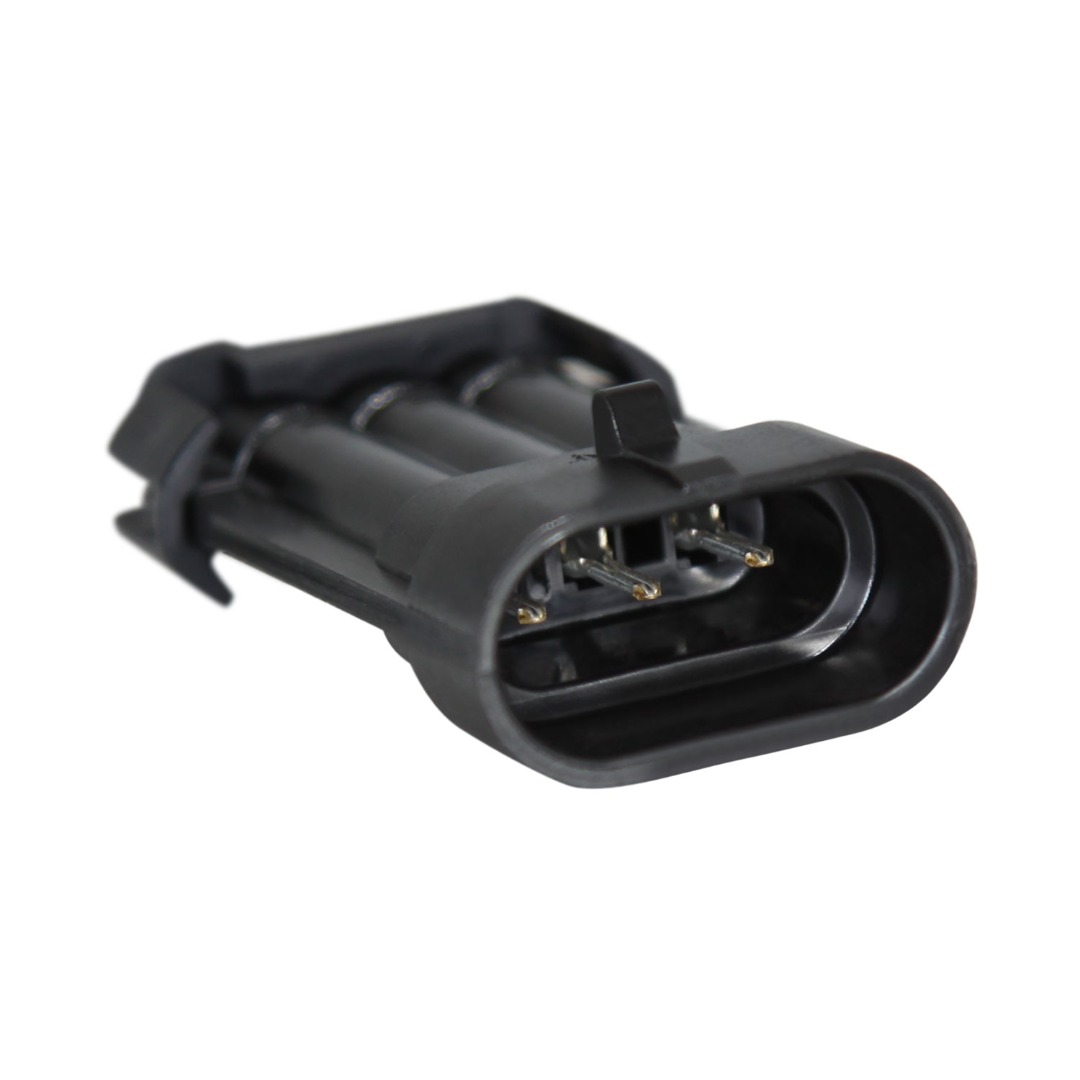

This adapter harness allows for plug and play installation of a late-model GM / Delphi 5-wire MAF using the wide-spaced GT150 Series connector (2006+ Z06 Corvette) in a 3-wire MAF car. (98-02 LS1 Camaro / Firebird). The air temperature sensor (IAT / ATS) connector uses the standard Delphi Metri-Pack 150 Series connector found on the majority of GM vehicles.

Connector terminal designations:

5-Wire Connector3-Wire ConnectorTwo-Wire ConnectorWire ColorFunction
A
A
-
Yellow
MAF Sensor Signal
B
B
-
Black
Ground
C
C
-
Pink
Igntional Voltage +
D
-
A
Violet

Low Reference
E
-
B
Tan
IAT Sensor Signal

This product was added to our catalog on Thursday 04 August, 2022.
