2001-2005 Corvette MAF Adapter 3-Wire + IAT > 5-Wire GT150 3.5mm Narrow

MAF-003 - MAF Adapter 3-Wire + IAT > 5-Wire GT150 3.5mm Narrow

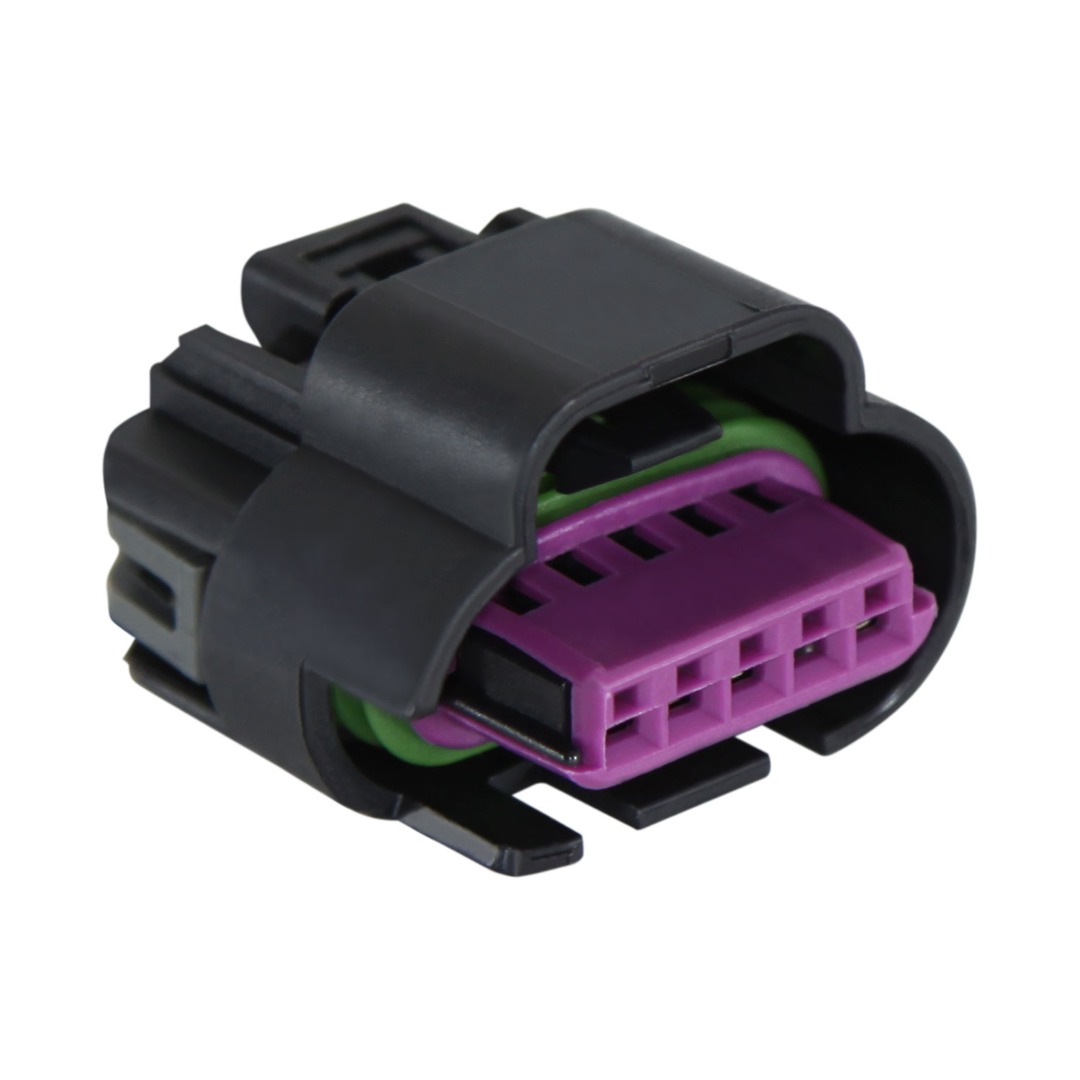

This adapter harness allows for plug and play installation of a late-model GM / Delphi 5-wire MAF using the narrow-spaced GT150 Series connector (exclusive on 2001-2005 Corvette) in a 3-wire MAF car. (98-02 LS1 Camaro / Firebird, 97-00 Corvette). The air temperature sensor (IAT / ATS) connector uses the standard Delphi Metri-Pack 150 Series connector found on the majority of GM vehicles.

MAF-003

Connector terminal designations:

5-Wire Connector3-Wire ConnectorTwo-Wire ConnectorWire ColorFunction
A

-
Violet
Low Reference
B

-
Tan
IAT Sensor Signal
C
B
-
Black/White
Ground
D
C
A
Pink

Ignition Voltage +
E
A
B
Yellow
Mass Air Flow Signal

This product was added to our catalog on Thursday 04 August, 2022.
