C6 Corvette Custom LS2/LS3 Chrome Coil Covers w/Billet Anodized Fuel Rail Package

Upgrade the look of your C6 Corvette Engine Bay with Race Inspired Billet Coil Covers and Anodized Billet Fuel Rails.

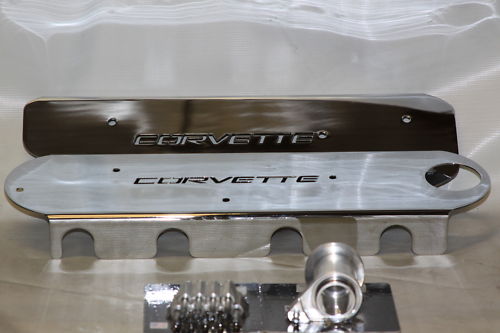

CBM custom designed coil covers for C5/C6 Corvette with billet fuel rails. These covers are laser cut for precise fit and chrome plated for extreme durability. This set of covers Comes with the Corvette logo and are cut for Corvette style front accessories and firewall clearance. All hardware including billet aluminum filler neck and o-ring are included for complete installation. Covers can be powder coated candy over chrome plating for a unique appearance or left as chrome. Backing plates are also provided (to install behind the Corvette logo) and can be painted to match the vehicle. Again, this auction is for Corvette style valve covers found on most LS1, LS2, LS3, and LS6 vehicles.

As seen in the pictures they must be run with billet style fuel rails. The covers are also available in a raw finish if they need to be modified or if you would like them powder coated instead.

Includes:
-6AN 90 Deg. to -6AN 90 Deg. Fittings 12" Braided Stainless Steel Crossover, Color: Steel Fittings

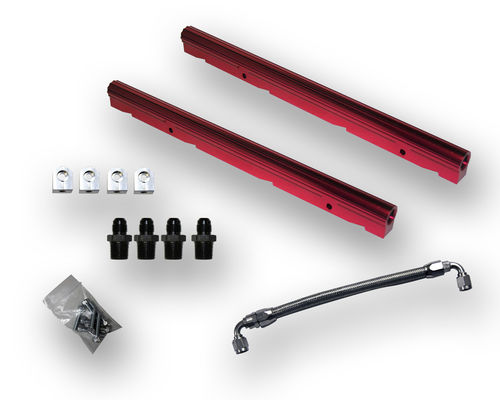

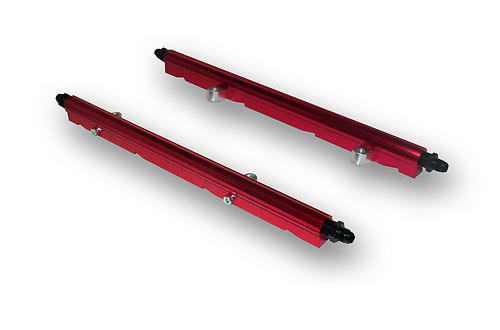

CBM BILLET FUEL RAIL KIT
CBM High Flow, Billet Fuel Rails combine 1,800 HP flow capabilities with “bolt-on” ease of installation.

• Fits GM LS2, LS3 - Rails Only
• 3/8" NPT Ports with compact connections and positive, leak-free sealing.
• Full 1/2” ID through bore, capable of supporting up to 1,800 HP.
• Full size ports at each end for optimal injector supply and minimal hydraulic fluctuation.
• Additional inlet/outlet ports are provided where required for plumbing convenience.
• CNC-machined, billet aluminum construction for unequaled fit and finish.
• Billet stand off mounting brackets, custom engineered for each application, combining a solid, durable    mounting platform with correct fit and “bolt-on” ease of installation.
• Red, Blue, Black Or Polished Silver Finish, Type II bright dip anodized finish that looks great and protects against corrosion.

Optional:

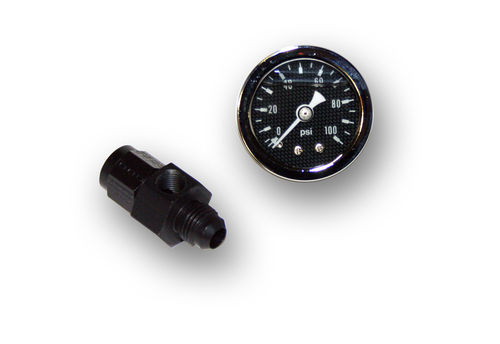

6AN TO -6AN FITTING WITH INLINE FUEL PRESSURE GAUGE 0-100psi

Color: Black Anodized (fitting)
Color: Chrome (gauge)
Face: Carbon Fiber Like (gauge)
