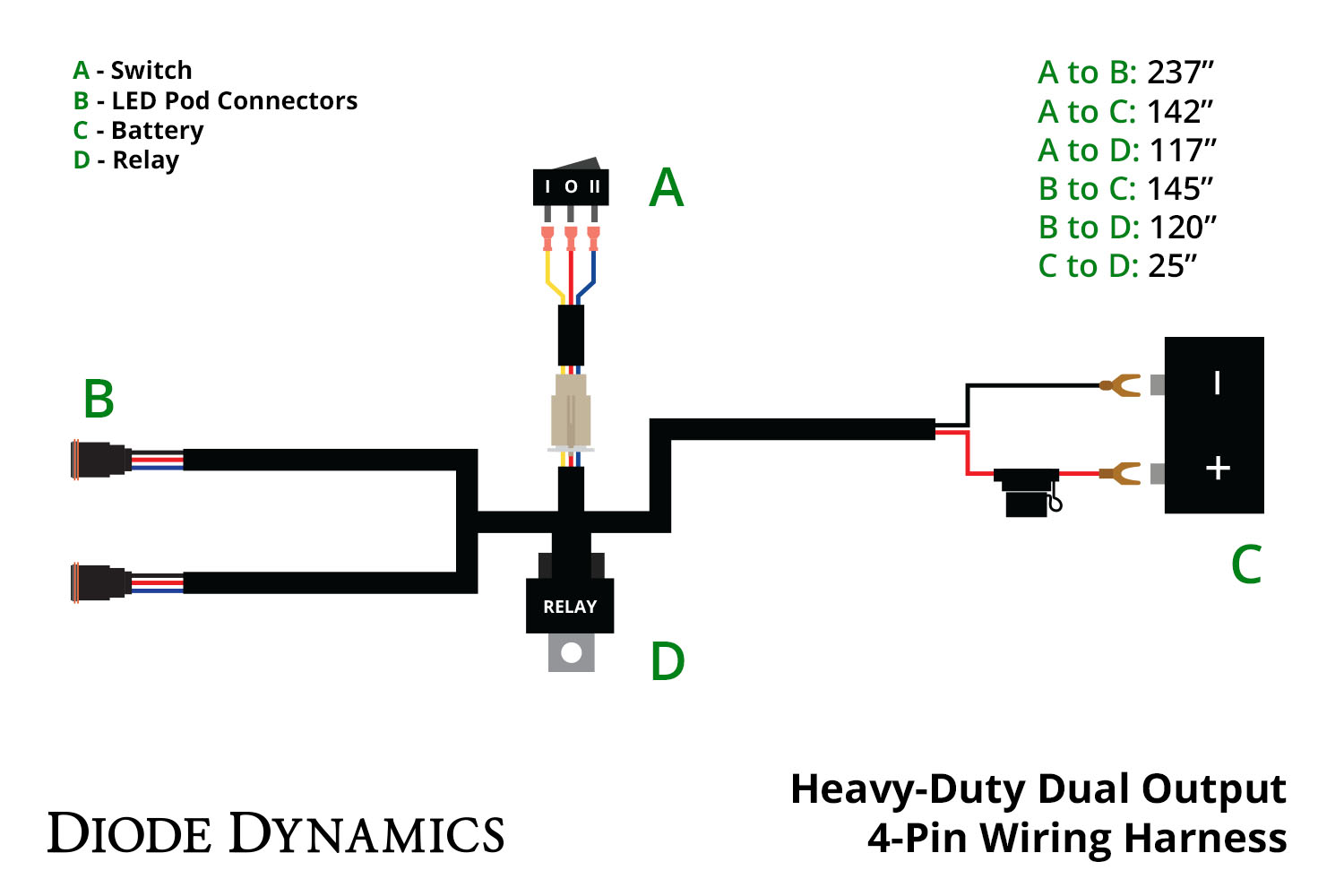

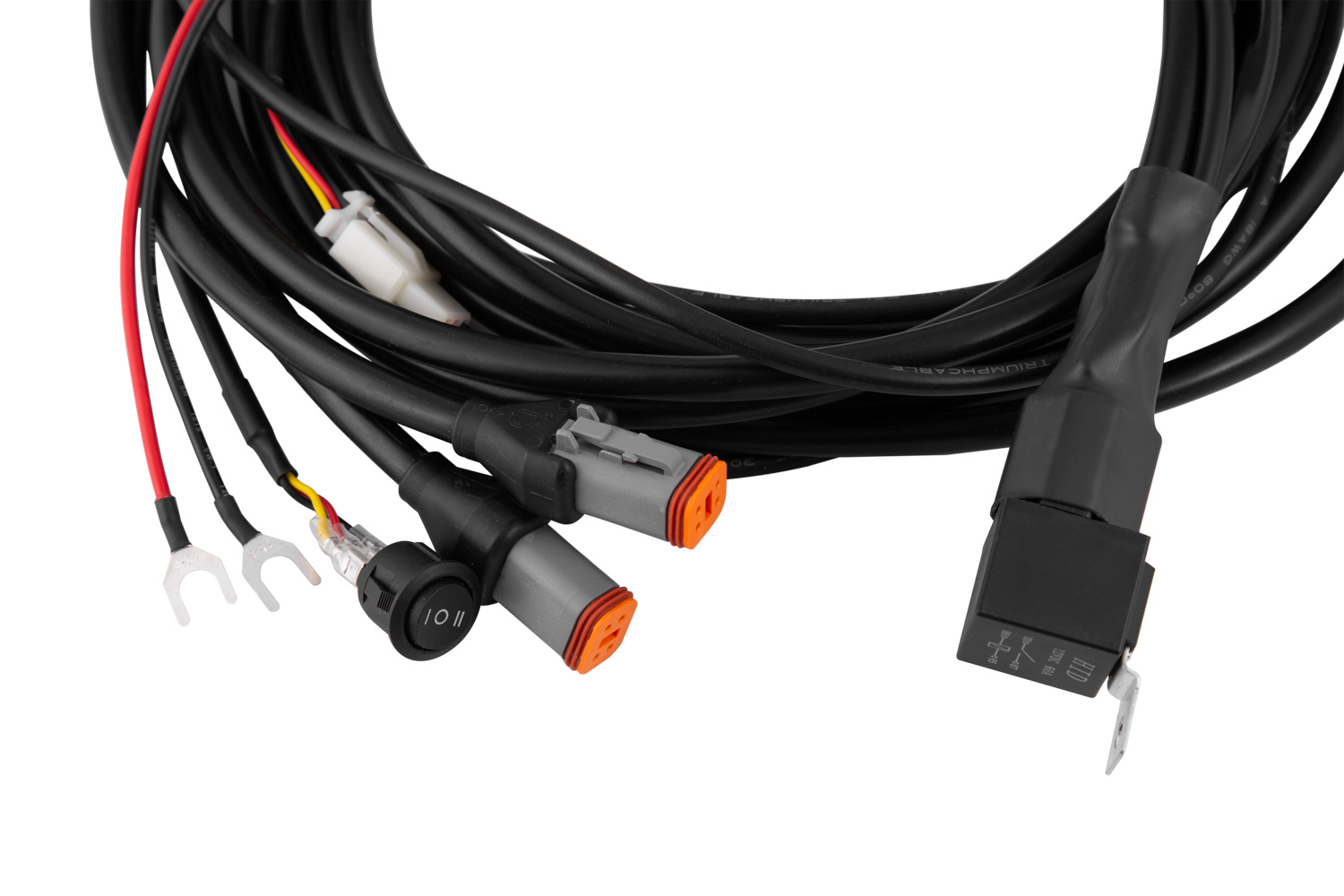

Heavy Duty Dual Output 3-way 4-pin Wiring Harness

Stage Series. This harness is intended to be used with our Stage Series pods with backlight functionality. This harness connects directly to your vehicle's battery and allows you to power your offroad lighting.

It features a three-way switch to toggle between the backlight off and the main beam. This harness uses high capacity 14AWG wiring and Deutsch DT connectors for simple plug-and-play installation.

Experience. After over a decade in business Diode Dynamics is the most trusted name in automotive LED lighting. Unlike all other LED distributors we assemble and engineer products in the United States for high quality and fast time-to-market of the newest and brightest LED technologies.

We pride ourselves in offering only quality LED products that will exceed your expectations.

Features

• Powers up to two Diode Dynamics LED pods with backlight functionality.
• Connects directly to the battery to power your LED pods.
• High capacity 14AWG wiring.

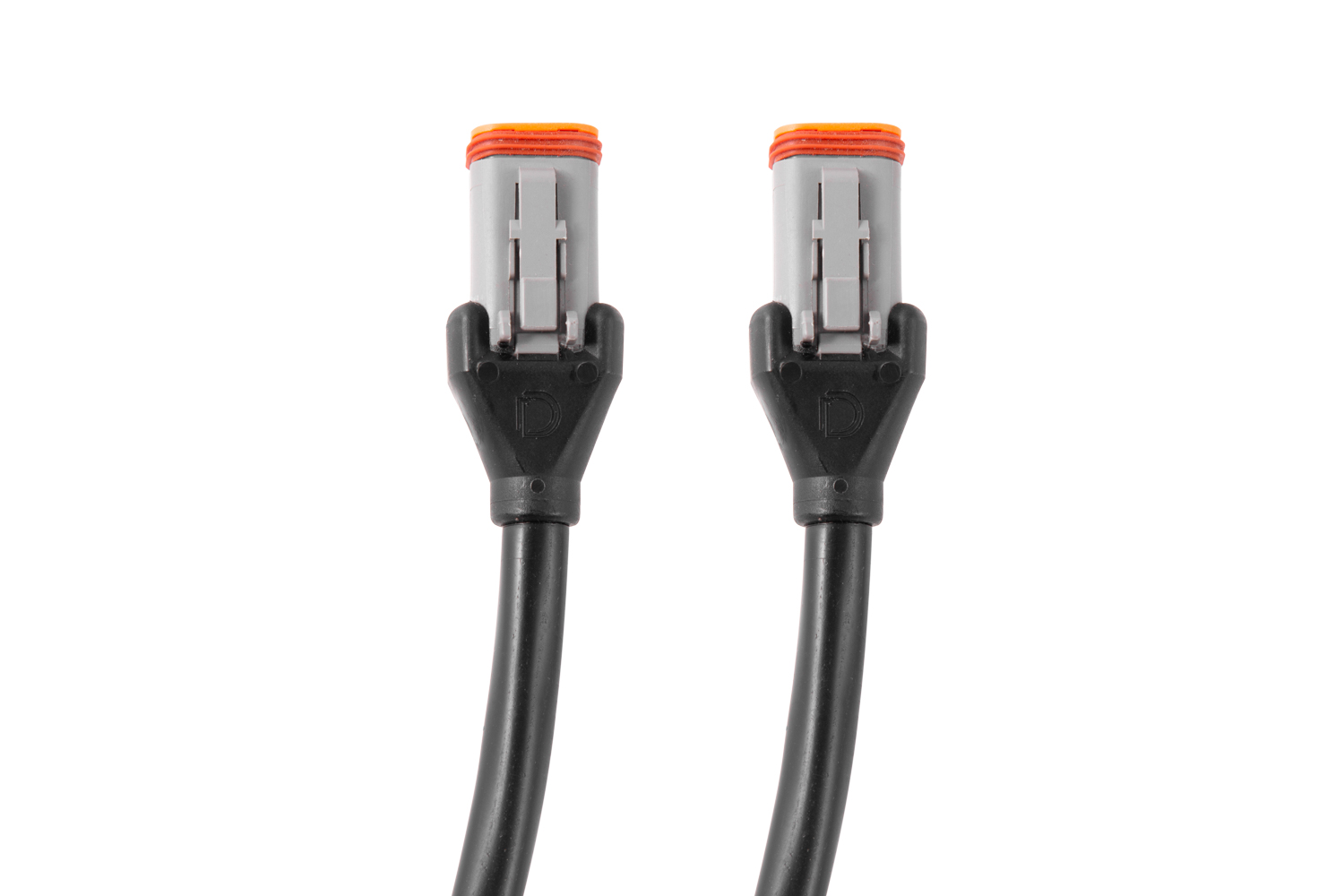

• Dual Deutsch DT output connectors.
• Powers up to 8A per output cable.
• 30A waterproof fuse and 60A 12V relay to safeguard the electrical systems in your pods.
