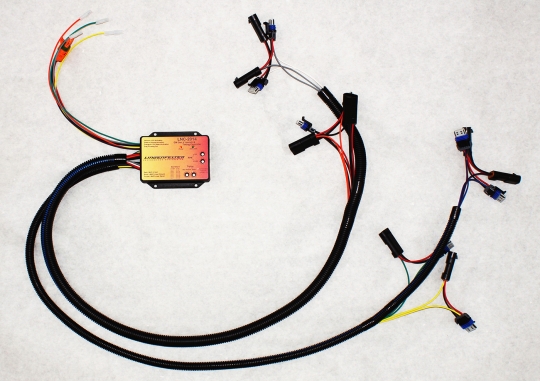

LNC-2014 Lingenfelter Adjustable RPM Limiter & Timing Retard Controller For GM Gen V Direct Injection V8 Engines LT4, LTI, L86, L83. Adjustable RPM limiter and timing retard controller can be used to provide consistent launch RPM off the line in drag racing and other standing start racing applications. In turbocharged applications the LNC-2014 can also be used to retard the timing to build more boost at the line.
LNC-2014 can also be used as an adjustable individual cylinder RPM limiter, providing reliable and fast acting spark based engine RPM limit control. This is especially useful in vehicles that have auxiliary fuel control systems where it is not possible to make sure that both the factory ECM/PCM and the auxiliary systems both turn off fuel at the same time. If the two dont completely cut fuel at the same time you will run lean when the one system cuts off the injectors, risking severe engine damage.
The RPM limiter function of the LNC-2014 acts by disabling spark to individual cylinders and not fuel like most production RPM limiters so the 2-Step/Launch Control function is not meant for use on the street or for use on cars equipped with catalytic converters. The 2-Step/Launch Control function of the LNC-2014 is only for use at the race track on race vehicles not equipped with catalysts. Failure to follow these precautions can result in premature catalyst failure. DO NOT operate the engine with the LNC-2014 RPM limit active for extended periods of time. Due to the raw fuel in the exhaust when the RPM limit is active, a risk of backfiring exists if you do so.
LNC-2014 Lingenfelter Adjustable RPM Limiter & Timing Retard Controller For GM Gen V Direct Injection V8 Engines LT4, LTI, L86, L83
Specifically designed for 2014 and newer GM Gen V direct injection V8 engine equipped vehicle applications, including:
2014-2019 Corvette LTI engine
2015-2019 Z06 Corvette LT4 engine
2014-2019 Silverado L83 and L86 engines
2014-2019 Sierra L83 and L86 engines
2015-2019 Escalade, Tahoe, Suburban, Yukon, and Yukon XL L83 and L86 engines
Custom molded high temperature glass filled Nylon 6 enclosure with direct access to the controller settings without requiring removal of a cover or access panel
40 MHz 16-bit automotive qualified processor with eight channel Enhanced Time Module
Each coil drive circuit has a dedicated timer to keep the timing accurate over the full RPM range
Independent coil drive provides Sequential Ignition Kill when RPM limiting is active
Reverse battery protection
Both of the activation inputs have active clamps and optical isolation to suppress electrical noise from externalsolenoids such as trans brake and line lock
Digital noise filtering to isolate the LNC from unwanted electrical signals
Separate RPM x100, RPM x1000, Max Retard and Rate switches for easy setting adjustments
RPM limiter activation point can be adjusted from 1,500 to 9,900 RPM in 100 RPM increments
Both Ground Activation and +12 Volt Activation inputs are provided for RPM limit activation
Timing retard capability with up to 15 degrees of timing retard authority
Dedicated timing retard trigger input wire for nitrous activation or other timing retard activation
GM 3 bar manifold air pressure MAP sensor connector for boost based timing retard function
Analog input for external timing retard control
Davis Technologies traction control module
Accepts analog voltage signal from LPE NCC nitrous controllers to allow progressive timing retard
Analog voltage output wire for sending timing retard information to data acquisition systems EFILive, HPTuners, DashDAQ, etc.
True plug-and-play coil pack connection design for ease of installation and removal
Fully encapsulated potted construction for added durability
One year warranty from date of purchase .
