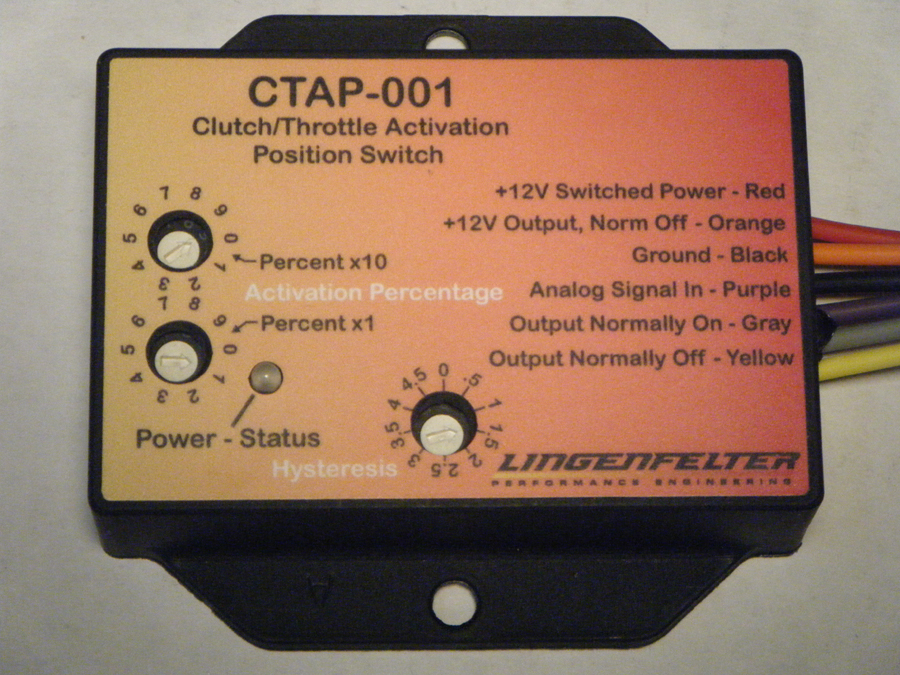

Lingenfelter Clutch & Throttle Position Activation Switch CTAP, Corvette and Others

The CTAP-001 is a programmable clutch pedal and throttle position sensor activation switch. This module can be used on many newer GM vehicles that no longer use a clutch position switch, but instead a position sensor that relays a rising or falling 0-5 volt sensor signal to the ECM. This signal communicates the exact clutch pedal position, accelerator pedal position, or throttle position. The CTAP-001 allows external devices looking for a +12 volt or ground activation signal like a nitrous controller, 2-step, or other devices to be used on vehicles that communicate the position.

Features:
• Connects to clutch pedal, accelerator pedal or throttle position sensor on newer vehicles
• Outputs include
• Normally OFF ground activation
• Normally ON ground activation
• Normally OFF +12vdc activation

Benefits:
• No need to install a separate microswitch on the clutch pedal
• Works with rising or falling voltage signals
• Activate/deactivate anywhere in the clutch or throttle travel
• Adjustable activation point in 1% increments
Specifications:
• High temperature glass filled Nylon enclosure
• NCC-001 & NCC-002 do not need the CTAP-001 since the NCC has the same capability built in

Click image for product instructions
