4150 Stinger 2 Dry Race System Braided Hoses .178 Trashcan Nitrous Solenoid Univ

Innovation, Part 2:The Stinger 2 is the only actual upgrade over its predecessor in the hugely successful Stinger Nitrous Plate lineup and is based on the ideology that nitrous plates are not one-size-fits-all.

It is designed to saturate the incoming air flow by placing the discharge cone at the top of the intake throat while discharging the nitrous horizontally across the intake plenum in a 360 degree pattern.

Design: The Stinger 2 is a single-entry nitrous plate that provides a max flow of 634hp. The nitrous discharge is horizontal and will mix into the air stream allowing the engine vacuum to pull it into the cylinder. This is a perfect plate for intake manifolds that do not have a tall deck height from the top of the runner to the carburetor flange.

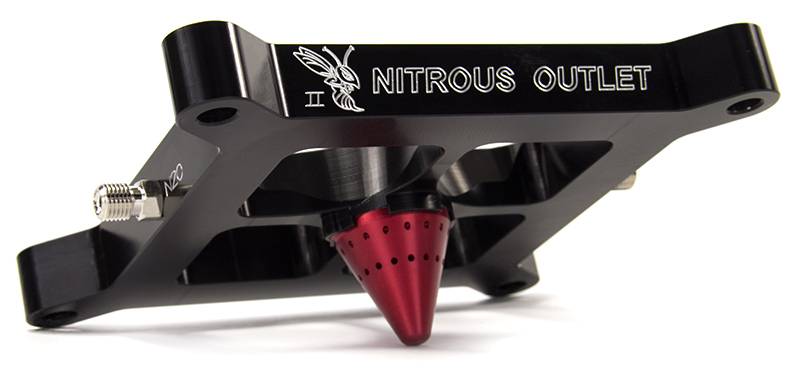

Construction: The 4150 plate and cone are manufactured from 6061 billet aluminum. The nitrous plate is .75 Inch thick and black anodized with engraved Nitrous Outlet logos and Fuel / N2O entry marking. The cone is anodized red and features 16 nitrous discharge holes. Premium gaskets are included as well as Jetting for 50-100-150-200-250-300-350-400-450-500-550-600 horsepower shots. This is a dry race system and utilizes a .178 nitrous solenoid. Braided stainless hoses are included to connect the solenoids to the plate, as are universal solenoid brackets.

Application: The Stinger 2 is designed to saturate the intake plenum with a 360 degree discharge pattern. We suggest using the Stinger 2 plate with intake manifolds that measure 1 3/4 Inch or less from the top of the intake runner to the carburetor flange.

Details:

• Stinger 2 Race Dry 4150 Nitrous Plate System
• 10Lb Bottle
• 634 HP Max Flow
• Single Entry
• 4150 Flange
• 360 degree Discharge Pattern
• Precise Atomization
• Anodized Billet Aluminum Stinger Plate
• Gasket, Jetting and Hardware Included
• Nitrous Jetting for 50-600hp
