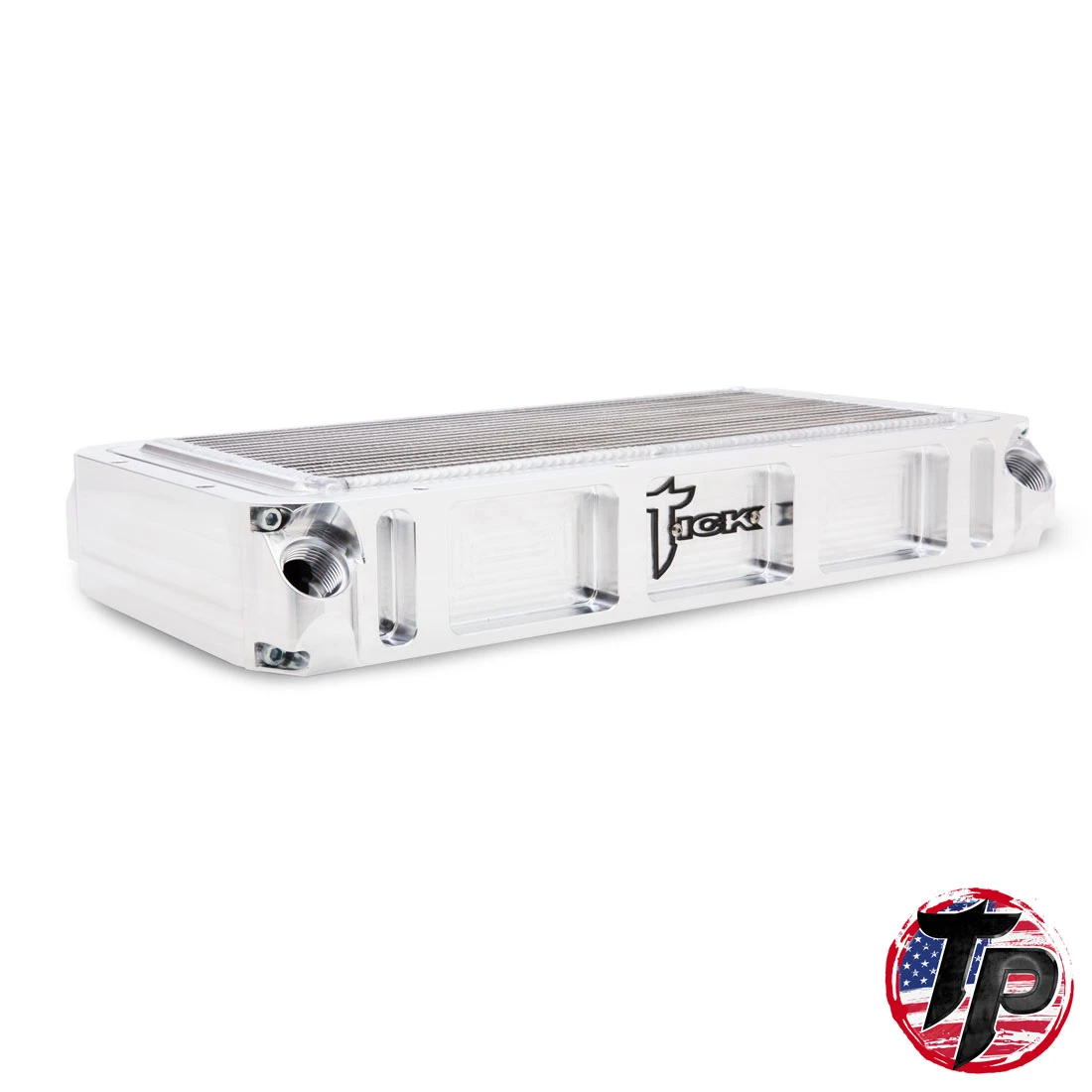

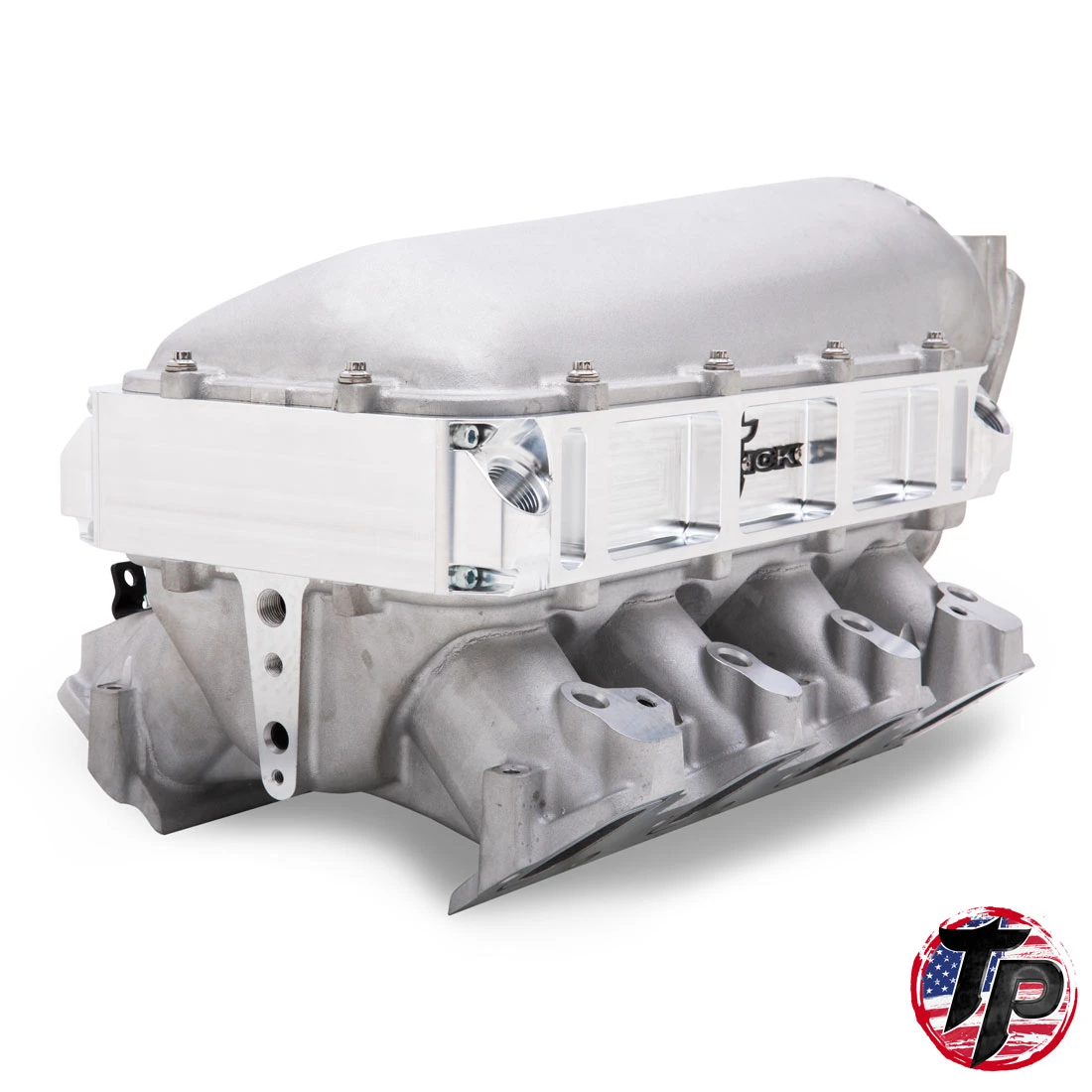

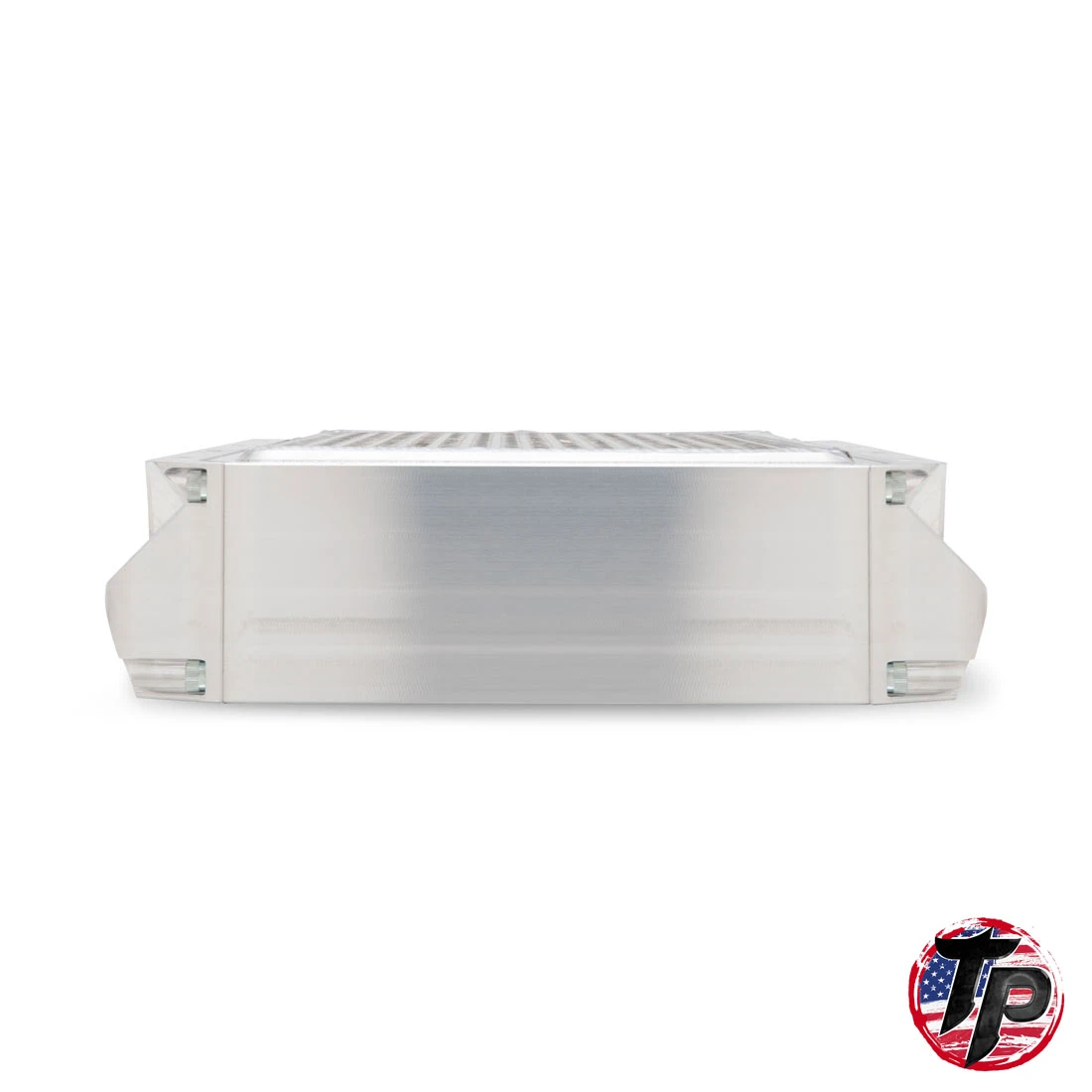

1,500hp Compact Air-to-Water Intercooler and GM Holley Ram Intakes
With our Air-to-Water Intercooler being a top seller it only made sense to offer it as a discounted combo package. This makes it easier for you to select which Holley Hi Ram or Lo Ram Manifold you want to run on your setup.
Specs
-
Supports up to 1,500hp
-
USA made core
-
4 Female -12 AN O-ring female inlet/outlets
-
Billet 6061-T6 aluminum construction
-
Includes top quality mounting hardware and O-ring sealing
Overall Heights
-
Overall Thickness 2.75"
-
Holley LS Hi-Ram Total Without Intercooler 12.32"
-
Holley LS Low-Ram Total Without Intercooler 9.07"
Combo Heights*
- Holley LS Lo-Ram With Intercooler 11.82"
- Holley LS Hi-Ram Total With Intercooler 15.07"
*Note: The total heights reference the front, top of the front-feed ram intakes. These are the peak heights, and the rear of the intakes slop down to be slightly shorter at the rear.
Option Guide: Which Holley manifold do I need?
The Holley Hi Ram & Low Ram is offered for various combinations. We have listed every manifold offered so you will need to select the manifold that is appropriate for your engine and cylinder head combo. If you need help choosing which manifold is best please don't hesitate to contact our friendly sales staff for assistance. The Gen V LT Low Ram may require the lower portion to be machined to clear our intercooler. Please see picture below.
![]()
***Please note that we do not recommend coating our intercooler with any form of coating that requires high temperature curing.***
Looking For A Water Pump? Check out our recommended pump and completion kits.
Option — Choose Manifold: (Required): Holley Hi-Ram Intake for LS1/LS2/LS6 Cathedral Port EFI for 1 x 92MM Throttle Body#300-122 (+$359.18); Holley Hi-Ram Intake for LS1/LS2/LS6 Cathedral Port EFI for 1 x 92MM Throttle Body - Black Ceramic Coating#300-122BK (+$454.18); Holley Hi-Ram Intake for LS1/LS2/LS6 Cathedral Port EFI for 1 x 105MM Throttle Body#300-123 (+$454.18); Holley Hi-Ram Intake for LS1/LS2/LS6 Cathedral Port EFI for 1 x 105MM Throttle Body - Black Ceramic Coating#300-123BK (+$501.68); Holley Lo-Ram Intake for LS1/LS2/LS6 Cathedral Port EFI for 1 x 105MM Throttle Body #300-620 (+$264.18); Holley Lo-Ram Intake for LS1/LS2/LS6 Cathedral Port EFI for 1 x 105MM Throttle Body - Black Ceramic Coating #300-620BK (+$311.68); Holley Dual Injector Lo-Ram Intake for LS1/LS2/LS6 Cathedral Port EFI for 1 x 105MM Throttle Body #300-624 (+$359.18); Holley Dual Injector Lo-Ram Intake for LS1/LS2/LS6 Cathedral Port EFI for 1 x 105MM Throttle Body - Black Ceramic Coating #300-624BK (+$454.18); Holley Hi-Ram Intake for LS3/L92 Square Port EFI for 1 x 92MM Throttle Body #300-116 (+$359.18); Holley Hi-Ram Intake for LS3/L92 Square Port EFI for 1 x 92MM Throttle Body - Black Ceramic Coating #300-116BK (+$454.18); Holley Hi-Ram Intake for LS3/L92 Square Port EFI for 1 x 105MM Throttle Body #300-117 (+$454.18); Holley Hi-Ram Intake for LS3/L92 Square Port EFI for 1 x 105MM Throttle Body - Black Ceramic Coating #300-117BK (+$501.68); Holley Lo-Ram Intake for LS3/L92 Square Port EFI for 1 x 105MM Throttle Body #300-679 (+$169.18); Holley Lo-Ram Intake for LS3/L92 Square Port EFI for 1 x 105MM Throttle Body - Black Ceramic Coating #300-679BK (+$216.68); Holley Dual Injector Lo-Ram Intake for LS3/L92 Square Port EFI for 1 x 105MM Throttle Body #300-683 (+$359.18); Holley Dual Injector Lo-Ram Intake for LS3/L92 Square Port EFI for 1 x 105MM Throttle Body - Black Ceramic Coating #300-683BK (+$454.18); Holley Hi-Ram Intake for LS7 Rectangle Port EFI for 1 x 92MM Throttle Body #300-124; Holley Hi-Ram Intake for LS7 Rectangle Port EFI for 1 x 92MM Throttle Body - Black Ceramic Coating #300-124BK (+$416.68); Holley Hi-Ram Intake for LS7 Rectangle Port EFI for 1 x 105MM Throttle Body #300-125 (+$501.68); Holley Hi-Ram Intake for LS7 Rectangle Port EFI for 1 x 105MM Throttle Body - Black Ceramic Coating #300-125BK (+$462.68); Holley Hi-Ram Intake for GEN V LT1 w/ Port Injection EFI for 1 x 105MM Throttle Body #300-140 (+$462.68); Holley Hi-Ram Intake for GEN V LT1 w/ Port Injection EFI for 1 x 92MM Throttle Body #300-141 (+$416.68); Holley Hi-Ram Intake for GEN V LT1 w/o Port Injection EFI for 1 x 105MM Throttle Body #300-142 (+$324.68); Holley Hi-Ram Intake for GEN V LT1 w/o Port Injection EFI for 1 x 92MM Throttle Body #300-143 (+$232.68); Holley Lo-Ram Intake for GEN V LT1 w/ Port Injection EFI for 1 x 105MM Throttle Body #300-718 (+$216.68); Holley Lo-Ram Intake for GEN V LT1 w/ Port Injection EFI for 1 x 105MM Throttle Body - Black Ceramic Coating #300-718BK (+$264.18); Holley Lo-Ram Intake for GEN V LT1 w/o Port Injection EFI for 1 x 105MM Throttle Body #300-715 (+$121.68); Holley Lo-Ram Intake for GEN V LT1 w/o Port Injection EFI for 1 x 105MM Throttle Body - Black Ceramic Coating #300-715BK (+$216.68) | COLOR/SIZE VARIATION — Select Intercooler Finish: (Required): Raw Billet (Standard); Anodized Black ($300) - Made To Order - ETA 3 Weeks | Option — Add Throttle Body?: (Required): No; Yes, Nick Williams 103mm Cable Driven Throttle Body #SD103CABLE (+$402.79); Yes, Nick Williams 103mm Cable Driven Throttle Body Black #SD103CABLEBK (+$421.79); Yes, Nick Williams 103mm DBW Throttle Body #SD103 (+$655.49); Yes, Nick Williams 103mm DBW Throttle Body Black #SD103BK (+$679.24); Nick Williams 103mm DBW Throttle Bodies for Gen V LTX #SD103LTX (+$655.49); Nick Williams 103mm DBW Throttle Bodies for Gen V LTX Black #SD103LTXB (+$679.24); Holley EFI Billet Throttle Body 105mm with Tapered Bore for LS Engines Black #112-581 (+$702.95); Holley EFI Billet Throttle Body 105mm without Tapered Bore for LS Engines Black #112-583 (+$702.95); Motion Raceworks ICON 102mm / 105mm Interchangeable Throttle Body#10-140-1 (+$435.53); Motion Raceworks ICON 102mm / 105mm Interchangeable Throttle Body Black#10-140BLK-1 (+$435.53); Motion Raceworks ICON 102mm / 105mm Clockable Mechanical Linkage Interchangeable Throttle Body#10-160 (+$435.53); Motion Raceworks ICON 102mm / 105mm Clockable Mechanical Linkage Interchangeable Throttle Body Black#10-160BLK (+$435.53) | Option — Add Motion Raceworks Throttle Body Attachment?: (Required): No; Ultra Grip 4" "Standard" Coupler Flange for ICON 102mm Throttle Body - BARE #10-14009; Ultra Grip 4" "Standard" Coupler Flange for ICON 102mm Throttle Body - BLACK #10-14009BLK; 3" V-Band w/ Quick Release Clamp / Weld Flange for ICON 102mm Throttle Body - BLACK #10-14006BLK-1 (+$199.49); 3.5" V-Band w/ Quick Release Clamp / Weld Flange for ICON 102mm Throttle Body - BLACK #10-14006BLK-2 (+$199.49); 4" V-Band w/ Quick Release Clamp / Weld Flange for ICON 102mm Throttle Body - BLACK #10-14006BLK-3 (+$199.49); Billet 'Y' Connection Dual 35° w/ Built in 3" Quick Seals for ICON 102mm Throttle Body - BARE #10-14016 (+$645.99); Billet 'Y' Connection Dual 35° w/ Built in 3" Quick Seals for ICON 102mm Throttle Body - BLACK #10-14016BLK (+$645.99); Billet Dual 'T' 180° w/ 3" Quick Seal for ICON 102mm Throttle Body - BARE #10-14013 (+$645.99); Billet Dual 'T' 180° w/ 3" Quick Seal for ICON 102mm Throttle Body - BLACK #10-14013BLK (+$645.99); Billet Y Connection Dual 35° w/ Built in 3" V-Bands for ICON 102mm Throttle Body - BLACK #10-14008BLK (+$521.55); High Flow 90° Tight Radius 4" Quick Seal Attachment for ICON 102mm Throttle Body - BARE #10-14017 (+$588.05); High Flow 90° Tight Radius 4" Quick Seal Attachment for ICON 102mm Throttle Body - BLACK #10-14017BLK (+$588.05); High Flow 90° Tight Radius 4" V-Band Attachment for ICON 102mm Throttle Body - BLACK #10-14011BLK (+$484.49); Quick Seal 3" Connector w/ Clamp for ICON 102mm Throttle Body - BARE #21-14005-1 (+$217.55); Quick Seal 3" Connector w/ Clamp for ICON 102mm Throttle Body - BLACK #21-14005BLK-1 (+$217.55); Quick Seal 3.5" Connector w/ Clamp for ICON 102mm Throttle Body - BARE #21-14004-1 (+$217.55); Quick Seal 3.5" Connector w/ Clamp for ICON 102mm Throttle Body - BLACK #21-14004BLK-1 (+$217.55); Quick Seal 4" Connector w/ Clamp for ICON 102mm Throttle Body - BARE #10-14012 (+$217.55) | Option — Add Lokar Throttle Cable?: (Required): No; Yes, add 36" Stainless Steel Cable w/ Black Fittings #XTC-1000LS1 (+$94.99); Yes, add 48" Stainless Steel Cable w/ Black Fittings #XTC-1000LS148 (+$105.99); Yes, add 36" Black Cable w/ Black Fittings #XTC-1000LS1U (+$82.99); Yes, add 48" Black Cable w/ Black Fittings #XTC-1000LS1U48 (+$94.99) | Option — Include Throttle Cable Bracket for Inverted Throttle Body?: (Required): No; Yes #TCKIC-1101A (+$24.99) | Option — Include Intercooler Plugs?: (Required): Include Intercooler AN Plugs x2 $33.99 (PN TP481312); Do Not Include Plugs | Option — Include One Piece Holley Base O-Ring?: (Required): No; Yes #TPHLYOR-01 (+$39.99) |
