TSP Velocity LS1/LS6 Angled Low Profile Induction Kit, Corvette, Camaro and others, CABLE Drive
$560.00

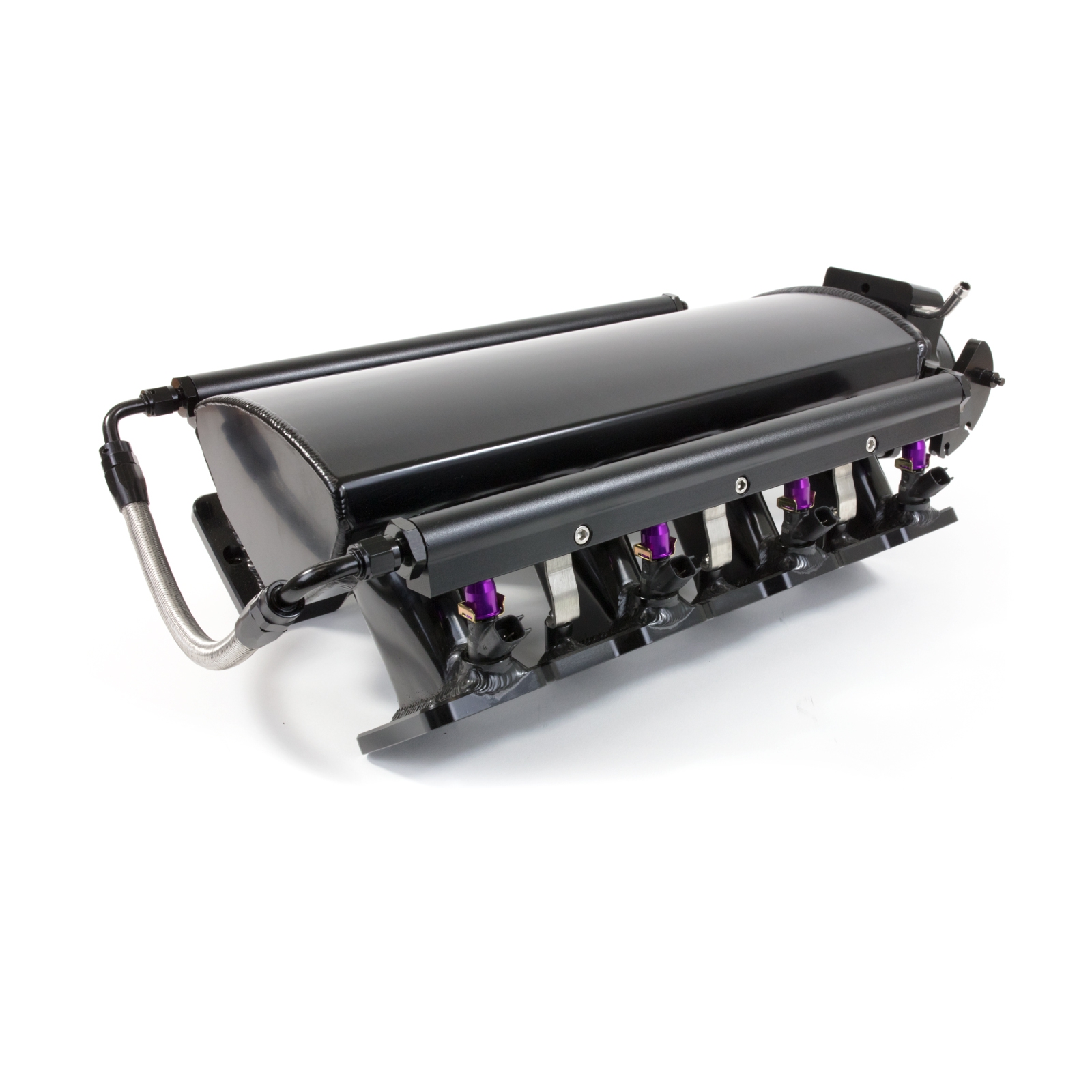

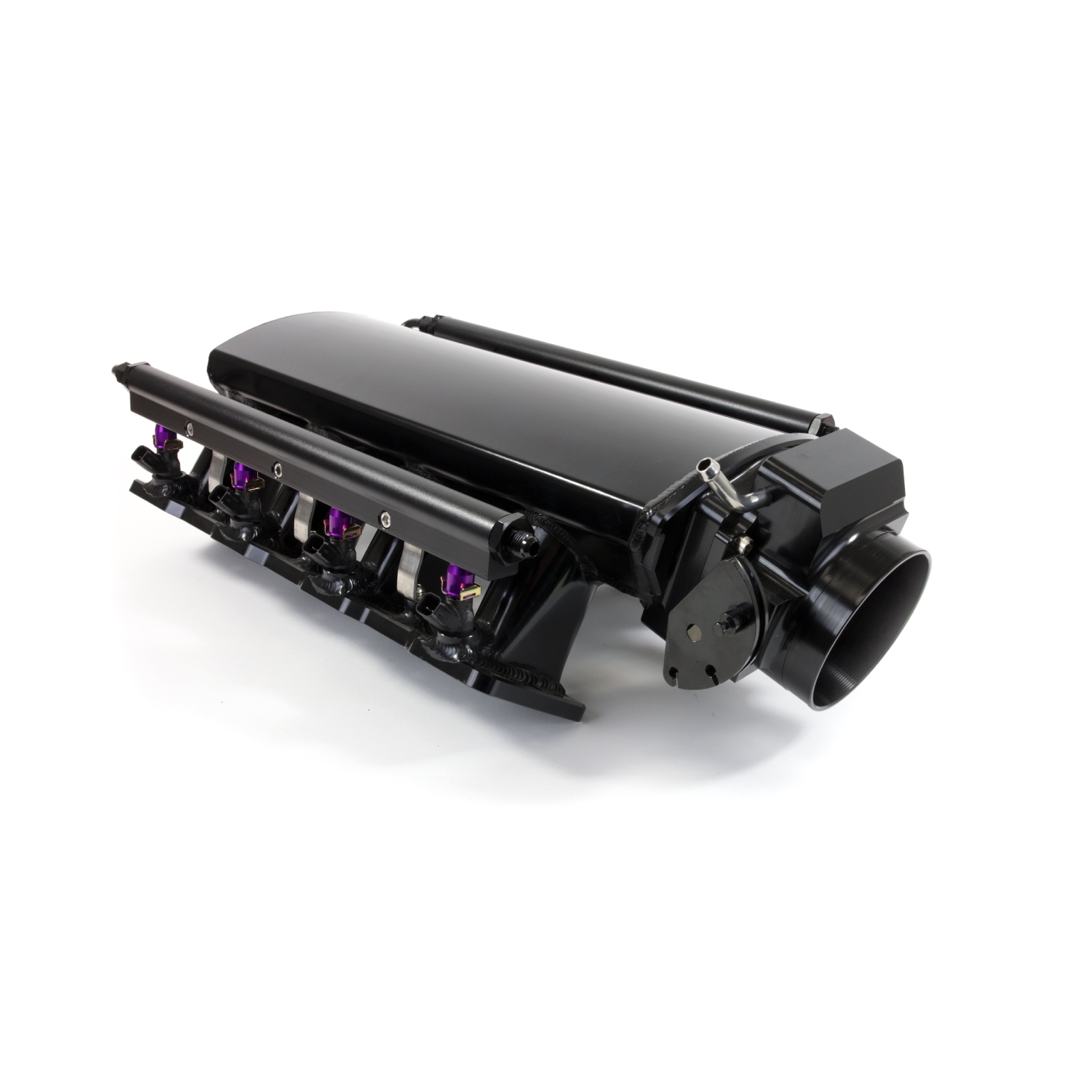

If you're swapping an LS into a muscle car, or upgrading the engine in your late model 'Vette, look no further. TSP's Velocity all-in-one induction kits have everything you need for air and fuel delivery - all designed for elite performance. The kit includes a fabricated aluminum sheet metal intake manifold, billet aluminum high-pressure fuel rails, and optional large-opening throttle body, high-flow fuel injectors, and 3 bar MAP sensor.

Intake Manifold
TSP's Velocity fabricated intake features a 102mm throttle body opening for maximum air flow. The runners are velocity stacked, allowing air to move more smoothly at high velocities. The manifold is constructed of 3.5mm thick T-6061 aluminum and is TIG welded to ensure consistent strength and performance. Individual port o-rings guarantee a good seal with the cylinder heads and throttle body.
Available in black and clear anodized.
| Injection Style |
Multi-port |
| Throttle Body Bore Size |
102mm |
| Throttle Body Bolt Pattern |
Standard OE 4-Bolt Pattern |
| Throttle Body Flange Angle |
7° |
| Flange Material |
T-6061 Billet Aluminum |
| Plenum Thickness |
3.5mm |
| Plenum Material |
T-6061 Sheet Aluminum |
| Vacuum Ports |
NPT 1/8 x 3 and NPT 1/4 x 1 |
| Overall Height |
6 3/4" |
| Included |
Port O-Rings and Hardware |
Fuel Rails
With the custom design of our fabricated intake manifolds, you will need a set of our billet aluminum fuel rails. They have been designed to support high-pressure fuel systems in high horsepower applications and come complete with -8AN fittings, mounting hardware, and a durable, braided middle pipe.
Available in black and silver.
| Injection Style |
Multi-port |
| Fuel Rail Type |
Custom TSP Design |
| Fittings |
-8AN |
| Crossover Pipe Included |
Yes |
| Fuel Rail Material |
Billet Aluminum |
| Included |
Fittings and Mounting Hardware |
Throttle Body
Featuring a CNC-machined aluminum housing, this large throttle body provides maximum airflow for mid-to-high horsepower engines. Combined with a TSP Velocity intake manifold, this will give your street or strip car a cosmetic and performance boost guaranteed to turn heads.
Available in black and silver with 92mm and 102mm openings.
| Throttle Style |
Drive by Cable |
| Throttle Body Bolt Pattern |
Standard OE 4-Bolt Pattern |
| Throttle Body Material |
Billet Aluminum |
| Venturi Quantity |
1 |
| Idle Air Control Motor |
GM #17113598 |
| Idle Air Control Motor Included |
No |
| Throttle Position Sensor |
GM #17123852 |
| Throttle Position Sensor Included |
No |
| Included |
Mounting Bolts |
Injectors
TSP Velocity high-flow fuel injectors are made in the USA, assembled with top-quality parts and trusted techniques. They are guaranteed to deliver the needed amount of fuel with precision and reliability. The 81050 injector is designed to fit our LS1/LS2/LS6 and Coyote 5.0L Velocity intakes and rails.
Available with flow rates of 36, 52, 61, and 80 lbs/hr.
| IMPEDANCE |
High |
| DRIVER TYPE |
12V Saturated Circuit |
| SEAT TO SEAT HEIGHT |
2.550" Center O-ring to Center O-ring |
| MANIFOLD O-RING DIAMETER |
0.551" OD |
| FUEL RAIL O-RING |
0.551" OD |
| INJECTOR PLUG STYLE |
USCAR |
| O-RINGS INCLUDED |
Yes |
| QUANTITY |
Set of 8 |

Fitment
CHEVROLET SMALL BLOCK V8 GEN. III/IV (LS-BASED)
- 4.8 L / 293 in3 (LR4)
- 5.3 L / 325 in3 (L33, L59, LM4, LM7)
- 5.7 L / 346 in3 (LS1, LS6)
- 6.0 L / 364 in3 (LQ4, LQ9, LS2)
NOTES
- Fits LS-based engines with "cathedral" intake port shape only
- Due to transverse engine configuration, fitment on LS4 would require significant modification
- Components may not be street legal in California, or states with comparable emission and modification laws.
Resources
Part Numbers
| 81001BK |
Black LS1/LS2/LS6 TSP Velocity Intake Manifold |
| 81001CA |
Clear Anodized LS1/LS2/LS6 TSP Velocity Intake Manifold |
| 81008BK |
Black LS1/LS2/LS6 TSP Velocity Fuel Rails |
| 81008SL |
Silver LS1/LS2/LS6 TSP Velocity Fuel Rails |
| 81012BK |
Black 102mm TSP Velocity Throttle Body |
| 81012SL |
Machined 102mm TSP Velocity Throttle Body |
| 81042BK |
Black 92mm TSP Velocity Throttle Body |
| 81042SL |
Machined 92mm TSP Velocity Throttle Body |
| 81013 |
TSP Velocity Throttle Cable Bracket |
| 81050-36 |
36 lbs/hr (.380 cc/min) TSP Velocity Fuel Injectors |
| 81050-52 |
52 lbs/hr (.550 cc/min) TSP Velocity Fuel Injectors |
| 81050-61 |
61 lbs/hr (.650 cc/min) TSP Velocity Fuel Injectors |
| 81050-80 |
80 lbs/hr (.850 cc/min) TSP Velocity Fuel Injectors |
|
