Holley GM LS3/L92 Modular Hi-Ram Intake Manifold, Corvette and others - BASE ONLY w/Fuel Rails

Holley GM LS3/L92 Modular Hi-Ram Intake Manifold, Corvette and others - BASE ONLY w/Fuel Rails
$723.95
Qty:

Add to Wish List

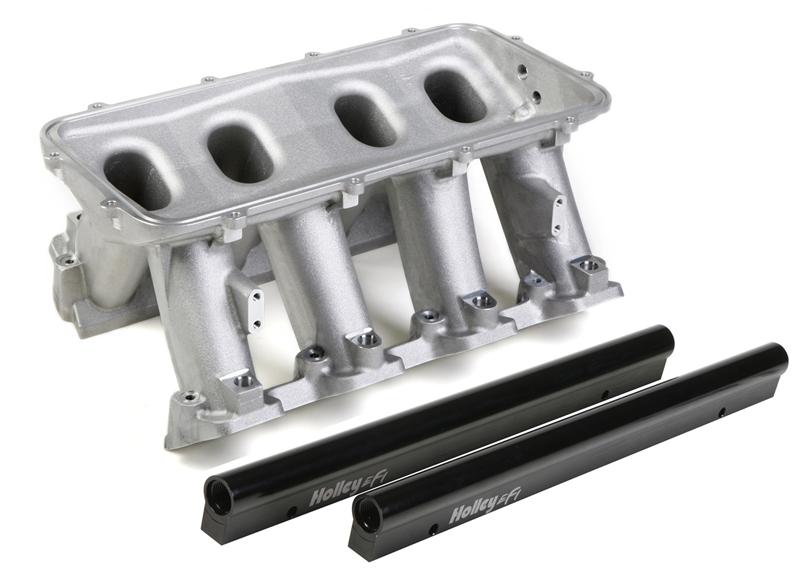

Hi-Ram Lower Manifold; LS3/L92 EFI Base; 3/32in Round O-Ring Viton 3in ID Flange Gasket; 3/32in Round O-Ring Cord Plenum Top Gasket  -> BASE ONLY with Fuel Rails

Year Make Model Cylinders Liters Fuel type Fuel Delievery Aspiration ENGINE Designation Notes
2007 - 2008 CADILLAC ESCALADE ALL ALL ALL ALL ALL ALL
2007 - 2008 CADILLAC ESCALADE ESV ALL ALL ALL ALL ALL ALL
2007 - 2008 CADILLAC ESCALADE EXT ALL ALL ALL ALL ALL ALL
2010 - 2015 CHEVROLET CAMARO V8 6.2 ALL ALL ALL ALL
2008 - 2013 CHEVROLET CORVETTE V8 6.2 ALL ALL ALL ALL
2014 - 2017 CHEVROLET SS ALL ALL ALL ALL ALL ALL
2008 - 2008 CHEVROLET TAHOE V8 6.2 ALL ALL ALL ALL
2007 - 2008 GMC SIERRA 1500 V8 6.2 ALL ALL ALL ALL
2007 - 2008 GMC YUKON V8 6.2 ALL ALL ALL ALL
2007 - 2008 GMC YUKON XL 1500 V8 6.2 ALL ALL ALL ALL
2008 - 2008 HUMMER H2 ALL ALL ALL ALL ALL ALL
2009 - 2009 PONTIAC G8 V8 6.2 ALL ALL ALL ALL

The Holley GM LS3/L92 Modular Hi–Ram Intake Manifold is introduced as a cost effective alternative to fabricated sheet–metal for high–performance applications where induction system height is not limited. Coupling this Hi–Ram intake with the high flowing LS3/L92 style cylinder heads has outstanding potential for N/A and forced induction applications at a budget–minded cost. Aggressive, bold, race–bred styling will make bad intentions clear for drag race, muscle car, marine, off–road, sandrails, pulling trucks, track, street–rod applications and more!

• The base is designed to be modular in configuration to accept a wide range of carbureted and EFI tops and to be attractive to builders and fabricators as the foundation for custom induction systems.

• Runner length and the tapered cross–section designed to perform well for a wide range of engine configurations

• EFI fuel rails are machined for –8AN O–ring Fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi–Ram kits.

• Cast aluminum construction.

• Intended for use on N/A or forced induction engines in the 6.0 to 7.0+ liter range, max power at 7000–8000+RPM.

Installation Notes
These parts should be used for the following applications: Racing/Performance/Street Rodder where hood restrictions are NOT a consideration. Top can be mounted forward or backward. Intake Manifold does NOT include 102mm GM LS Throttle Body.


Features

    Base Plenum Top Mounting Flange Height – 8.42” to the lifter valley cover flange on engine block.
    Total Height with 92/102mm EFI Plenum Top – 12.32” to the lifter valley cover flange on engine block.
    Port Size – 2.49” Height x 1.21” Wide
    Mounting Flange Gasket Type – Standard LS3 Molded O-Ring
    Plenum Top Gasket Type – 3/32” Round O-ring Cord
    Throttle Body Flange Location, with 92/102mm EFI Plenum Top : Height – 8.42” (from engine block lifter valley cover flange), Longitudinal Location – 3.84” (forward from engine block front flange), Angle – 25 deg. (down from vertical)
    Runner Length – 6.50”, As-Cast Runner Cross-Sectional Area – Tapered 4.25 in² to 2.77 in²

Technical Information




This product was added to our catalog on Monday 28 January, 2019.
