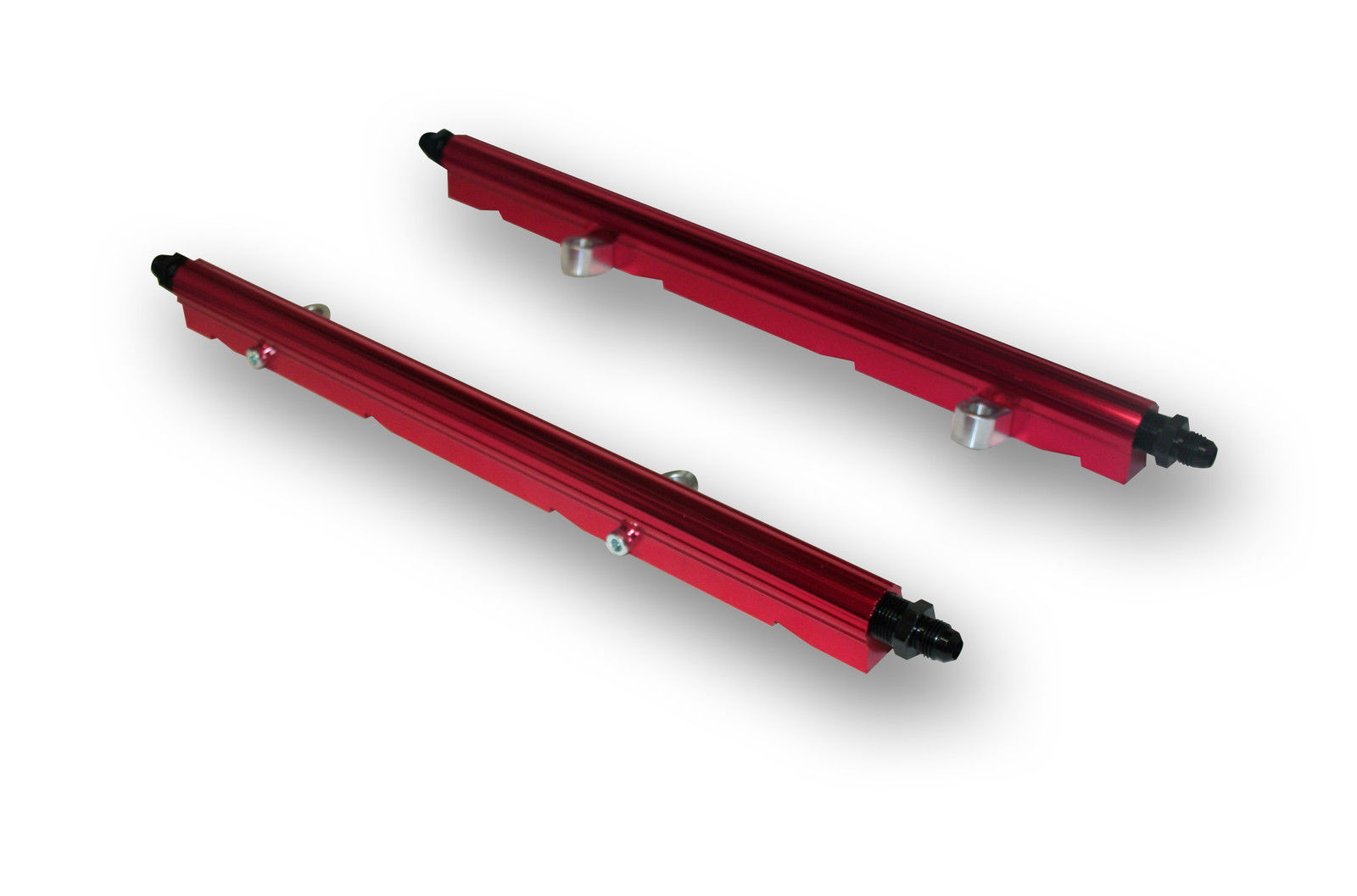

CBM Billet Fuel Rail Kit GM LS1, LS2, LS3, LS6, LS7 Red Anodized, Corvette, Camaro

CBM High Flow, Billet Fuel Rails combine 1,800 HP flow capabilities with “bolt-on” ease of installation.

• Fits LS1, LS6 or LS2, LS3, LS7 style manifolds.
• -8AN Ports with compact connections and positive, leak-free sealing.
• Full 5/8” ID through bore, capable of supporting up to 1,800 HP.
• Full size ports at each end for optimal injector supply and minimal hydraulic fluctuation.
• Additional inlet/outlet ports are provided where required for plumbing convenience.
• CNC-machined, billet aluminum construction for unequaled fit and finish.
• Bolt-on” ease of installation.
• Red type II bright dip anodized or chromed finish that looks great and protects against corrosion.

-6AN Kit includes:

• 2 Billet fuel rails.
• 4 Mounting brackets (same finish as rails).
• 4 Black anodized -8AN ORB to -6AN fittings.
• 1 -6AN 12" Steel braided cross over .
• 2 Black anodized -6AN 90° fittings.
• 8 Mounting bolts.

-8AN Kit includes:

• 2 Billet fuel rails.
• 4 Mounting brackets (same finish as rails).
• 3 Black anodized -8AN ORB to -8AN fittings.
• 1 Black anodized -8AN ORB to -6AN fitting.
• 1 -8AN 12" Steel braided cross over .
• 2 Black anodized -8AN 90° fittings.
• 8 Mounting bolts.
