Delphi/Lucas 37# High Impedence Fuel Injectors w/ Minitimer (Bosch EV1/LS1) Connectors  Product 46 of 1520 in category Fuel Corvette  Aeromotive Fuel Rails, Billet Aluminum, Red Anodized, Corvette, 7.0L, LS7 Pair

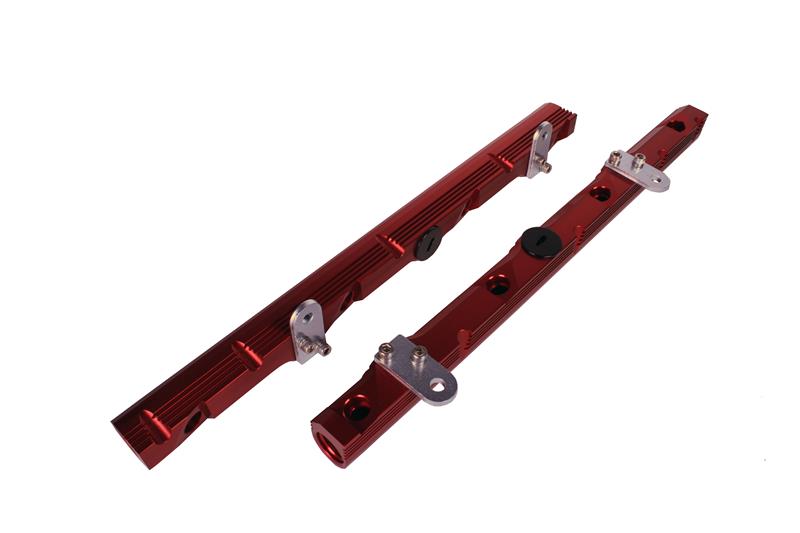

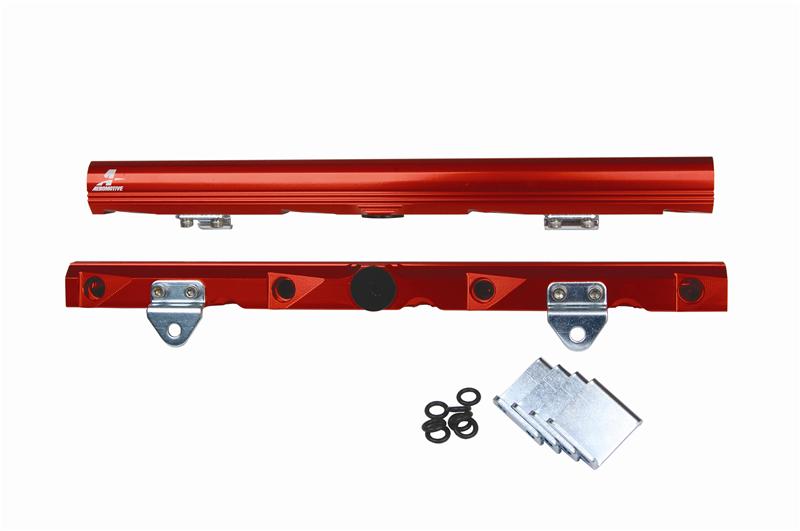

Aeromotive Fuel Rails, Billet Aluminum, Red Anodized, Corvette, 6.2L, 6.0L, LS2, LS3 and L76 Engines, Pair

Aeromotive Fuel Rails, Billet Aluminum, Red Anodized, Corvette, 6.2L, 6.0L, LS2, LS3 and L76 Engines, Pair
$339.95
Qty:

Add to Wish List

Fuel Rails, Billet Aluminum, Red Anodized, Chevy, Corvette, 6.2L, Pair

Many new Aeromotive Fuel Rails are now available as a fuel rail only kit, with high-flow fuel rail(s) and mounting hardware, or as complete bolt-on fuel rail systems. Systems are available for OEM return and returnless applications, and include everything needed for easy installation. Check out the new Ford 4.6L, 5.0L, 5.4L fuel rail systems, along with new fuel rail kits and systems for LS1 and LS2 Chevrolet Corvette, Camaro and firebird. How about fuel rails for the new NorthStar Cadillac engine?! And don't forget about our HOT Mitsubishi and Honda/Accura fuel rails or build your own with our raw, hi-flow extrusion.

Year Make Model Cylinders Liters Fuel type Fuel Delivery Aspiration ENGINE Designation Notes
2007 - 2009 CHEVROLET AVALANCHE V8 6.0 ALL ALL ALL L76
2010 - 2015 CHEVROLET CAMARO V8 6.2 ALL ALL ALL LS3
2008 - 2013 CHEVROLET CORVETTE V8 6.2 ALL ALL N LS3
2007 - 2009 CHEVROLET SILVERADO 1500 V8 6.0 ALL ALL ALL L76
2014 - 2015 CHEVROLET SS V8 6.2 ALL ALL ALL LS3
2007 - 2009 CHEVROLET SUBURBAN 1500 V8 6.0 ALL ALL ALL L76
2007 - 2009 GMC SIERRA 1500 V8 6.0 ALL ALL ALL L76
2007 - 2009 GMC YUKON XL 1500 V8 6.0 ALL ALL ALL L76
2008 - 2009 PONTIAC G8 V8 6.0 ALL ALL ALL L76
2009 - 2009 PONTIAC G8 V8 6.2 ALL ALL ALL LS3

 Fits GM LS3/L76 - Rails Only
 ORB-08 Ports with compact connections and positive, leak-free sealing.
 Full 5/8 ID through bore, capable of supporting up to 3,000 HP.
 Fully compatible with -10 AN line if combined with custom ORB-08/AN-10 adapter P/N 15641.
 Full size ports at each end for optimal injector supply and minimal hydraulic fluctuation.
 Additional inlet/outlet ports are provided where required for plumbing convenience.
 CNC-machined, billet aluminum construction for unequaled fit and finish.
 Steel mounting brackets, custom engineered for each application, combining a solid, durable mounting platform with correct fit and bolt-on ease of  installation.
Red, Type II bright dip anodized finish that looks great and protects against corrosion.

Download Installation Instructions

This product was added to our catalog on Wednesday 15 June, 2011.
