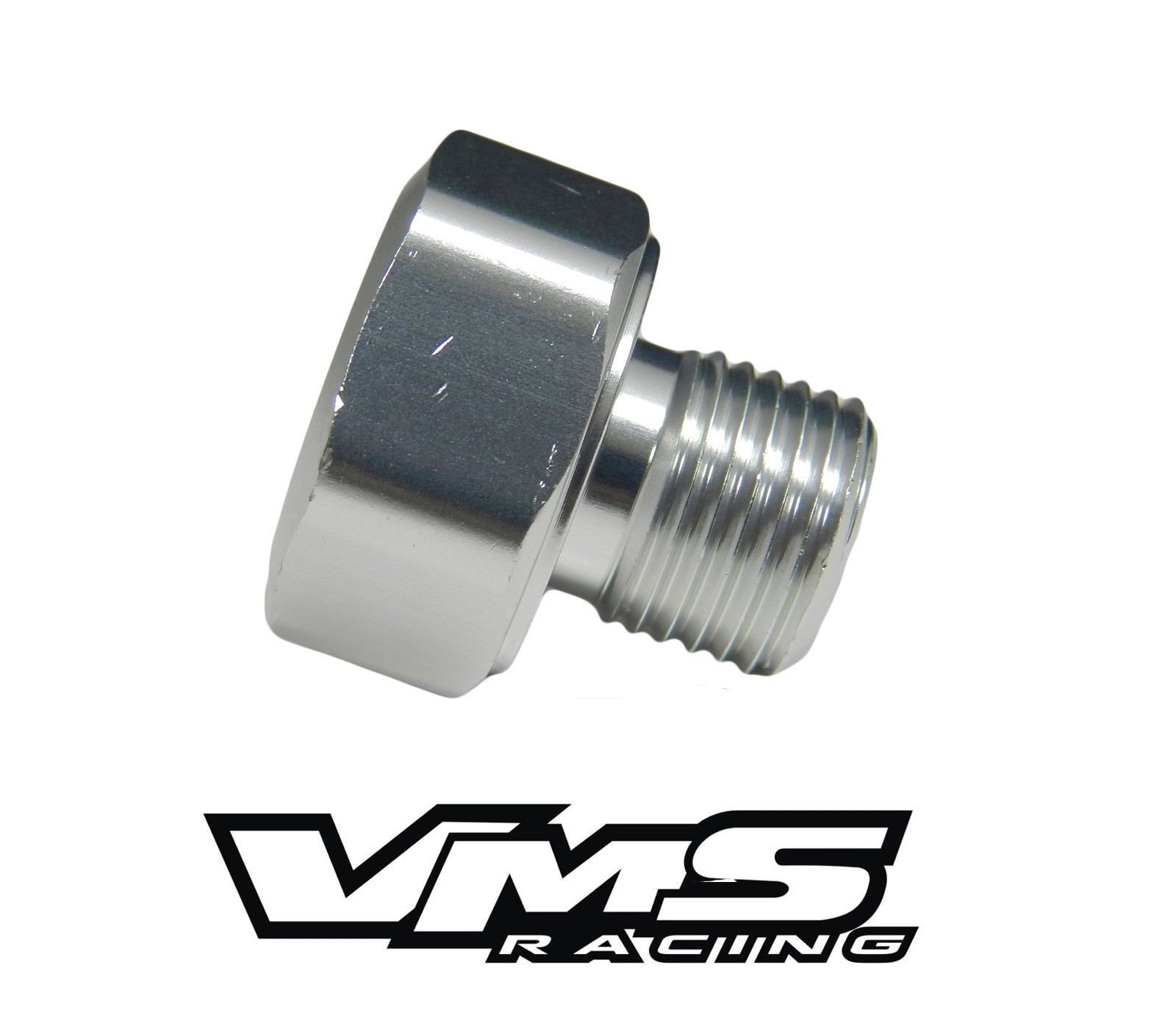

VMS Racing Oil Pressure Gauge Adapter for LS Style Engines LS1, LS2, LS3, LS6, LS7 Wet Sump, and LSX Engines

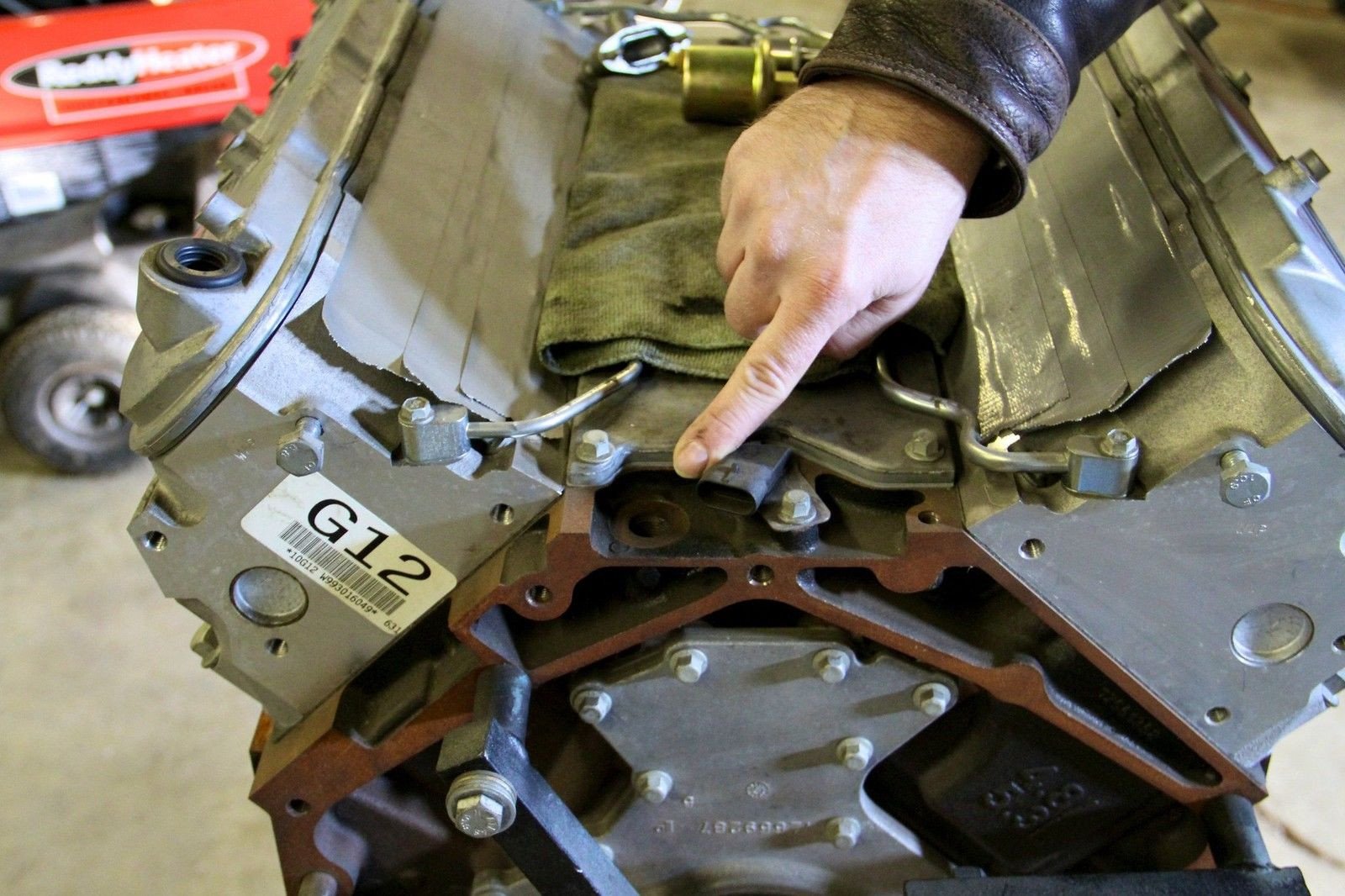

VMS Racing oil pressure gauge adapter for all LS style engines which include the LS1, LS2, LS3, LS6, LS7 wet sump, and the LSX engines. This oil pressure adapter for LS style engines will screw into the top of the block, behind the intake manifold, and adapts that port to a universal 1/8" NPT pipe fitting. This adapter can be used with both mechanical or electrical gauges. It can also be used for a warning light, temperature gauge, single turbo feed etc...

This is a UNIQUE piece as it will work with both the short and extended electric senders that are out there. This will work with the factory AutoMeter senders that come with the short sweep electric gauges. YOU DO NOT have to buy the short/shallow Autometer 2259 sender with this adapter, like you would have to do if you bought an AutoMeter 2268 adapter!

This fitting adapts a 1/8" NPT sender to a 16x1.5MM thread which is what all LS engines have on the top of the block, behind the intake manifold. No more need to buy a short sender for your gauge!
Unlike competitors parts which are left in raw aluminum, the VMS Racing adapter is hard anodized in a beautiful silver finish, for good looks and durability.

Features:

• Easiest way to install An oil pressure sender, or oil feed line for a turbocharger/supercharger .
• Highest quality T6061 billet aluminum.
