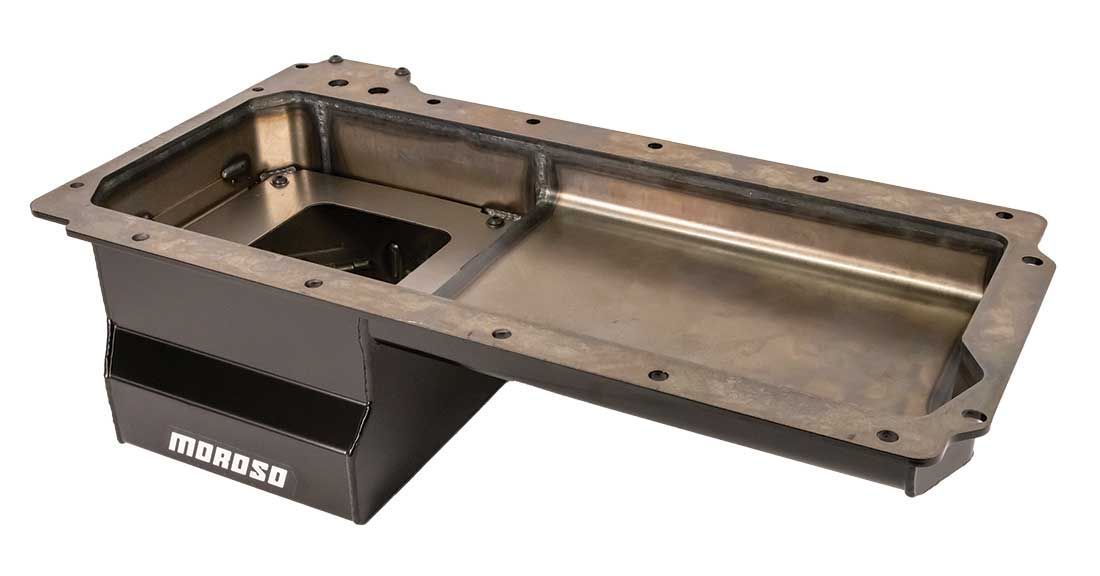

Engine Oil Pan, Street / Strip, Rear Sump, 7 qt, 6 in Deep, Trap Door Baffles, Oil Filter Adapter, Steel, Black Powder Coat, GM LS-Series, Each
*This pan will now ship in black powder coat from Moroso Powder Coating effective immediately. It will no longer be offered in clear zinc.
Dealers/distributors who carry Moroso pans will begin offering black powder coated inventory very soon. Some dealer inventory may be mixed with clear zinc in the interim.*
Steel, Wet Sump, 7 Quart Capacity, 6" deep
Fits: Early F-Body
Engine Application: GM LS Series
Fits: 67-15 Camaro/firebird, 68-72 Nova, 65-72 Chevelle, 53-96 Corvette, 78-88 G-Body and GM S10/S15 Two Wheel Drive Blazer/Truck. Can also be used in additional applications; check dimensions for clearance
- Two versions available: No. 20142 includes billet aluminum 22mm Spin-on filter mount with 1/4" N.P.T. sensor port, No. 20148 includes billet aluminum adapter with -10AN ports for remote filter installation
- Clears 4.25" stroke with most steel rods

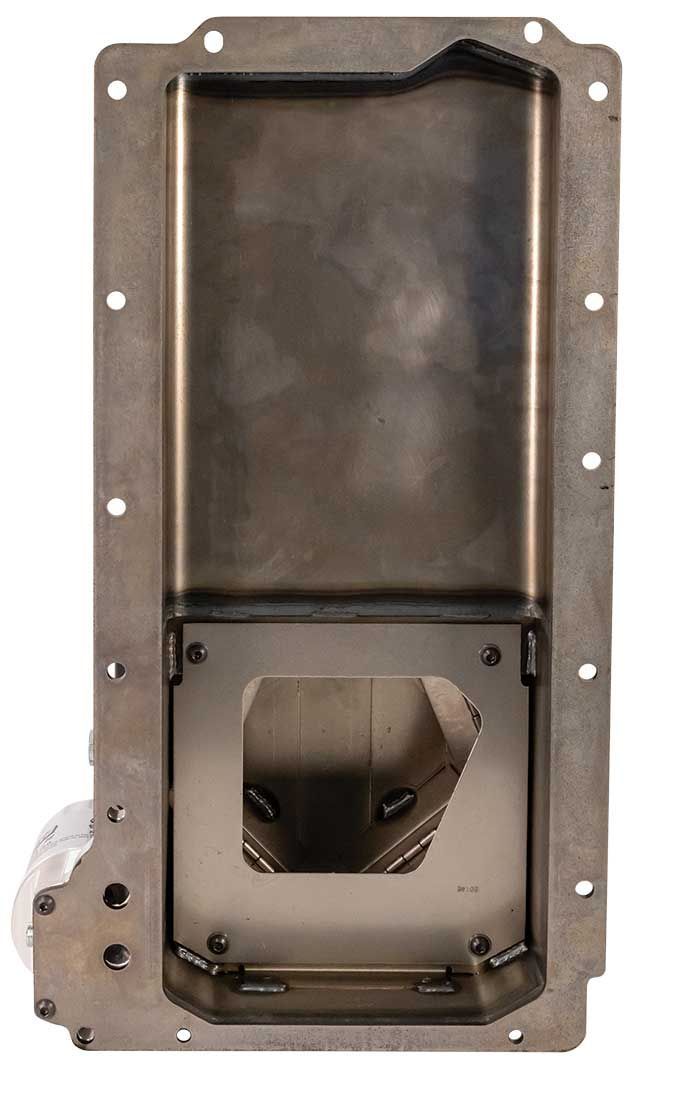

- Diamond shaped 4 trap door assembly and anti-slosh tray for improved oil control
- Fabricated steel with black powder coat finish by Moroso Powder Coating
- Compatible with LS car application dipstick
| Attributes |
|
|
Product Line
|
Drag / Drift / Road Race
|
|
Wet/Dry Sump
|
wet
|
|
Sump Location
|
Rear
|
|
Quart Capacity
|
7 qt
|
|
Depth
|
6 in
|
|
Maximum Stroke
|
4.25 in
|
|
Rear Main Seal Style
|
1-Piece
|
|
Kickout
|
Yes
|
|
Baffled
|
Yes
|
|
Trap Doors
|
Yes
|
|
Pickup Included
|
No
|
|
Oil Pump Included
|
No
|
|
Gaskets Included
|
No
|
|
Windage Tray Included
|
No
|
|
Hardware Included
|
No
|
|
LS-Series Oil Fitting
|
Yes
|
|
LS-Series Oil Fitting Style
|
Filter Mount
|
|
Manufacturer Style
|
Fabricated
|
|
Material
|
Steel
|
|
Color
|
Black
|
|
Finish
|
Powder Coat
|
|
Quantity
|
Each
|
|
