COMP Cams Valve Spring Kit - GM LS Dual Springs w/Steel Retainers

$506.46

Model: 26926TS-KIT Manufacturers: COMP CAMS

Qty:

Reviews

Add to Wish List

Description

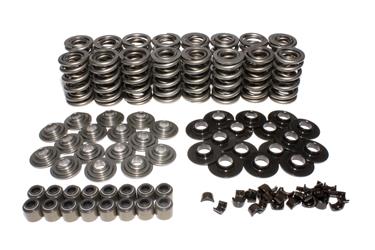

COMP Cams Valve Spring Kit - GM LS Dual Springs w/Steel Retainers

Competition Cams 26926TS-KIT

Valve Spring; For Use With GM LS-Series; Steel; Street Strip Dual Springs; Without Dampener; 1.320 Inch Outside Diameter/ 0.654 Inch Inside Diameter; 505 Pounds Per Inch Spring Rate; Natural; Set of 16 Valve Springs/ Set of 16 Lightweight Tool Steel Retainers/ Set of 16 Seven-Degree Steel Valve Locks/ Set of 16 Valve Seals

This Dual Valve Spring Kit for LS engines includes carefully matched Dual Valve Springs, titanium retainers, locks, seals and spring seats. With a 0.675 Inch maximum lift, these COMP Cams(R) Dual Valve Springs for race applications are manufactured from Super Clean™ wire and subject to extensive quality control testing to deliver a valve spring assembly with superior strength, durability and valve train stability, no matter the application. The dual spring design creates a stronger valve spring that can easily handle the increased lift found in extreme stress applications. COMP Cams(R) Dual Valve Springs exceed the expectations of today’s engine builders and racers.

Engine Compatibility: GM LS-Series

Type: Street Strip Dual Springs

Finish: Natural

Material: Steel

Includes Damper: No

Installed Height (IN): 1.835 Inch

Coil Bind Height (IN): 1.1 Inch

Inside Diameter Of Inner Spring (IN): 0.654 Inch

Inside Diameter Of Outer Spring (IN): 0.92 Inch

Outside Diameter Of Outer Spring (IN): 1.319 Inch

Spring Rate: 505 Pounds Per Inch

Quantity: Set Of 16 Valve Springs/Titanium Retainers/Seven Degree Steel Valve Locks/Valve Seals Millimeter

Specs

Coil Bind Height(in): 0.675

Outside Diameter(in): 1.320

Installed Height(in): 1.835

Open Pressure(lbs): 70

Open Height(in): 1.160

Position: N/A

Camshaft Type: Hydraulic

Spring Type: Double

Inside Diameter(in): 0.654

Spring Rate(lbs/in): 505

Installed Pressure(lbs): 129

This product was added to our catalog on Monday 03 October, 2016.
