C8 Corvette Direct Fit® Performance Radiator, AUXILIARY REAR Side Only, Dewitts

UNLEASH THE FULL POTENTIAL OF YOUR C8

For over 20 years, DeWitts Radiator has set the standard in Corvette cooling systems, driven by a commitment to innovation, durability, and race-proven performance. The C8 Corvette is a masterpiece of engineering—but in demanding conditions, even the best machines need an edge. That’s why DeWitts has engineered a complete three-unit Direct Fit™ high-performance radiator package specifically for 2020–Present C8 Corvettes equipped with LT2, LT6, or LT7 engines.

Each radiator features high-efficiency, multi-louvered fin cores with increased coolant volume, delivering significantly improved heat rejection compared to OE units. The cores are constructed by hand, with US born aluminum and an optimized fin pitch to maximize airflow and cooling performance under extreme load. Designed as a true bolt-in upgrade, they feature Direct Fit™ OEM-style mounting and fully compatible hose and sensor connections.

Whether you're attacking corners at the track or pushing your Corvette to its limits on the open road, consistent cooling is essential for sustaining power and ensuring long-term reliability. This high-performance radiator package delivers the thermal management needed to keep temperatures in check under any driving condition.

REAL BENEFITS, REAL RESULTS

• Complete aluminum radiator assembly with no plastic end tanks or rubber gaskets
• Track-optimized performance proven in racing applications
• Two row radiator design with dual 1-inch-wide core tubes for maximum cooling
• Fabricated end tanks fully TIG welded to core with no gaskets or epoxy construction
• Factory-sized cooling hose inlet and outlet connections to use stock hoses
• Radiators are born from US raw material and assembled entirely in the U.S.A.
• Covered by DeWitts exclusive lifetime warranty
• Increased coolant capacity and core surface area without fitment issues
• Serpentine cooling fins deliver optimum airflow across core tubes for cooling
• Mates directly to OE electric cooling fan and shroud
• In-house controlled atmosphere furnace brazed

FITMENT

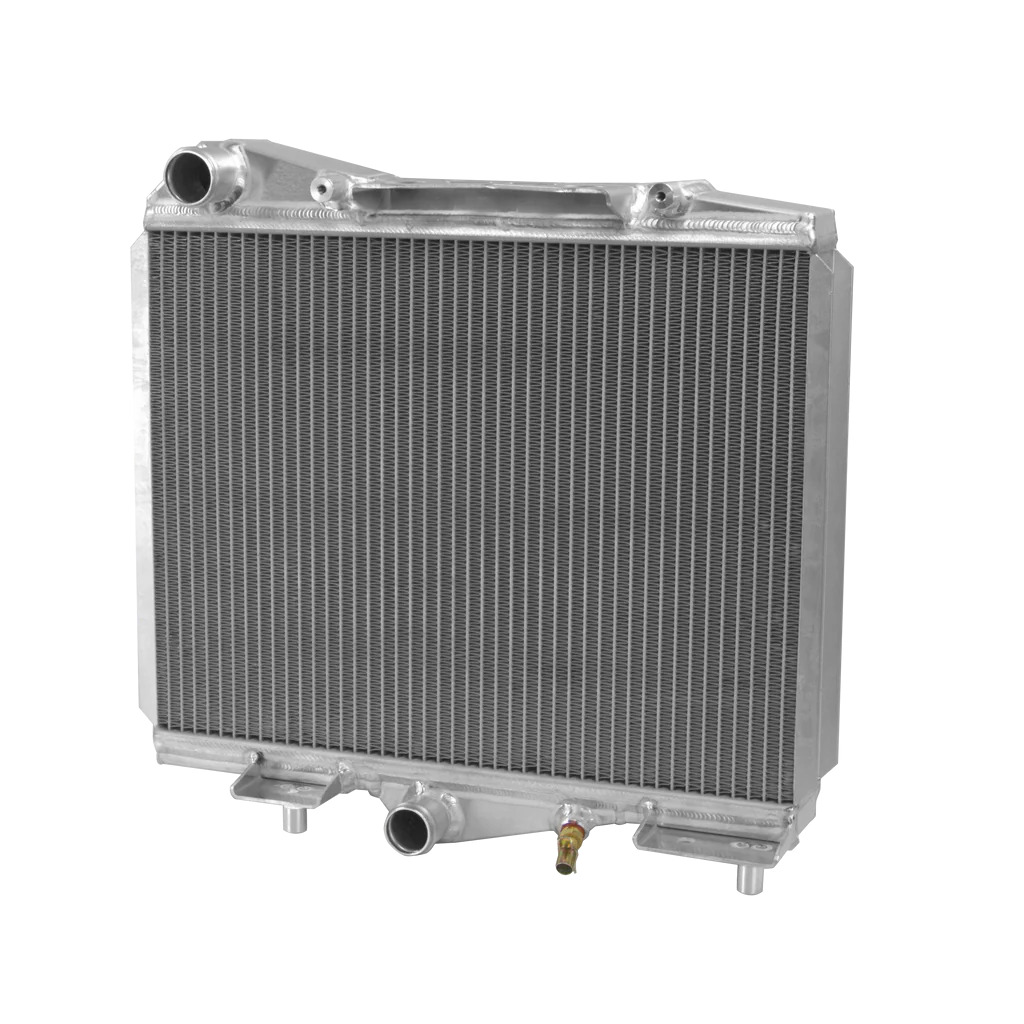

32-1139120L                    C8 LEFT FRONT RADIATOR                                                                      $999.99

• Pro Series Direct Fit™, natural finish, dual 1-inch core

32-1139120R                   C8 RIGHT FRONT RADIATOR                                                                   $999.99

• Pro Series Direct Fit™, natural finish, dual 1-inch core

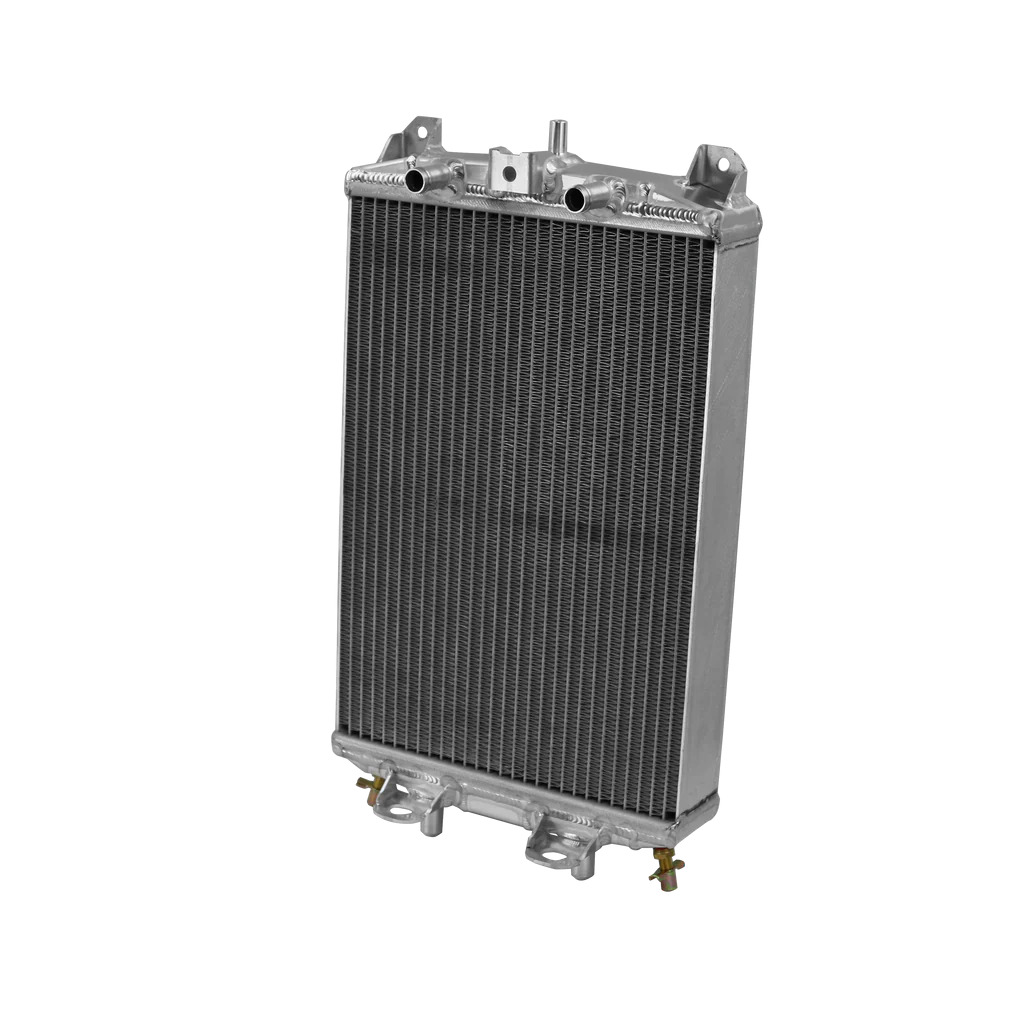

32-1139121M                  C8 AUXILIARY REAR RADIATOR                                                            $739.99

• Pro Series Direct Fit™, natural finish, dual 1-inch core
• Base Stingray or Z51 retrofit for enhanced cooling
• Not available for convertibles

SPECIFICATIONS

Specification Gains

                Front Radiators: 32-1139120R and 32-1139120L

• Base Models = 36% more surface cooling area on DeWitts Front Radiators
• Z51, Z06, ZL1 = 14% more surface cooling area on DeWitts Front Radiators

Rear Radiators: 32-1139121M

• DeWitts compared to the stock Auxiliary cooler is a 22% surface area gain
