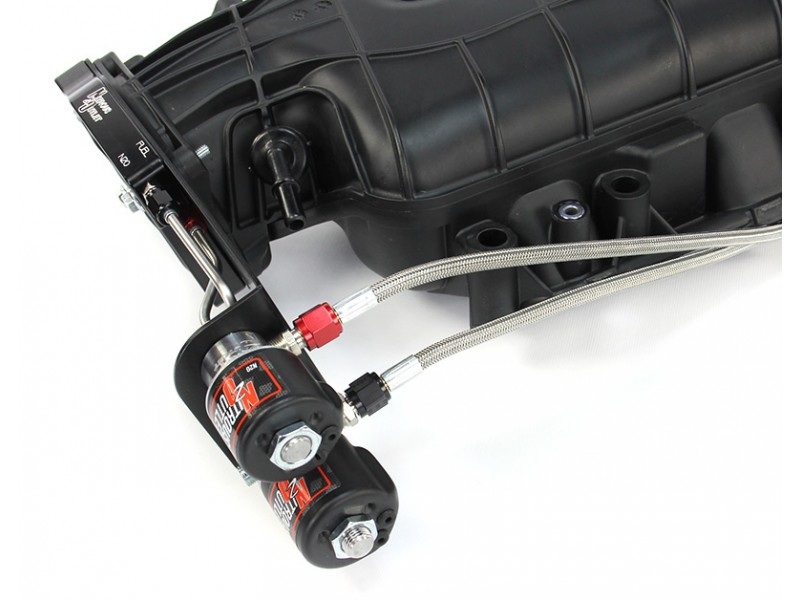

C7 Corvette Stingray Specific. This system is designed specifically for the LT1 C7 Corvette using the stock intake manifold. A custom solenoid bracket and prefabricated hard-lines bolt diretly between the throttle body and intake manifold.
Machined Billet Plate. The included nitrous plate is capable of flowing 400+ HP and has a high quality anodized finish with laser engraved labels and Nitrous Outlet logo.
Complete System. This system includes all of the necessary components billet aluminum nitrous plate, 50-100-150-200 HP jetting, hardware and wiring for installation.
Flow Up To 400HP Fits LT1 C7 Corvette 400+HP Solenoids All Hardware and Wiring Included C7 Specific Fuel Adapter Includes Jetting for 50-100-150-200HP
Number of Stages |
Single Stage |
Max Flow (Per Stage) |
400 |
Dry/Wet |
Wet |
Number of Solenoids |
2 |
Nitrous Solenoid Size |
.122 Orifice |
Fuel Solenoid Size |
.177 Orifice |
Relay and Harness Included? |
Yes |
Fuel Adapter Fitting Included? |
Yes |
Included Jetting (in Horsepower) |
50-100-150-200 |
Fuel Pressure |
45-55 PSI |
Single Or Dual Stage |
Single Stage |
Type Of Fuel Rail |
Stock Fuel Rails |
Solenoid Bracket(s) |
Vehicle Specific |
Main Feed Line Size |
6AN |
Hard or Soft Line (From Solenoids) |
Hard Line |
Vehicle Make |
GM |
Vehicle Model |
Corvette |
Vehicle Year |
2014, 2015, 2016, 2017 |
|
