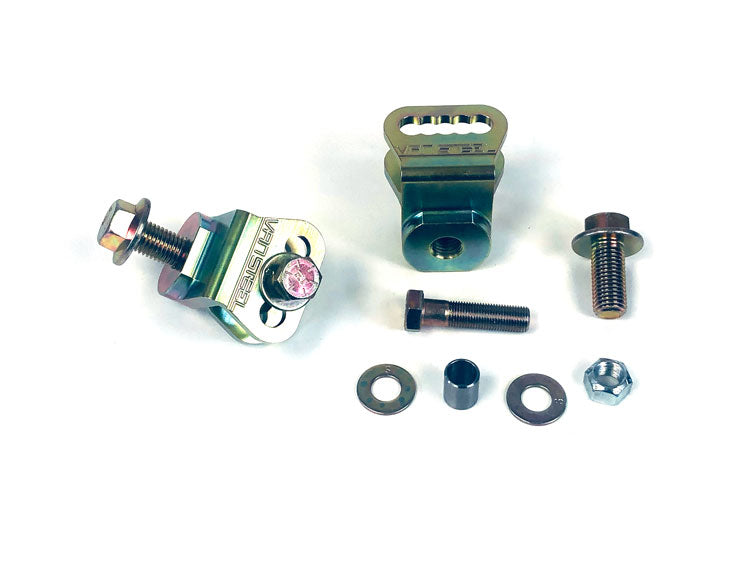

1997-2004 C5 Corvette Rear Toe Mount Kits - 1997-2004 Inner Mount Kit

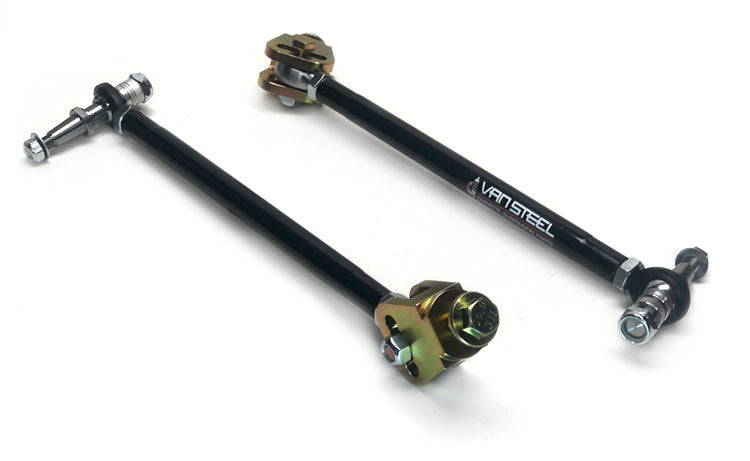

The Van Steel C5 & C6 TMK (Toe Mount Kits) will increase stability and response by eliminating the factory toe rods. Our toe rod kit provides an increased range of rear toe adjustment and has a 5 hole adjustable inboard pivot mount that is offset for the C5 (1.125") to clear cars with inverted shock coilovers making this a must have for C5's. C6 mounts are not offset as they have ample clearance for coilovers. Our inboard mount is a fully machined from a piece of 4140 that later gets a zinc coating and is NOT WELDED. The 5 hole mount lets you adjust for bump steer as well. Our tubes are DOM tubes that are swedged on the ends for extra strength and come with a black powder coat finish.



Also included in the kit are (2) T6 Aluminum shims to space the sway bar back for additional clearance. The shims come in a black anodized finish as well as (2) M12 Flange Head bolts for the upper sway bar mount cradle hole.



We use FK rod ends that have a PTFE liner. These rod ends are low friction, eliminate bushing deflection and smooth articulation.



• Fully Machined 4140 Inner Mounts NOT Welded
• Powder Coated Swedged Tubes
• 5 Hole Adjustable Inner Cradle Mount
• Chromoly Bump Steer Studs
• FK Rod Ends with PTFE Liners
• C6 TMK works on NON coilover C5 setups
