VSFM-002 STYLE Variable Speed DC Brushless Fan & Pump PWM Controller
USE ALMOST ANY BLDC FAN WITH ALMOST ANY SENSOR AT ANY SET TEMPERATURE!
USE THE SENSOR ALREADY ON THE CAR!
WORKS WITH ALL POPULAR BLDC TYPES! PUMPS TOO!
BOSCH/GM, SPAL, SPAL+, CORVETTE C6/C7, LINCOLN MK8
PROTECHNIC, PIERBURG, CADILLAC VARIMAX
IMPROVED: The v02 has the following new features:
* Selectable full-speed or +50% for A/C Force-On
* 10Hz selection for Mercedes e-fans
* "No creep" selection for DC fans with SSR drive
* Low-voltage input selection for OE sensors with limited movement
* 5V precision voltage source for DIY sensors

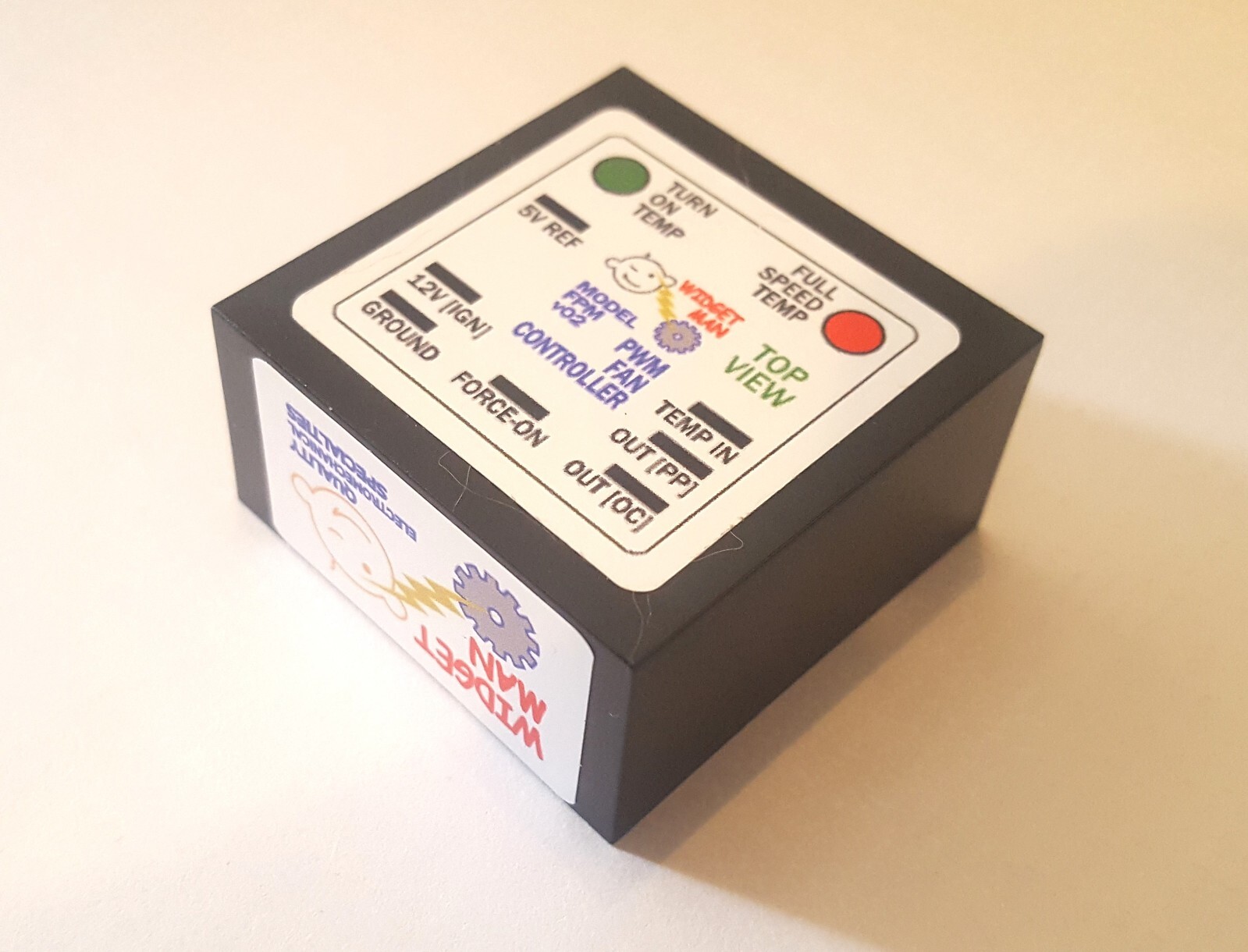

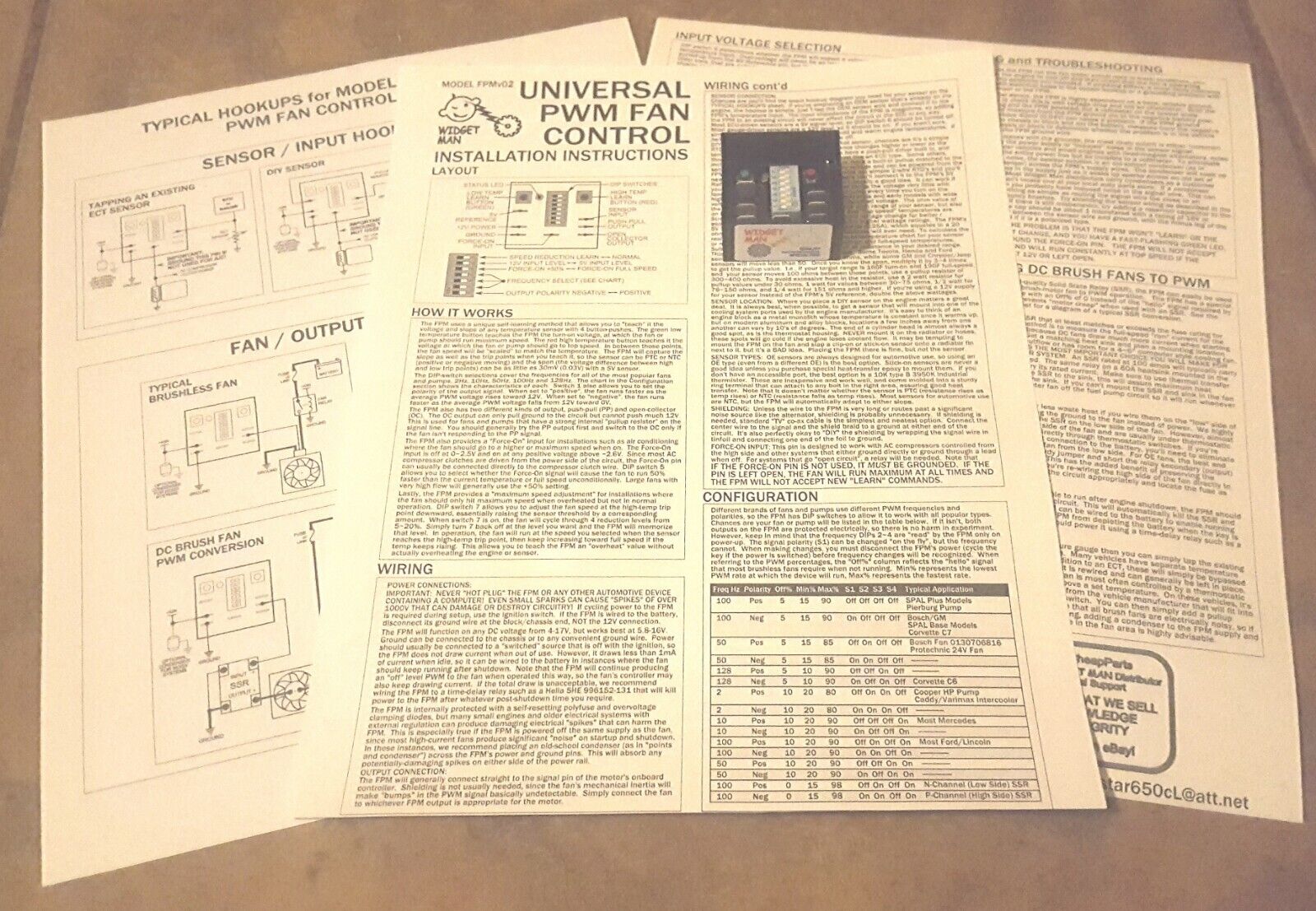

This clever device can "learn" the signal from any voltage-type sensor and vary your fan speed between whatever setpoints you teach it. It has 5 selectable PWM rates in positive or negative format, accommodating virtually every PWMable fan controller in use today. It also has special selections for driving Solid State Relays (SSR's) to vary DC fans with no fuss. Easy 2-button programming makes setting the temperature span a snap, just run the engine and press one button at your "turn on" setpoint, another button at your "full speed" setpoint. The device remembers the voltages and varies the fan speed between the two points. It also has an override pin for use with A/C compressors, and you can choose full speed or +50% speed with the compressor active. The hookup is 5 simple wires using .25" fastons from any parts store (power, ground, sensor signal, PWM output, and override if used). It also has a pin supplying a precision 5-volt reference source for use with DIY sensors. The device can stand 225 degF, so it's perfectly comfortable living on top of the fan or anyplace else in your engine box. |
