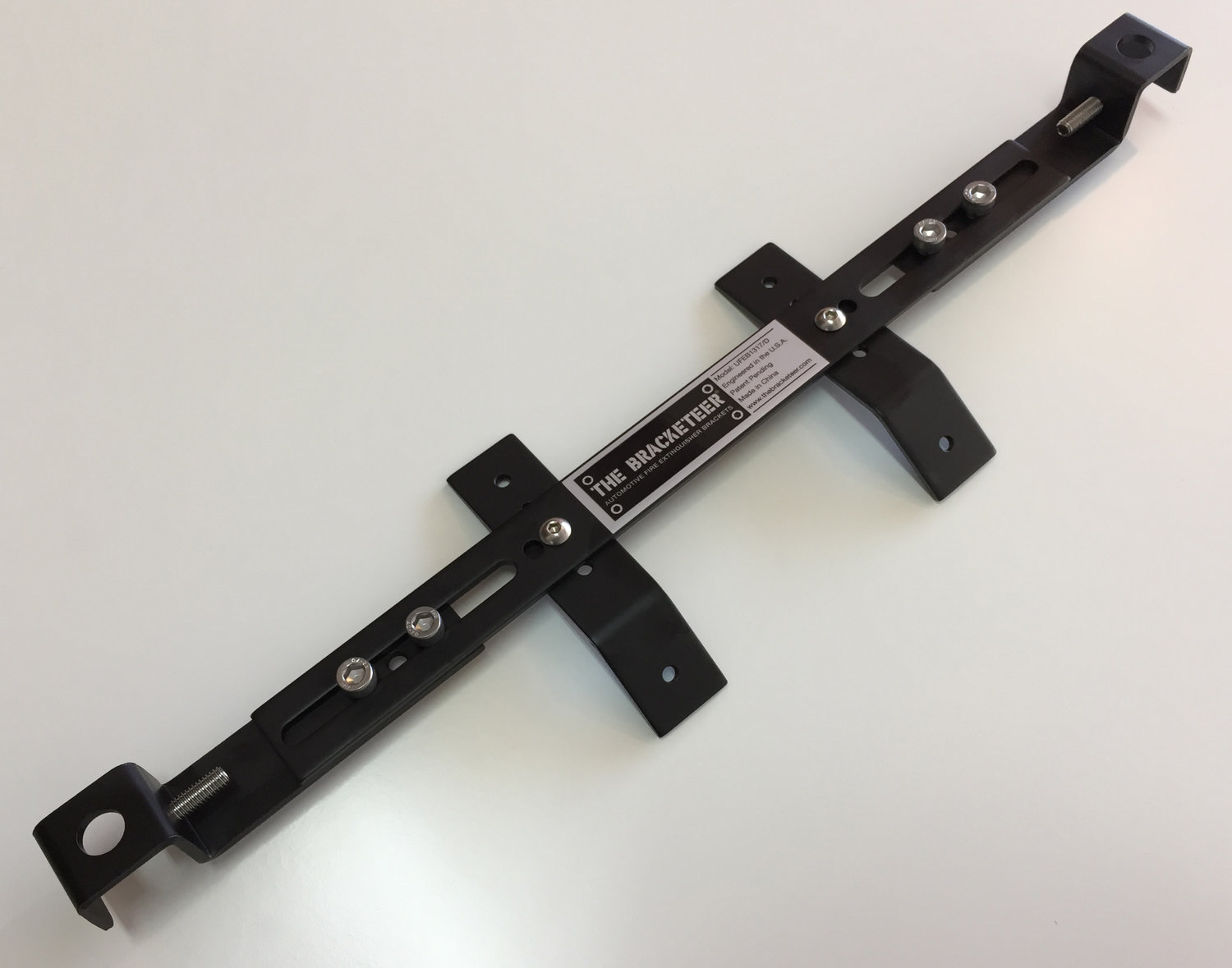

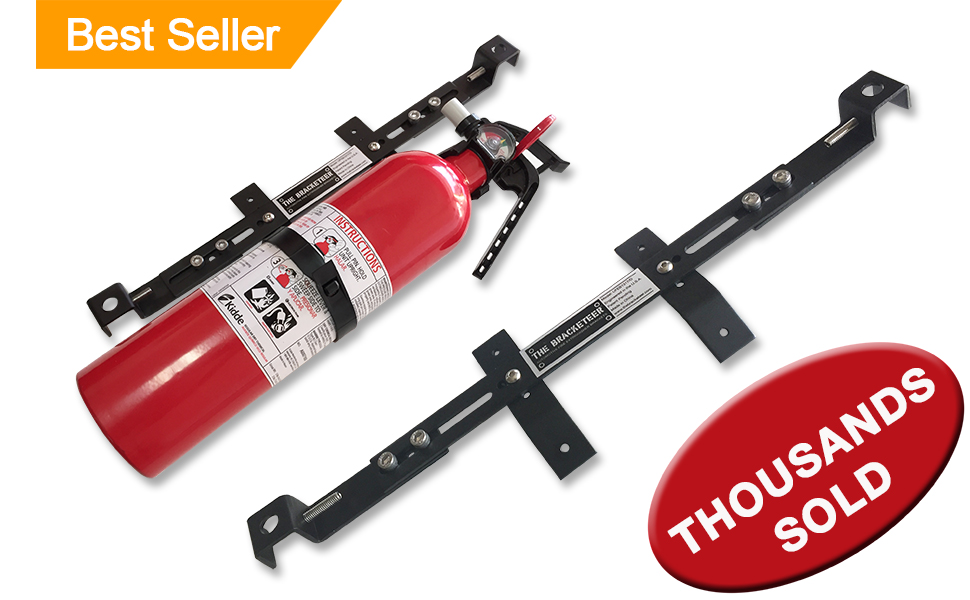

The Patented Universal Car Fire Extinguisher Bracket simply drops down onto the front or rear of the seat rails on the driver or passenger seat of most modern vehicles and is secured firmly using grub screws. For vehicles with a traditional bolt-on seat frame design, the Clamping Loops are simply inverted and secured through holes onto the factory mounting bolts.
The Clamping loops are bolted onto the slotted Adjustable Spacer Bar, which provides a wide range of lateral adjustment to ensure compatibility with almost any seat rail width.
The angled Multi Drilled Arms are bolted either on top, or underneath of the Adjustable Spacer Bar, using one of the five mounting holes, in either a downward or upward orientation.
The OE cradle supplied with the fire extinguisher is then bolted onto the Multi Drilled arms using any of the remaining holes. This provides over thirty different mounting combinations for the extinguisher, ensuring the most convenient and appropriate location is always achieved.
The Bracketeer Universal Car Fire Extinguisher Bracket is compatible with H3R HG250, Amerex B417T or B385TS, Kidde* 408-466727, FA110 or FA5G, or any 2 - 2.5lbs extinguishers with a supplied cradle with hole spacing of 4-¼”, 4-?” or 5” (108mm, 117mm or 127mm) center to center.
*NOTE: Kidde optional metal cradle recommended - OE Part 466465K (double strap) or 420118 (single strap).
Features and Benefits
Mounts to the front or rear of the passenger seat
Places extinguisher out of the way, but within easy reach
Simple clamp-on design for contemporary seat rails or bolt-on design for traditional seat mount points
Simple installation in under 10 minutes without drilling any holes
Adjustable width to suit a variety of vehicles
Over 30 different mounting points for extinguisher to ensure perfect location is always achieved
Durable electrophoretic coating
Supplied with stainless steel bolts & hex keys
Compatible with seat rails spacing between 11-3/4” to 18-7/16” (298mm to 468mm) inside edge to inside edge
Engineered in the U.S.A.
One year limited warranty
Material A572 Grade 50 steel with electrophoretic coating (e-paint)
Shipping Weight 20oz. (567g)
Installed Weight 17oz. (482g) (excluding extinguisher and cradle)
Shipping Dimensions 12-5/8” x 2-1/4”x 2-1/4” (321mm x 57mm x 57mm)
Cradle Hole Spacing 4-¼”, 4-?” or 5” (108mm, 117mm or 127mm)center to center
Seat Rail Spacing 11-3/4” to 18-7/16” (298mm to 468mm) inside edge to inside edge
Bolt Mount Spacing 12” to 17-1/2” (305mm to 445mm) center to center
County of Origin Made in the China

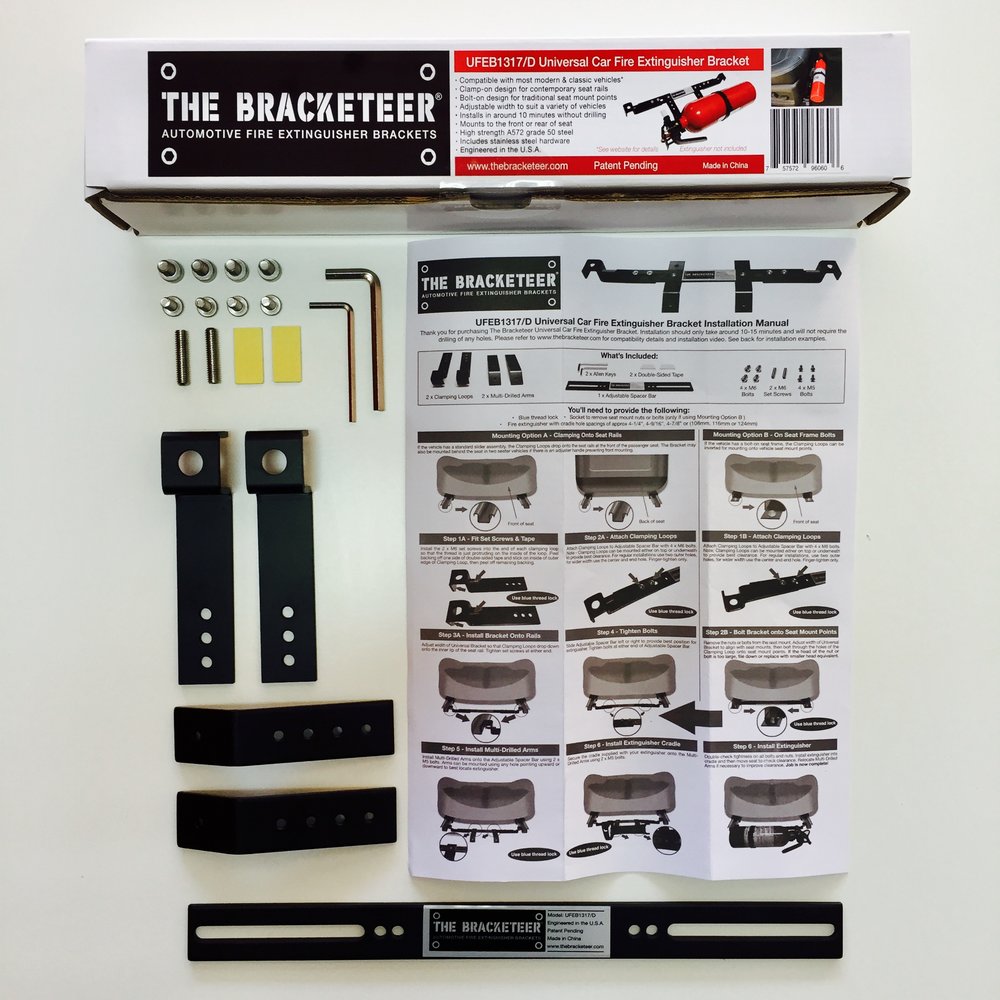

1 x Adjustable Spacer Bar
2 x Clamping Loops
2 x Multi Drilled Arms
2 x Stainless Steel M6 Grub Screws
4 x Stainless Steel M6 Allen Head Bolts
4 x Stainless Steel M4 Allen Head Bolts
2 x Hex keys (Allen keys)
1 x Installation Manual
The Bracketeer Universal Fire Extinguisher Bracket is compatible with most modern and classic Cars, SUVs, Pickups and Vans from brands including Acura, BMW, Buick, Chevrolet, Chrysler, Dodge, Ferrari, Ford, GMC, Infinity, Lamborghini, Mazda, McLaren, Mercedes Benz, Nissan, Pontiac, Porsche, Scion, Subaru, Toyota, Volvo and more.
