LED Flasher Light Load Equalizer for Fast Flashing LED Lights

DELUXE ALUMINUM - Model 100 ohm, 15-25 ohm, 6 ohm, and 3 ohm
25 or 50 watt LED Load Equalizer: Corrects Most LED Related Turn Signal Problems and bulb-out warnings for larger bulbs - Adds about 25 or 50 watts of load.

Two in front and two in rear required, or one for each "LED" turn signal bulb.

For turn signal led bulbs, the equalizer must be spliced across the - ground wire and the + turn signal wire feeding each led bulb. Easy Install w/ Mounting Holes & Quick Splices

- Use TWO 6 Ohm Equalizers if your are installing LEDs in the turn Signal positions in the FRONT. Or REAR Only (One for each Side).

- Use TWO 3 Ohm Equalizers if your are installing LEDs in the turn Signal positions in the FRONT AND REAR (one for each Side

NOTE: We recommend the 50 Watt Model for most applications.

Rated 75 watt LED Load Equalizer (Lowers Temperature)
Rated 100 watt LED Load Equalizer (Lowers Temperature)

Note:  Equalizers heat up, like a light bulb.  Install so that they do not contact plastic or painted parts.

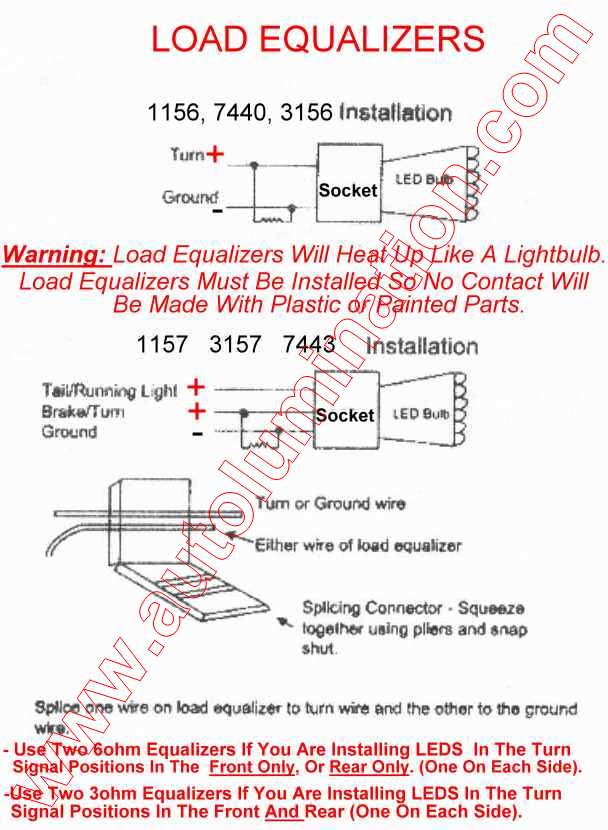

Installation Diagram
