LED Brake Light Flasher Module C5 Corvette, C6 & Z06 Corvette

INTRODUCING THE NEW BRAKER FLASHING BRAKE LIGHT LED SEQUENCER CONTROL MODULE
Works great for upper 3d brake lights!

The BRAKER CONTROL MODULE WILL MAKE YOUR led brake lights or reverse lights strobe brightly at 10 flashes per second for two seconds every time you hit the brakes or switch into reverse.

.........After 2 seconds the lights stays bright as long as your foot is on the brake or the vehicle is in reverse.

*WORKS WITH ANY LED BRAKE LIGHT OR REVERSE LIGHT BULB

Function:
The Braker flashing control module contains a sequencer that will cause an led light bulbs to operate as follows:

1.  Each time power is applied to the red wire, from the battery, the red wire to the led bulb will cause the led bulb to perform a sequence as follows;

A.  The led will strobe brightly at a flash rate of 10 hertz (10 cycle per second) for a period of two seconds.

B.  As long as power is still applied, the led light will light bright for as long as power is continually applied to the circuit (ie: as long as the brake pedal is pressed).

C.  When power is cut to the red wire (ie: the brake pedal is released, the bulb will either go dim (of the lights are not on) or light in dim mode if the lights are on.

Note: In a singe circuit bulb such as an 1156 or 921, there is no dim circuit, so the braker module will sequence whenever the brake is applied, but there will be no dim function.

Installation:
Note: One module can connect to more than one led bulb, but each bulb must be connected to a module in order for that light to flash.  In most instances (to avoid running extra wiring) , it is easiest to install one module at each led light (ie: one module on each side of the vehicle).  If you have more than one brake light on each side of the vehicle, one module can  be used on each side (2 modules for four lights).

Important:  The dual circuit module has the words "FLASHING CONTROL MODULE" molded into the black case.  The end closest to the word "FLASHING" must be toward the battery, and the word "MODULE" must be oriented closest to the led bulb.  If the module is installed backwards, it will not work.

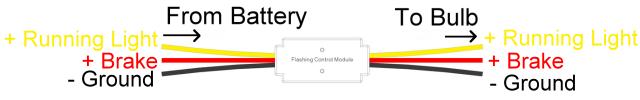

Connect the flashing module in the wires feeding to any LED bulb as follows:

1157, 3157, or 7443 dual circuit bulbs:

Yellow Wire - Connect the to + tail light or running light wire.

Red Wire - Connect to the + brake light wire.

Black Wire - Connect to the - ground wire.

7440, 1156, 89 and 921 single circuit led bulbs:

Blue Wire - Connect to the + brake light wire toward the bulb side.

Brown Wire - Connect to the + brake light wire toward the power or battery side.

Operating Voltage: 11.5 - 13.5 volts

Maximum Current : 800ma

Note: This module is not suited for filament style bulbs.  A filament style bulb is not capable of fast switching, and cannot strobe.  The power draw of the filament style bulb will destroy the Braker Flashing Module.

*Note: May not work with some vehicles that modulate voltage to a single circuit bulb for brake indication.
