DeWitts Short Radiator Direct Replacement for C5 Corvette w/ Manual 1997-2004 w/ Engine Oil Cooler  Product 166 of 169 in category C5 Corvette Cooling  DeWitts Short Radiator Direct Replacement for C5 Corvette w/ Automatic 1997-2001 w/Engine Oil and Transmission Cooler

DeWitts Short Radiator Direct Replacement for C5 Corvette w/ Automatic 1997-2001 w/Trans Cooler

DeWitts Short Radiator Direct Replacement for C5 Corvette w/ Automatic 1997-2001 w/Trans Cooler

Available Options:
Radiator Options:
Select
$679.95

Add to Wish List

DeWitts Short Radiator Direct Replacement for C5 Corvette w/ Automatic 1997-2001 w/Trans Cooler

This new high performance "Direct Fit" aluminum radiator features two rows of 1" cooling tubes, doubling the cooling capacity of the factory single row. The press formed aluminum end tanks are tig welded to the core, eliminating failures due to cracked plastic end tanks and/or gasket leaks. This unit fits into the original mounting and has all the factory connections.

Engine runs 20-40 degrees cooler. Whether you performance drive your C5 or cruise it, keep its coolant temp in check with this direct fit, high capacity aluminum radiator. It features a cast aluminum filler neck, extra strong tanks and advanced core technology. Delivering more durable and cooler operation over the stock radiator.

This group of radiators feature a shortened core for blower clearance.

This new high performance Direct Fit® aluminum radiator features two rows of 1" cooling tubes, doubling the cooling capacity of the factory single row. The press formed aluminum end tanks are TIG-welded to the core, eliminating failures due to cracked plastic end tanks and/or gasket leaks.

1997-2004 (All C5 Manual)
Model: 1139197M (Manual)
Model: 1139197E  (Note 1)

1997-2001  (Flare connection)

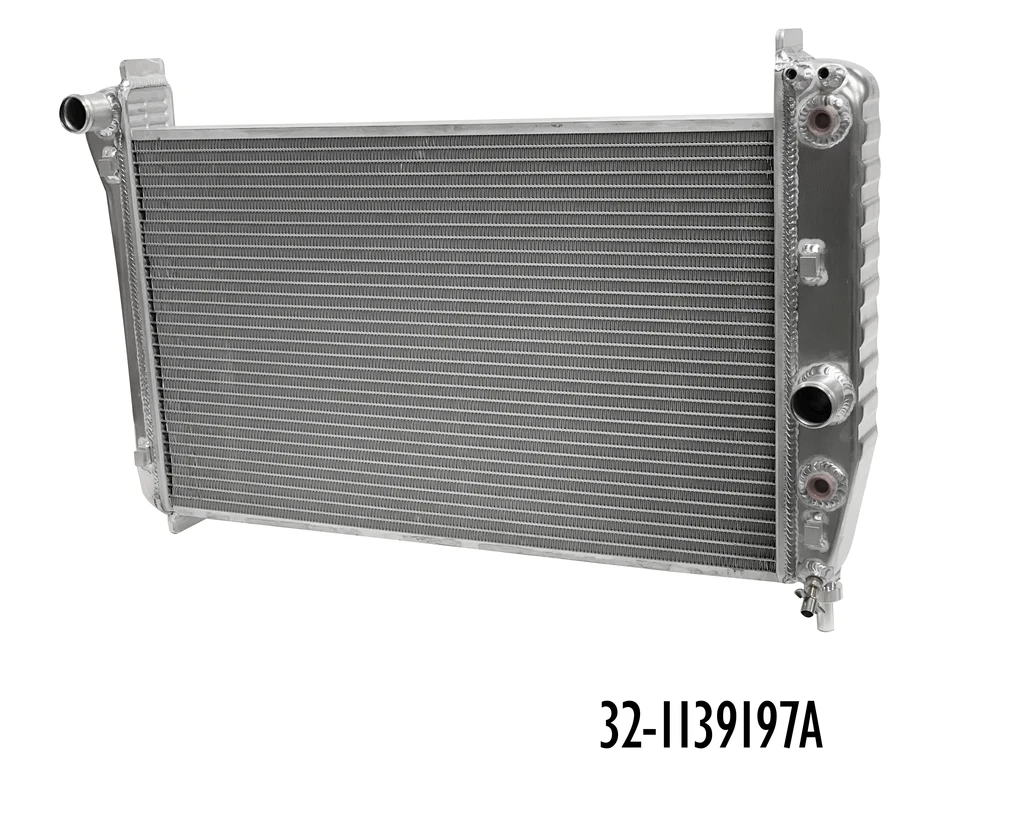

Model: 1139197A (Auto)
Model: 1139197B (Note 2)

*Attention 2001 Corvette owners! Early 2001 Corvettes used the flare type transmission connection and later models switched to the Quick Connect QC fitting. Please check your transmission oil cooler connections before ordering this radiator. Click HERE for details

2001-2004  (Quick Connect Fitting)
Model: 32-1139111A (Auto)
Model: 32-1139111B  (Note 3)

Note 1:  This model features a custom 7-plate aluminum Engine Oil Cooler (EOC). #10-AN oil line fittings are included. See accessories for line kit.

Note 2:  This model features a 7-plate aluminum Engine Oil Cooler (EOC) and transmission cooler with flare connections. #10-AN oil line fittings are included.

Note 3:  This model features a custom 7-plate aluminum Engine Oil Cooler (EOC) and transmission cooler with metric (QC) connections. #10-AN oil line fittings are included.

See SPAL Fan Category for Model: 32-SP015SC
We completely re-designed our C5 fan package to utilize a lazer cut aluminum shroud. The shroud incorporates (4) four rubber flapper valves to improve air flow at high speeds and close at slower speeds. Two SPAL 12" high performance fan provide 3200 CFM, which doubles the factory output. What makes this really cool is DeWitts customized the fans with matching Corvette fan plugs, so no cutting or splicing is required.

This product was added to our catalog on Thursday 04 June, 2020.
