C7 Corvette 14-19 Wilwood SX6R Front Big Brake Kit w/14" SRP Drilled RotorsWilwo  Product 144 of 169 in category Brake Packages  C7 Corvette 14-19 Wilwood SX6R Front Big Brake Kit w/15" SRP Drilled RotorsWilwo

C7 Corvette 14-19 Wilwood SX6R Front Big Brake Kit w/15" GT Slotted RotorsWilwoo

C7 Corvette 14-19 Wilwood SX6R Front Big Brake Kit w/15" GT Slotted RotorsWilwoo
$4,259.99
Qty:

Add to Wish List

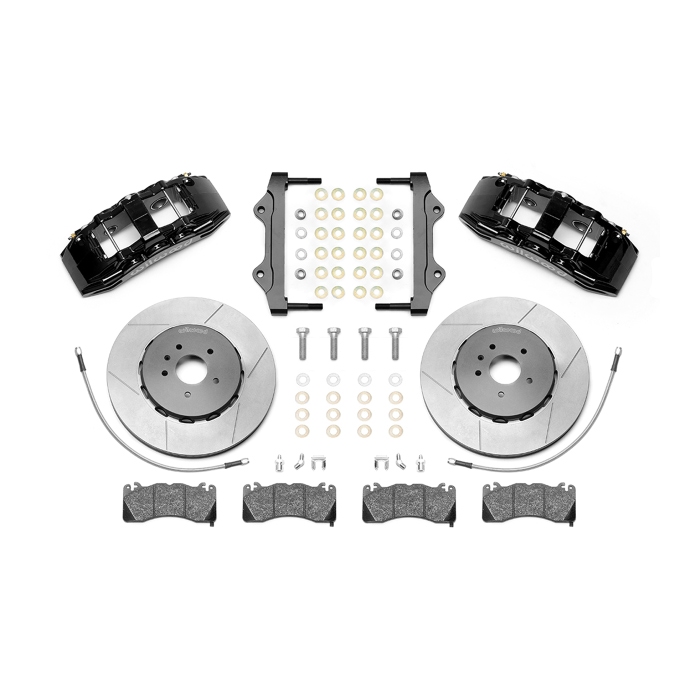

Wilwood's forged aluminum SXR calipers and 15" diameter Spec 37 curved vane Iron two-piece rotors are combined to provide high capacity braking with large diameter rotors for extreme duty and race vehicles. Available with SRP drilled and slotted performance rotors or GT competition series rotors with face slots only. Each kit includes all necessary hardware with DOT approved stainless steel braided flex lines, and a detailed instruction guide for an easy bolt-on installation.

Check out these features on the 2014-2019 Corvette SXR Front Brake Package:

  • SXR 6-piston forged aluminum calipers
  • Fits inside 19" wheels (see diagram for clearance requirements)
  • 15" curved vane Spec 37 GT slotted only 2-piece brake rotors - designed for track use
  • ProMatrix Compound brake pads
  • Calipers available in gloss black or red
  • DOT approved stainless steel braided flex lines included
  • Bolt-On kit includes all necessary hardware and detailed installation guide

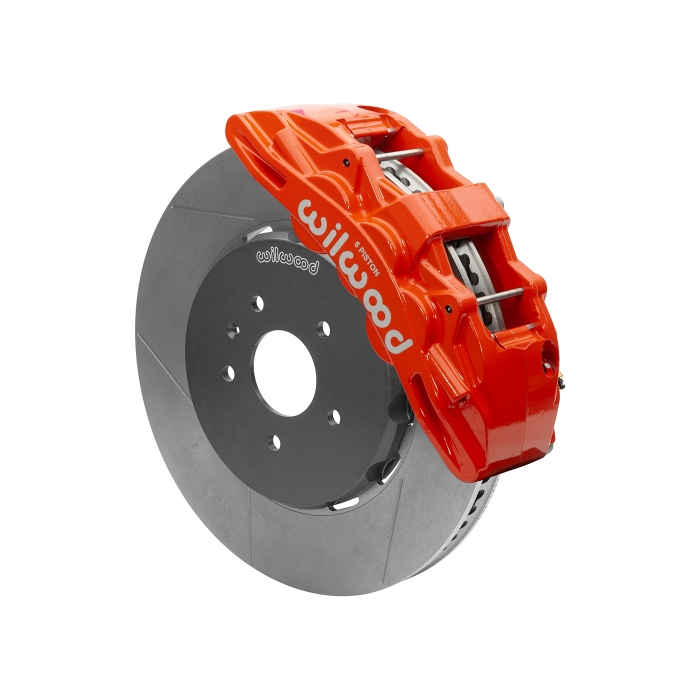

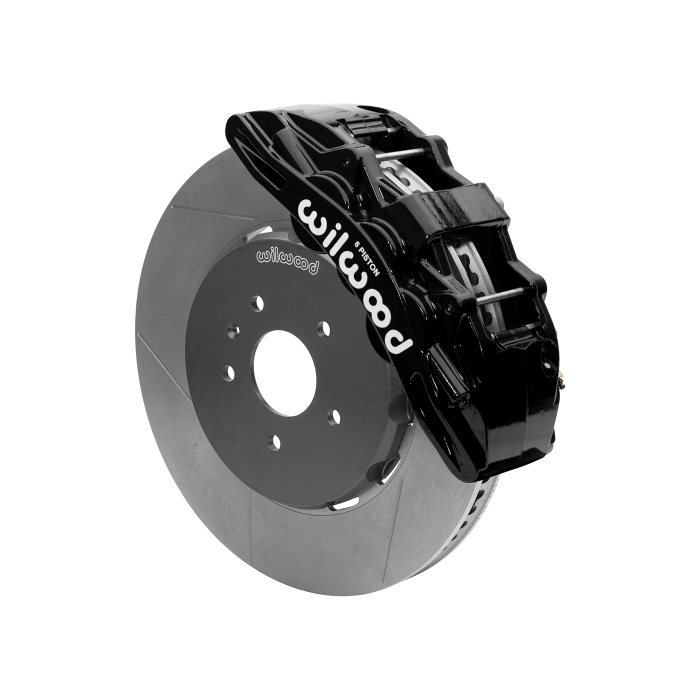

SX6R forged six piston calipers deliver heavy duty stopping power for the road or track. The caliper incorporates race technology into a body design with widespread adaptability. Radial mounting, multiple options for piston volume, and a rotor diameter ranging to 15.00" give this caliper the versatility necessary to suit all types of heavy weight braking requirements. The new SX6R is is largest caliper with the latest innovations incorporating an exclusive dust wiper seal that further protects the piston bore from dust and corrosion, allowing the caliper to be used in locales that mandate a method of environmental sealing.

The body of SX6R series is stress-flow forged from a premium grade aluminum alloy billet. Stress-flow forging realigns the metal's internal grain structure to flow within the contour of the caliper body. This process eliminates the stresses and interruptions to the internal grain structure that occur when machining a straight block billet. The results are a caliper with superior clamping efficiency and ultimate strength against fatigue, stresses, and distortion under load.

Big Brake Dynamic Lug Drive hats incorporate a new rotor mounting system that eliminates the rotor bolts and allows the rotors to move independently of the hats as they expand and contract through heat cycles. All thermally generated stress is removed from the rotor attachment points. The rotors stay flatter and run truer. Brake response and pedal feel remain consistent. Pad knock back and rotor drag are eliminated. The hats are no longer distorted by stresses generated by thermal expansion and shrinkage of the rotors. All problems associated with thermal distortion, including bolt hole alignment issues when trying to re-install new rotors on a previously used hat, are eliminated.

Wilwood's GT Rotor and Lug Drive Hat Assemblies are preassembled packages of our latest and greatest technology and design. The lug-drive rotor mounting system eliminates the rotor bolts and instead, a large single internal snap-ring retains the rotor in the hat. This system allows the rotors to move independently of the hats as they expand and contract through heat cycles. All thermally generated stress is removed from the rotor attachment points. The rotors stay flatter and run truer. Paired with GT 72 Curved Vane Spec-37 rotors that are manufactured from a proprietary iron alloy developed to withstand extreme temperatures with the highest possible degree of resistance against distortion, warping, cracking, and wear.

Wilwood has been expertly designing and manufacturing high-performance disc brakes in the USA since 1977. Engineered and rigorously tested for the track, Wilwood brakes provide unsurpassed quality and performance with sleek, lightweight designs. Wilwood has dominated the motorsports arena for decades, making their street market brakes among the most technologically advanced around.

Wilwood Item Number 140-15743, 140-15743-R



Since the company’s inception in 1977 by Billy Wood, Willwood has developed a substantial matrix of brake components and engineering techniques that allows them to quickly and reliably create brake systems for almost any application. With headquarters in Camarillo, California, Wilwood employs approximately 250 people. Wilwood's off-shelf brake calipers range in size from tiny calipers used on go-carts and light duty industrial equipment, to heavy duty original equipment brakes for the U.S. military Humvee - and right in the middle, they’re perfect for your Corvette too.

This product was added to our catalog on Friday 13 September, 2024.
