C6 Corvette Essex Designed AP Racing Radi-CAL Competition Brake Kit (Front CP9668/372mm)

C6 Corvette Essex Designed AP Racing Radi-CAL Competition Brake Kit (Front CP9668/372mm)

Brand: Essex & AP Racing

Complete front Essex Designed AP Racing Radi-CAL Competition Brake Kit for all C6 Corvettes.

• One pair AP Racing CP9668 Radi-CAL Pro5000R racing calipers
• One pair 372x34mm AP Racing CP6084, 84 vane, J Hook racing discs, with fully floating 6061 hard anodized aluminum hats, and attachment hardware
• One pair caliper mounting brackets and hardware
• One pair Spiegler Stainless Steel Brake Lines with abrasion resistant coating
• Detailed installation instructions
• Brake pads are NOT included with our system. Racing brake pads are a highly personal choice. Many manufacturers include a set of inexpensive, low quality pads with their brake kits. Rather than artificially inflating the price of our system with a set of pads you probably don't want anyway, we've decided to remove the cost from our system and allow our customers to choose the pads that best suit their needs/wants. When purchasing our kit, you are able to choose one set of front pads at a substantial discount vs. the retail price. Please use the drop-down menu to select your pads.

Features AP Racing CP9668 Radi-CAL six piston calipers, uses 25mm thick pad
372x34mm, 84 vane AP Racing disc
Saves 10 unsprung lbs. from nose of base C6 vs. OEM brakes, and 13 lbs. from C6 Z06
Every component designed to resist the heat of extended track sessions
Pistons sized properly to allow for seamless integration with OEM master cylinder and ABS system
Designed to work with OEM rear brakes or our Essex/AP Racing rear BBK

Radi-CAL

“Radi-CAL” is a blanket term used to describe AP Racing’s patented asymmetrical brake caliper design. Radi-Cal technology is grounded in Computer Aided Design (CAD) and Finite Element Analysis (FEA), and allows for organic, alien-looking designs that are a radical departure from conventional caliper designs of the past. Radi-CAL's are widely considered the pinnacle of current brake caliper technology. Since their inception in 2007, these revolutionary calipers have amassed a lengthy string of race victories at all levels of professional motorsport, while redefining brake performance expectations. For more details on the design concept and what these calipers have achieved in professional racing, please visit our blog and read The AP Racing Radi-CAL Story.

The key benefits of the Radi-CAL design:

Massive Stiffness Increase- A 30+ % increase in both static and dynamic stiffness vs. conventional calipers allows for far less deflection under load, which means superior pedal feel & modulation, more even pad wear, and longer caliper service life.
Considerable Mass Reduction- Removing all extraneous caliper mass lowers the caliper weight, despite the huge stiffness increases.
Optimized Airflow- Air moves around and through the caliper more efficiently, providing superior heat evacuation and cooling.
Efficient Packaging- The asymmetric caliper profile and internal fluid porting allows the caliper to fit into tighter spaces.

Calipers

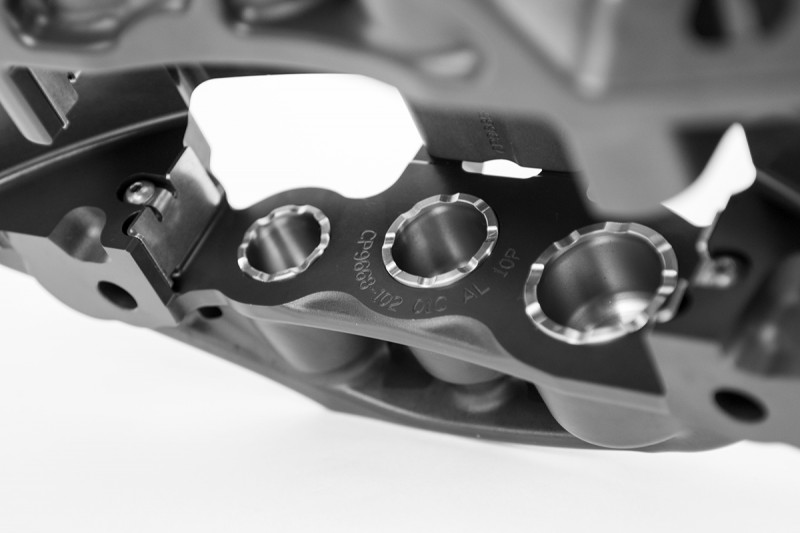

CP9668 Pro5000R, The Everyman Radi-CAL
