2020+ Corvette C8 Wilwood SX6R Front 15" Drilled Brake Kit

$4,157.94

Model: WIL140-17004-D Manufacturers: Willwood

Qty:

Reviews

Add to Wish List

Description

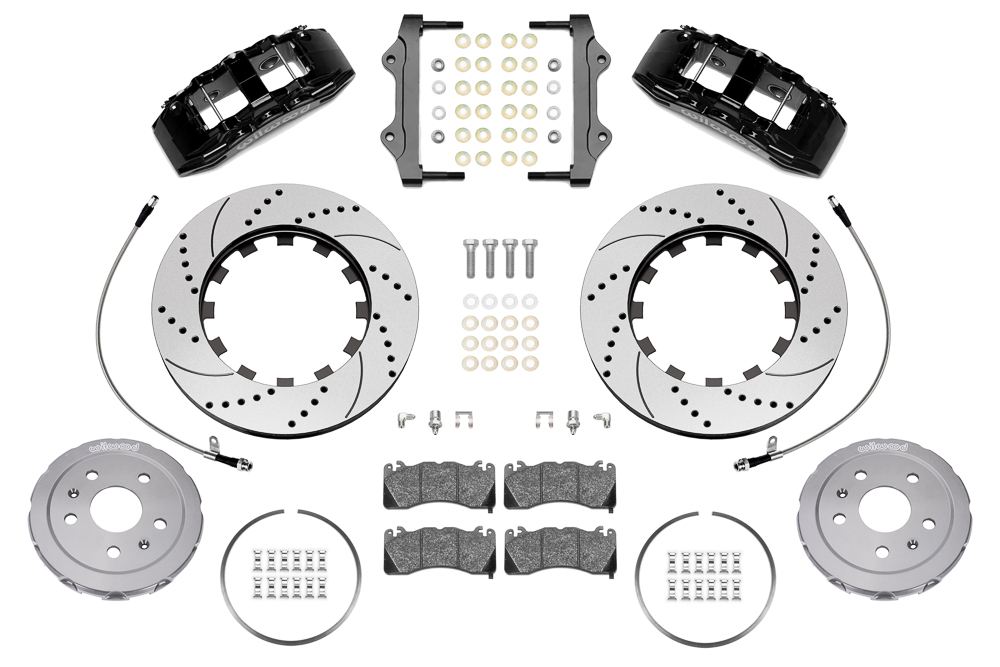

2020+ Corvette C8 Wilwood SX6R Front 15" Drilled Brake Kit

KIT,FRONT,SX6R,C8 CORVETTE 2020-UP,LUG DRIVE,15.00 ROTOR,SRP,W/LINES

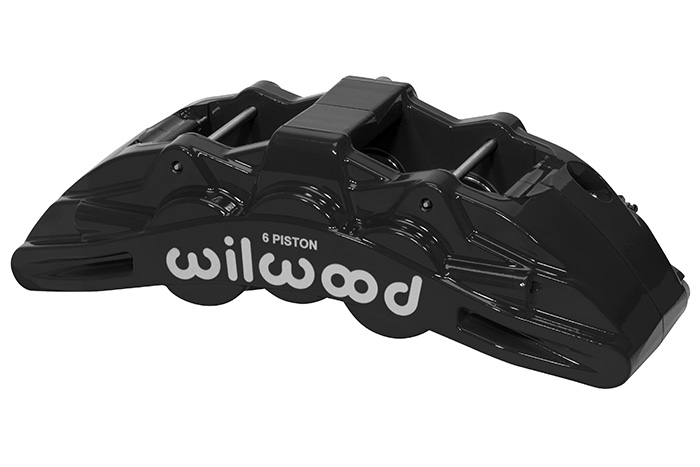

SX6R calipers were designed for the specific purpose of providing high-capacity braking with large diameter rotors for extreme duty and race vehicles. It is the largest dual-purpose caliper Wilwood has produced, providing big brake performance for show as well as street and track vehicles. Offering additional enhanced braking with wheel and tire upgrades. Kits are fully compatible with OE master cylinder output and ABS function. Directional 72 staggered vane 15.00” rotors provide maximum cooling for sustained high heat durability.

Specifications

Spindle Type:	Factory Disc Spindle
Mount Type:	Radial
Caliper Type:	6 - Black Powder Coat
Rotor Diameter:	15.00
Min Wheel Diameter Req'd*:	19
UPC	889545107586
Left Hand - Part No:	120-14863-BK
Right Hand - Part No:	120-14862-BK
Type:	SX6R
Finish Color:	Black Powder Coat
Piston Count:	6
Piston 1 Bore (in):	1.62
Piston 2 Bore (in):	1.12
Piston 3 Bore (in):	1.12
Piston Area (In²):	4.04
Piston Type:	Stainless
Brake Pad Plate:	D1792
Brake Pad Area (In²):	15.9
Brake Pad Volume (In³):	7.66
Pad Compound:	BP-10
Left Hand - Part No:	160-15330-BK
Right Hand - Part No:	160-15329-BK
Type:	SRP Drilled Rotor
Style:	SRP Drilled & Slotted
Surface Finish:	Black Electro Coat
Material:	Spec-37 Iron
Outside Diameter (in):	15.00
Width (in):	1.25
Vane Count:	72 CV
Design Type:	SRP-BLK
Burnished:	No
Hat - Part No:	170-17005
Type:	Big Brake Dynamic Lug Drive - Short Offset
Material:	Aluminum
Finish Color:	Type III Anodize
Hat Offset Dimension (in):	0.425
Bolt Circle 1:	5 x 4.72
Stud Diameter - BC 1:	0.625
Stud Diameter - BC 2:	0.000
Stud Diameter - BC 3:	0.000
O-ring Kit:	130-5972
Replacement Dustboot:	Call
Replacement Piston 1:	200-7519
Replacement Piston 2:	200-7513
Replacement Piston 3:	200-7513
Replacement Piston 4:	N-A
CrossOver O-Ring Kit:	N-A
Crossover Tube:	N-A
Self-Bleeder Tube:	N-A
Bridge Bolt Kit:	N-A
Wear Plate - Left Hand:	300-5876
Wear Plate - Right Hand:	300-5876
Pad Retainer:	180-17957
Bleed Screw Kit:	220-0627
Front Line Kit:	220-17008
Bolt Kit:	300-14913

140-17004 Black Calipers 15.00-inch Rotors Slotted Rotors; 140-17004-D Black Calipers 15.00-inch Rotors Drilled & Slotted Rotors; 140-17004-DR Red Calipers 15.00-inch Rotors Drilled & Slotted Rotors; 140-17004-R Red Calipers 15.00-inch Rotors Slotted Rotors; Manufacturer configuration SKUs retained; review rotor diameter and color options; Each listed SKU has its own final price; no surcharge added
