2014-2019 Corvette C7 Wilwood SX6R Front 14" Drilled Brake Kit Red

2014-2019 Corvette C7 Wilwood SX6R Front 14

$4,003.94

Model: WIL140-15722-DR Manufacturers: Willwood

Qty:

Reviews

Add to Wish List

Description

2014-2019 Corvette C7 Wilwood SX6R Front 14" Drilled Brake Kit Red

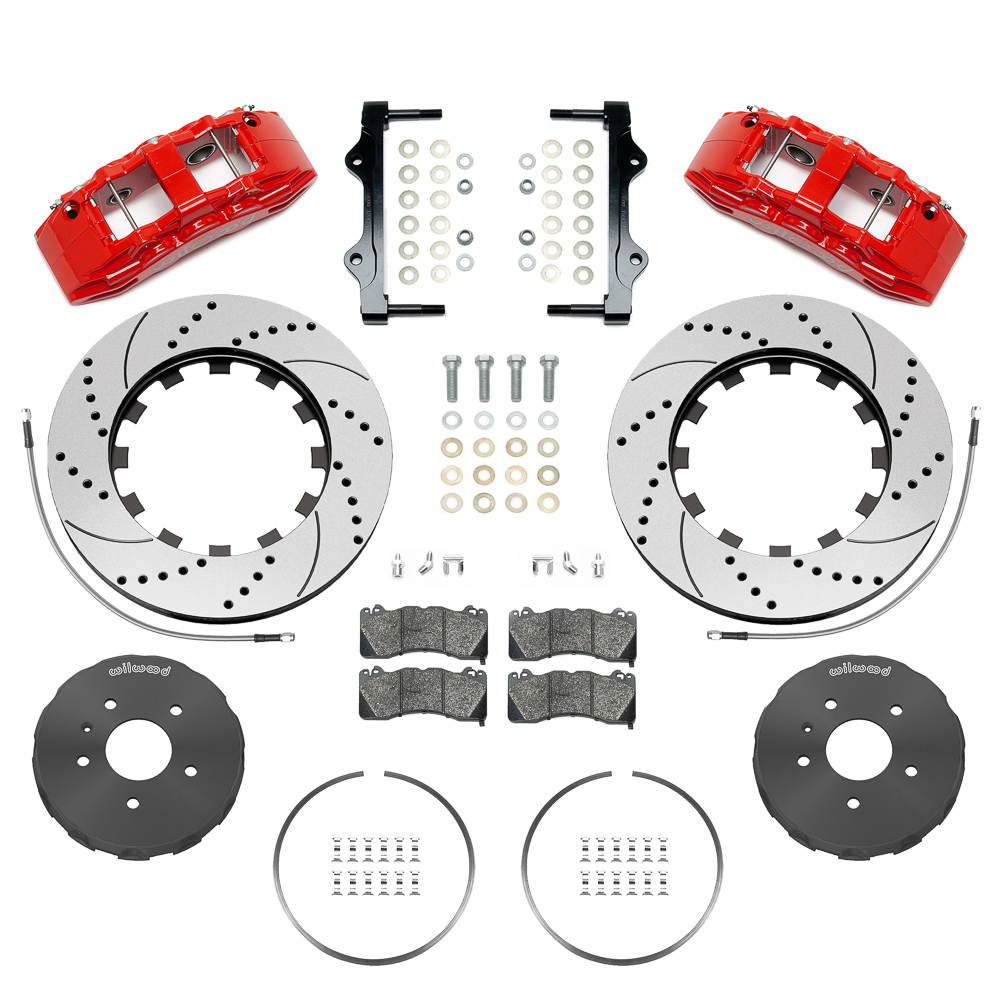

KIT,FRONT,C7 CORVETTE,2014-UP,SX6R,LUG DRIVE,14.00 ROTOR,DRILLED,RED,W/LINES

SX6R calipers were designed for the specific purpose of providing high capacity braking with large diameter rotors for extreme duty and race vehicles. It is the largest dual purpose caliper Wilwood has produced, providing big brake performance for show and dual purpose street and track vehicles. Offering additional enhanced braking with wheel and tire upgrades. Kits are fully compatible with OE master cylinder output and ABS function. Directional 72 staggered vane 14.00” to 15.00”rotors provide maximum cooling for sustained high heat durability.

Specifications

Spindle Type:	Factory Disc Spindle
Mount Type:	Radial
Caliper Type:	6 - Red Powder Coat
Rotor Diameter:	14.00

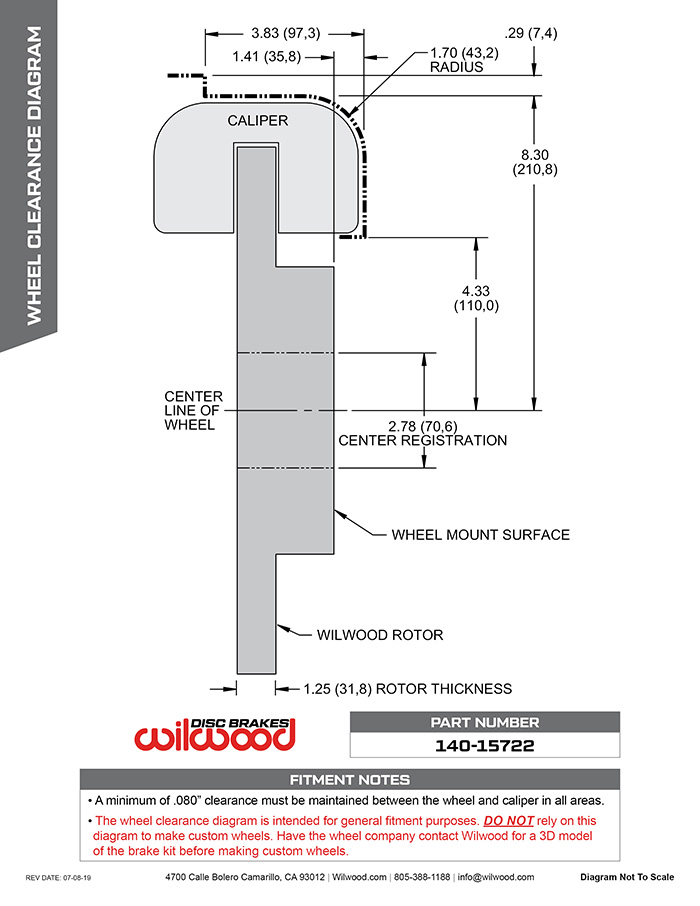

Min Wheel Diameter Req'd*:	18
UPC	889545091748
Left Hand - Part No:	120-14863-RD
Right Hand - Part No:	120-14862-RD
Type:	SX6R
Finish Color:	Red Powder Coat
Piston Count:	6
Piston 1 Bore (in):	1.62
Piston 2 Bore (in):	1.12
Piston 3 Bore (in):	1.12
Piston Area (In²):	4.04
Piston Type:	Stainless
Brake Pad Plate:	D1792
Brake Pad Area (In²):	15.9
Brake Pad Volume (In³):	7.66
Pad Compound:	BP-10
Left Hand - Part No:	160-15328-BK
Right Hand - Part No:	160-15327-BK
Type:	SRP Drilled Rotor
Style:	SRP Drilled & Slotted
Surface Finish:	Black Electro Coat
Material:	Spec-37 Iron
Outside Diameter (in):	14.00
Width (in):	1.25
Vane Count:	72 CV
Design Type:	SRP-BLK
Burnished:	No
Hat - Part No:	170-15717
Type:	Big Brake Dynamic Lug Drive - Short Offset
Material:	Aluminum
Finish Color:	Type III Anodize
Hat Offset Dimension (in):	0.518
Bolt Circle 1:	5 x 4.75
Stud Diameter - BC 1:	0.520
Stud Diameter - BC 2:	0.000
Stud Diameter - BC 3:	0.000
O-ring Kit:	130-5972
Replacement Dustboot:	Call
Replacement Piston 1:	200-7519
Replacement Piston 2:	200-7513
Replacement Piston 3:	200-7513
Replacement Piston 4:	N-A
CrossOver O-Ring Kit:	N-A
Crossover Tube:	N-A
Self-Bleeder Tube:	N-A
Bridge Bolt Kit:	N-A
Wear Plate - Left Hand:	300-5876
Wear Plate - Right Hand:	300-5876
Pad Retainer:	180-17957
Bleed Screw Kit:	220-0627
Front Line Kit:	220-9100
Bolt Kit:	300-14912

140-15722 Black Calipers 14.00-inch Rotors Slotted Rotors; 140-15722-D Black Calipers 14.00-inch Rotors Drilled & Slotted Rotors; 140-15722-DR Red Calipers 14.00-inch Rotors Drilled & Slotted Rotors; 140-15722-R Red Calipers 14.00-inch Rotors Slotted Rotors; Manufacturer configuration SKUs retained; review rotor diameter and color options; Each listed SKU has its own final price; no surcharge added
