1997-2013 Corvette C5/C6 Wilwood FNSL4R Rear Caliper & Bracket Kit Black

$1,219.14

Model: WIL140-14026 Manufacturers: Willwood

Qty:

Reviews

Add to Wish List

Description

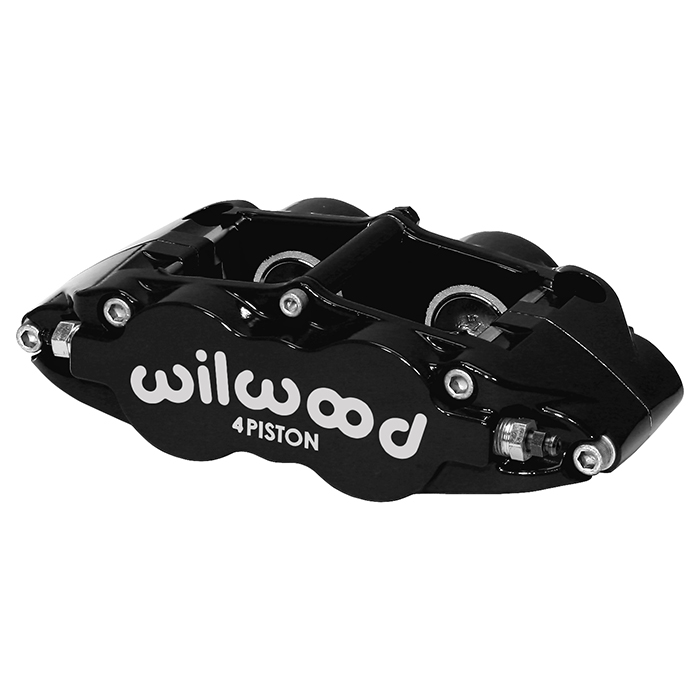

1997-2013 Corvette C5/C6 Wilwood FNSL4R Rear Caliper & Bracket Kit Black

KIT,REAR,C5/C6 VETTE 97-13,FNSL4R W/PADS BRACKETS FOR OE C6 Z51,13.00 ROTOR,BLACK

Superlite 4R four piston radial mount rear caliper kits add big brake stopping power and style to any 1997-2013 C5 or C6 Corvette rear suspension. These caliper kits mount in the stock location and replace the OE calipers on all models that have been updated with 13.00” rotors from the 2005-09 C6 Z51 models. Superlite 4R calipers incorporate race proven technology in a high strength, center bridge reinforced forged body design. They provide positive and confident pedal response that is matched to the OE master cylinder output and fully compatible with the ABS system. BP-20 dual-sport compound Smart Pads provide clean and quiet driving on the street, with improved friction and high temperature fade resistance for auto-cross and other sport driving applications.

Specifications

Rear End Axle:	OEM
Axle Offset:	0.00
Mount Type:	Radial
Caliper Type:	4 - Black Powder Coat
Rotor Diameter:	13.00
Min Wheel Diameter Req'd*:	17
UPC	889545070477
Confirm The Configuration! OEM Flange	Confirm Offset Measurement! Axle Flange Cross-Section
Left Hand - Part No:	120-11783-BK
Right Hand - Part No:	120-11783-BK
Type:	Forged Narrow Superlite 4R
Finish Color:	Black Powder Coat
Piston Count:	4
Piston 1 Bore (in):	1.25
Piston 2 Bore (in):	1.25
Piston Area (In²):	2.46
Piston Type:	Stainless
Brake Pad Plate:	7416
Brake Pad Area (In²):	8.2
Brake Pad Volume (In³):	3.8
Pad Compound:	BP-20
Type:	N-A
O-ring Kit:	130-2479
Replacement Dustboot:	N-A
Replacement Piston 1:	200-7515
Replacement Piston 2:	200-7515
Replacement Piston 3:	N-A
Replacement Piston 4:	N-A
CrossOver O-Ring Kit:	130-10540
Crossover Tube:	N-A
Self-Bleeder Tube:	N-A
Bridge Bolt Kit:	230-17553
Wear Plate - Left Hand:	300-6596
Wear Plate - Right Hand:	300-6595
Pad Retainer:	N-A
Bleed Screw Kit:	220-0627
Rear Line Kit: Rear Line Kit:	220-8177 220-9101

140-14026 Black Calipers 13.00-inch Rotors; 140-14026-R Red Calipers 13.00-inch Rotors; Each listed SKU has its own final price; no surcharge added

This product was added to our catalog on Saturday 26 September, 2026.
