1997-2013 Corvette C5/C6 Wilwood AERO4 Front 14" Brake Kit Race Anodized

1997-2013 Corvette C5/C6 Wilwood AERO4 Front 14

$3,582.09

Model: WIL140-16181 Manufacturers: Willwood

Qty:

Reviews

Add to Wish List

Description

1997-2013 Corvette C5/C6 Wilwood AERO4 Front 14" Brake Kit Race Anodized

KIT,FRONT,AERO4,ST,97-13 C5/C6 VETTE 14.0 LUG DRIVE,ROAD RACE,.80 PAD,ANO

Aerolite four piston calipers are coupled with the high heat capacity of dynamically mounted 14.00" Spec37 alloy rotors to provide consistent, responsive braking for Corvette race cars, autocross, and track day cars using Corvette suspension. GT rotors with 72 staggered directional vanes shed heat and float on lightweight forged aluminum hats via an innovative, dynamic lug-drive mount system to further reduce thermal stresses. This kit comes complete with high temperature, high friction, BP-35 SmartPads selected specifically for exceptional driver control with DOT tires and limited downforce.

The radial-mount Aerolite caliper uses a forged aluminum body with type III Mil-Spec hard anodized finish and a closed bridge to reduce deflection. The race version features a wide body for 20mm pads, providing longer service life on track even with high speed and heavier cars. Aluminum Thermlock pistons with stainless steel shields further protect brake fluid from heat compared to the aluminum or steel pistons found in OE calipers. Internal springs and high-temperature piston seals reduce piston knockback for a more consistent pedal feel.

Caliper pistons are sized for complete compatibility with the factory master cylinder and ABS controls. For dedicated competition use, manual brake conversions with balance bar pedals are also possible. Mounting brackets with premium-grade hardware secure the calipers in the stock location. Kit requires a stainless steel braided flexline, sold separately, specific to the model year.

Specifications

Spindle Type:	Drop Spindle Factory Disc Spindle
Mount Type:	Radial
Caliper Type:	4 - Type III Anodize
Rotor Diameter:	14.00

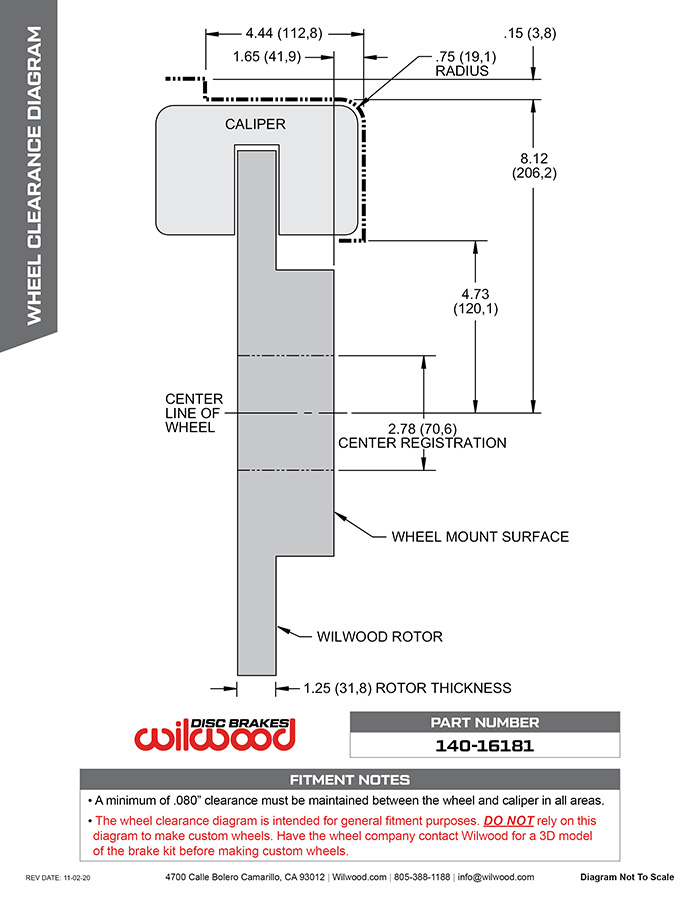

Min Wheel Diameter Req'd*:	18
UPC	889545098273
Left Hand - Part No:	120-16088
Right Hand - Part No:	120-16087
Type:	AERO4
Finish Color:	Type III Anodize
Piston Count:	4
Piston 1 Bore (in):	1.75
Piston 2 Bore (in):	1.50
Piston Area (In²):	4.17
Piston Type:	Thermlock
Brake Pad Plate:	6620
Brake Pad Area (In²):	11.1
Brake Pad Volume (In³):	6.6
Pad Compound:	BP-35
Left Hand - Part No:	160-15874
Right Hand - Part No:	160-15873
Type:	GT 72 Curved Vane
Style:	GT Slotted
Surface Finish:	Plain
Material:	Spec-37 Iron
Outside Diameter (in):	14.00
Width (in):	1.25
Vane Count:	72 CV
Design Type:	GT
Burnished:	No
Hat - Part No:	170-16199
Type:	Big Brake Dynamic Lug Drive - Short Offset
Material:	Aluminum
Hat Offset Dimension (in):	0.280
Bolt Circle 1:	5 x 4.75
Stud Diameter - BC 1:	0.520
Stud Diameter - BC 2:	0.000
Stud Diameter - BC 3:	0.000
O-ring Kit:	130-4782
Replacement Dustboot:	N-A
Replacement Piston 1:	200-7551
Replacement Piston 2:	200-16086
Replacement Piston 3:	N-A
Replacement Piston 4:	N-A
CrossOver O-Ring Kit:	N-A
Crossover Tube:	N-A
Self-Bleeder Tube:	N-A
Bridge Bolt Kit:	N-A
Wear Plate - Left Hand:	300-5876
Wear Plate - Right Hand:	300-5876
Pad Retainer:	180-9874
Bleed Screw Kit:	220-0627
Front Line Kit: Front Line Kit:	220-8176 220-9100
Bolt Kit:	300-14913
