1997-2004 Corvette C5 Wilwood DPC56 Rear Caliper Kit Black

$918.23

Model: WIL140-17666-BK Manufacturers: Willwood

Qty:

Reviews

Add to Wish List

Description

1997-2004 Corvette C5 Wilwood DPC56 Rear Caliper Kit Black

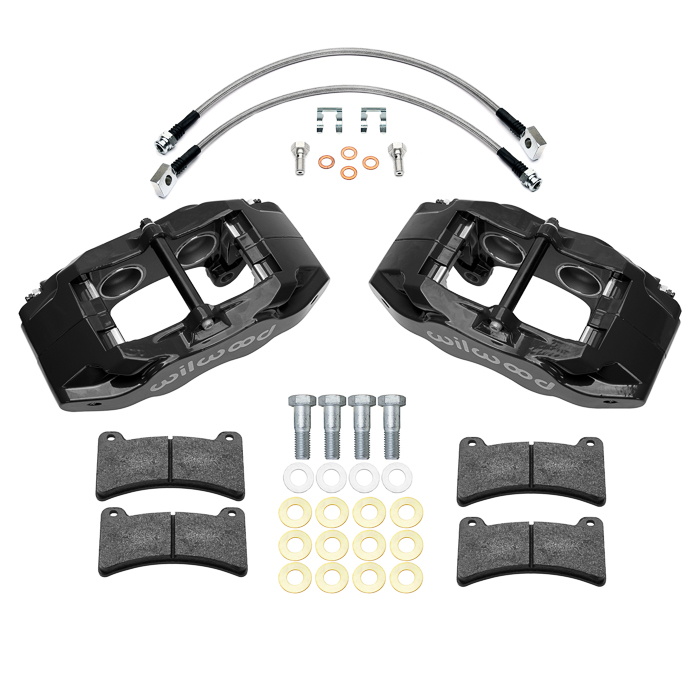

KIT,REAR,CALIPER,DPC5/6,VETTE 97-04 ALL C5,BLACK,W/PADS,LINES

DPC56 rear calipers are engineered as a high performance street and custom replacement for Corvettes and hot rods using Corvette suspension. These kits combine the high-tech styling and superior performance of the SLC56 calipers with the positive response, long wear, high fade resistance, and easy clean properties of the BP-10 compound Smart Pads. These kits are a direct bolt-on replacement for the OE calipers on all models of the C5 from 1997 to 2004, and all base model C6’s from 2005 to 2013 using the existing 12.00” diameter OE dimension rear rotors. The calipers attach directly to the Corvette spindle without the need for brackets or adapters and accept all types of OE banjo bolt style brake hoses.

Specifications

Rear End Axle:	OEM
Axle Offset:	0.00
Mount Type:	Lug
Caliper Type:	4 - Black Powder Coat

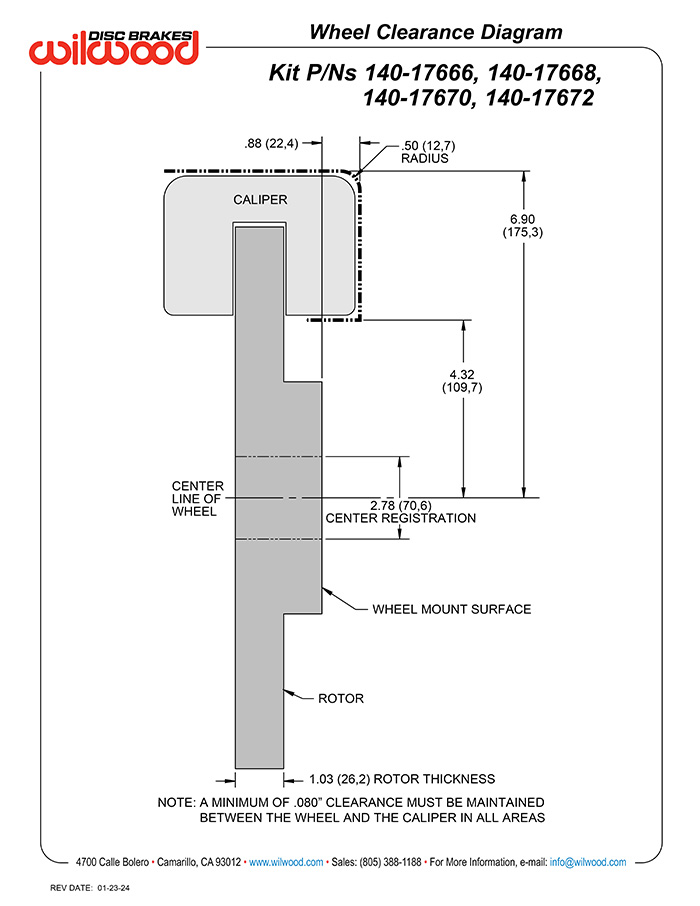

Min Wheel Diameter Req'd*:	17
UPC	889545116410
Confirm The Configuration! OEM Flange	Confirm Offset Measurement! Axle Flange Cross-Section

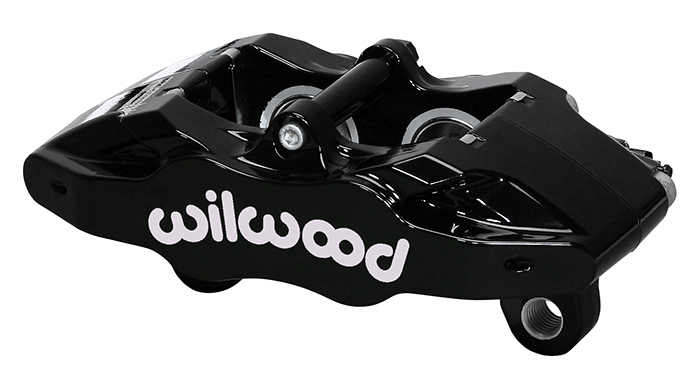

Left Hand - Part No:	120-13916-BK
Right Hand - Part No:	120-13916-BK
Type:	DPC56
Finish Color:	Black Powder Coat
Piston Count:	4
Piston 1 Bore (in):	1.25
Piston 2 Bore (in):	1.25
Piston Area (In²):	2.46
Piston Type:	Stainless
Brake Pad Plate:	4812
Brake Pad Area (In²):	5.1
Brake Pad Volume (In³):	1.71
Pad Compound:	BP-10
O-ring Kit:	130-2479
Replacement Dustboot:	N-A
Replacement Piston 1:	200-7515
Replacement Piston 2:	200-7515
Replacement Piston 3:	N-A
Replacement Piston 4:	N-A
CrossOver O-Ring Kit:	130-10540
Crossover Tube:	N-A
Self-Bleeder Tube:	N-A
Bridge Bolt Kit:	N-A
Wear Plate - Left Hand:	300-5875
Wear Plate - Right Hand:	300-5875
Pad Retainer:	N-A
Bleed Screw Kit:	220-0627
Rear Line Kit:	220-8072

140-17666-BK Black Calipers; 140-17666-R Red Calipers; Each listed SKU has its own final price; no surcharge added
