1988-1996 Corvette C4 Wilwood Rear 12.88" Drilled Brake Kit

1988-1996 Corvette C4 Wilwood Rear 12.88

$2,559.92

Model: WIL140-14883-D Manufacturers: Willwood

Qty:

Reviews

Add to Wish List

Description

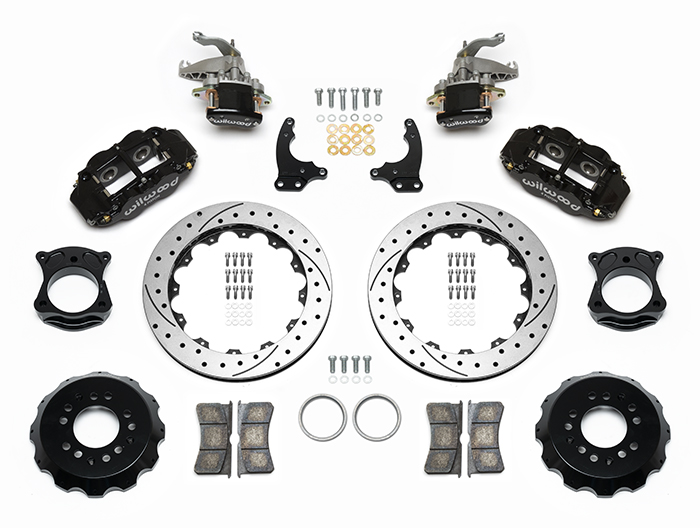

1988-1996 Corvette C4 Wilwood Rear 12.88" Drilled Brake Kit

KIT,REAR,C4 VETTE,88-96,12.88 ROTOR,SRP

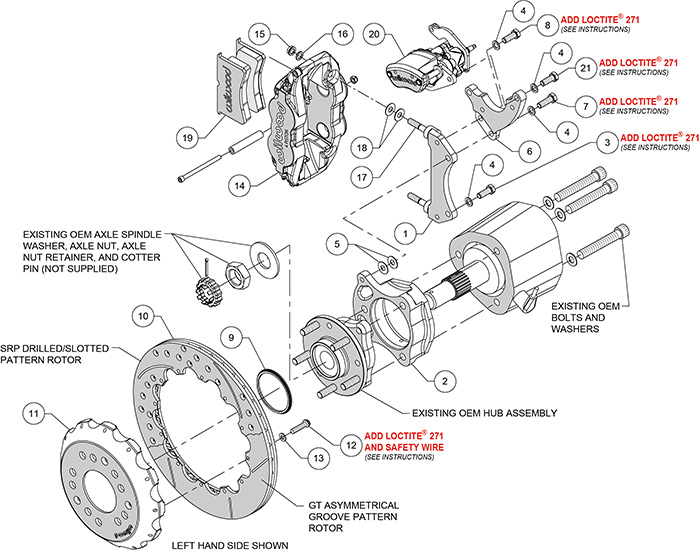

FNSL4R rear big brake kits provide high capacity braking with contemporary styling for high performance street and show Corvettes , and all other custom built vehicles equipped with 1988-1996 C4 Corvette rear suspension. The original equipment single piston combination caliper is replaced with a high efficiency, forged aluminum narrow Superlite four-piston caliper for normal braking, and an auxiliary MC4 mechanical caliper for the parking brake. Rotor size is increased from 12.00" to 12.88", adding brake leverage and cooling capacity while complimenting the look inside custom wheel and tire upgrades.

Specifications

Rear End Axle:	OEM
Axle Offset:	0.00
Mount Type:	Radial
Caliper Type:	4 - Black Powder Coat
Rotor Diameter:	12.88
Min Wheel Diameter Req'd*:	17
UPC	889545083941

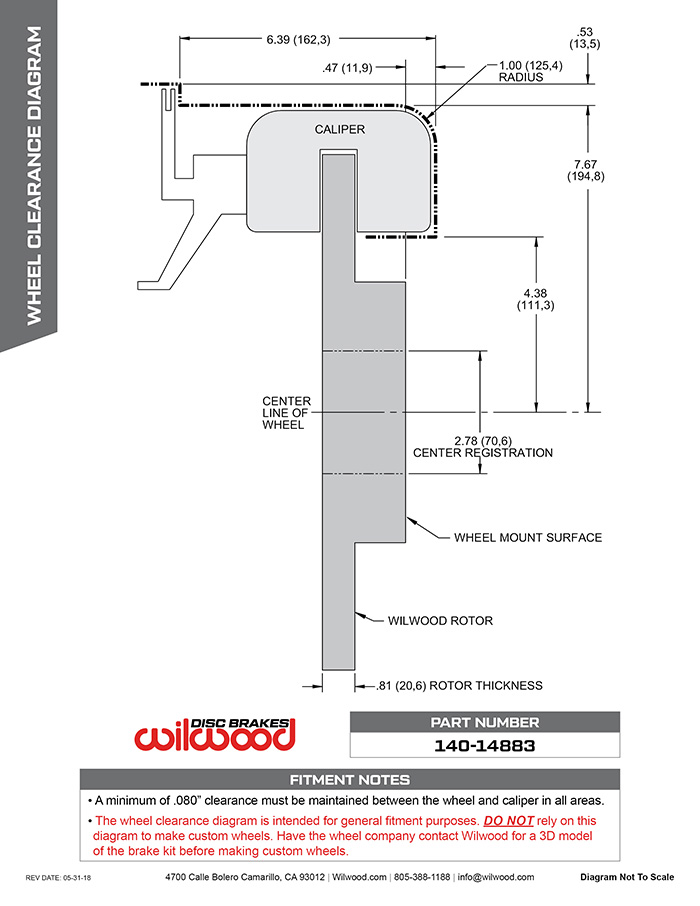

Confirm The Configuration! OEM Flange	Confirm Offset Measurement! Axle Flange Cross-Section
Left Hand - Part No:	120-11876-BK
Right Hand - Part No:	120-11876-BK
Type:	Forged Narrow Superlite 4R
Finish Color:	Black Powder Coat
Piston Count:	4
Piston 1 Bore (in):	1.12
Piston 2 Bore (in):	1.12
Piston Area (In²):	1.98
Piston Type:	Stainless
Brake Pad Plate:	7416
Brake Pad Area (In²):	8.2
Brake Pad Volume (In³):	3.8
Pad Compound:	BP-10
Left Hand - Part No:	160-9962-BK
Right Hand - Part No:	160-9961-BK
Type:	SRP Drilled Rotor
Style:	SRP Drilled & Slotted
Surface Finish:	Black Electro Coat
Material:	Iron
Outside Diameter (in):	12.88
Width (in):	0.81
Vane Count:	48 CV
Design Type:	SRP-BLK
Burnished:	No
Hat - Part No:	170-10231
Type:	Big Brake Hat - Flared Bell
Material:	Aluminum
Finish Color:	Black E-Coat
Hat Offset Dimension (in):	1.200
Bolt Circle 1:	5 x 4.50
Bolt Circle 2:	5 x 4.75
Stud Diameter - BC 1:	0.520
Stud Diameter - BC 2:	0.520
Stud Diameter - BC 3:	0.000
O-ring Kit:	130-2579
Replacement Dustboot:	N-A
Replacement Piston 1:	200-8439
Replacement Piston 2:	200-8439
Replacement Piston 3:	N-A
Replacement Piston 4:	N-A
CrossOver O-Ring Kit:	130-10540
Crossover Tube:	N-A
Self-Bleeder Tube:	N-A
Wear Plate - Left Hand:	300-6596
Wear Plate - Right Hand:	300-6595
Pad Retainer:	N-A
Bleed Screw Kit:	220-0627
Rear Line Kit:	220-8177
Parking Brake Cable:	330-14891
Bolt Kit:	230-8008

140-14883 Black Calipers 12.88-inch Rotors Slotted Rotors; 140-14883-D Black Calipers 12.88-inch Rotors Drilled & Slotted Rotors; 140-14883-DR Red Calipers 12.88-inch Rotors Drilled & Slotted Rotors; 140-14883-R Red Calipers 12.88-inch Rotors Slotted Rotors; Each listed SKU has its own final price; no surcharge added
