1965-1982 Corvette Wilwood D8-4 Front Caliper Kit Red

$905.50

Model: WIL140-10789-R Manufacturers: Willwood

Qty:

Reviews

Add to Wish List

Description

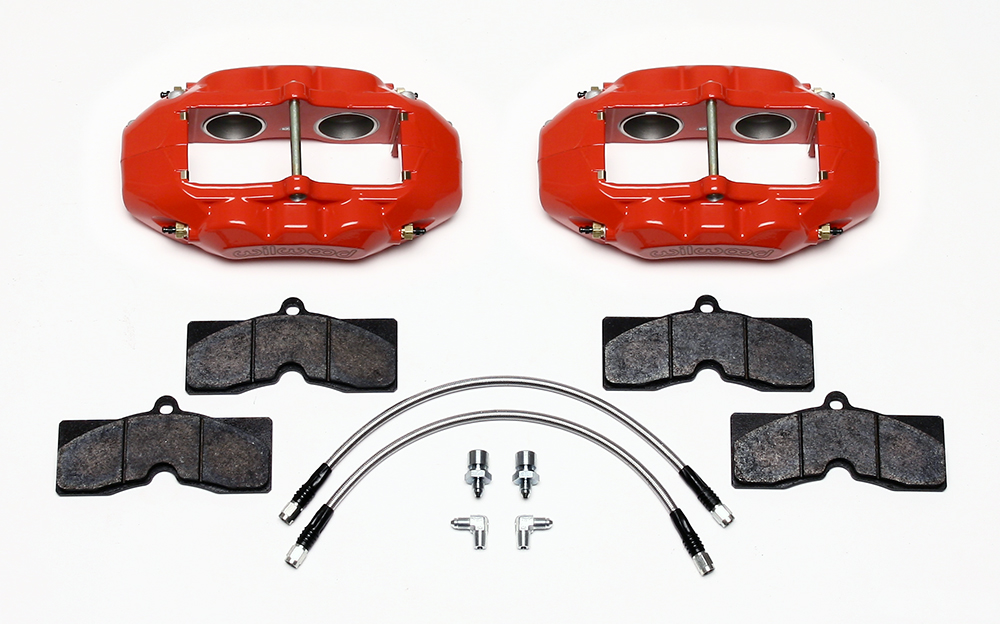

1965-1982 Corvette Wilwood D8-4 Front Caliper Kit Red

KIT,FRONT,VETTE,65-82,D8-4,CALIPERS RED,W/PADS & LINES

D8-4 Front calipers are a direct bolt-on replacements for the OE calipers on all 1965-82 Corvettes. Type III hard anodized forged billet aluminum bodies, stainless steel pistons, and high-temperature seals put an end to the rust, bore pitting and seal failures that plague the OE caliper design. D8-6 calipers provide low-maintenance performance, a huge weight savings, high temperature reliability, and the added benefit of six piston pad clamping power. D8-4 calipers mount in the stock location over stock rotors, use the original style D8 brake pads, and fit snugly inside most ’67 or newer production wheels. Some wheels, including the 1965-66 OE “JK” code steel wheels and a few aftermarket replica alloy wheels, will require a 3/16” or wider wheel spacer for clearance. Kits contain DOT compliant stainless braided brake lines and high friction Promatrix brake pads.

Specifications

Spindle Type:	Factory Disc Spindle
Mount Type:	Lug
Caliper Type:	4 - Red Powder Coat
Min Wheel Diameter Req'd*:	15
UPC	889545010480
Left Hand - Part No:	120-10525-RD
Right Hand - Part No:	120-10525-RD
Type:	D8-4
Finish Color:	Red Powder Coat
Piston Count:	4
Piston 1 Bore (in):	1.88
Piston 2 Bore (in):	1.88
Piston Area (In²):	5.56
Piston Type:	Stainless
Brake Pad Plate:	D8
Brake Pad Area (In²):	10.29
Brake Pad Volume (In³):	3.4
Pad Compound:	PM - ProMatrix
O-ring Kit:	130-11197
Replacement Dustboot:	N-A
Replacement Piston 1:	200-7521
Replacement Piston 2:	200-7521
Replacement Piston 3:	N-A
Replacement Piston 4:	N-A
CrossOver O-Ring Kit:	130-10540
Crossover Tube:	N-A
Self-Bleeder Tube:	N-A
Bridge Bolt Kit:	N-A
Wear Plate - Left Hand:	300-10523
Wear Plate - Right Hand:	300-10523
Pad Retainer:	180-18552
Bleed Screw Kit:	220-0627
Front Line Kit:	220-7699

140-10789 Anodize Calipers; 140-10789-BK Black Calipers; 140-10789-R Red Calipers; Each listed SKU has its own final price; no surcharge added
