1963-1964 Corvette Wilwood Dynalite Front 11.5" Brake Kit Red

1963-1964 Corvette Wilwood Dynalite Front 11.5

$961.25

Model: WIL140-14663-R Manufacturers: Willwood

Qty:

Reviews

Add to Wish List

Description

1963-1964 Corvette Wilwood Dynalite Front 11.5" Brake Kit Red

KIT,FRONT,CHEVY 55-57&59-64/VETTE 63-64 FDL-M,11.50 HUB/ROTOR,RED

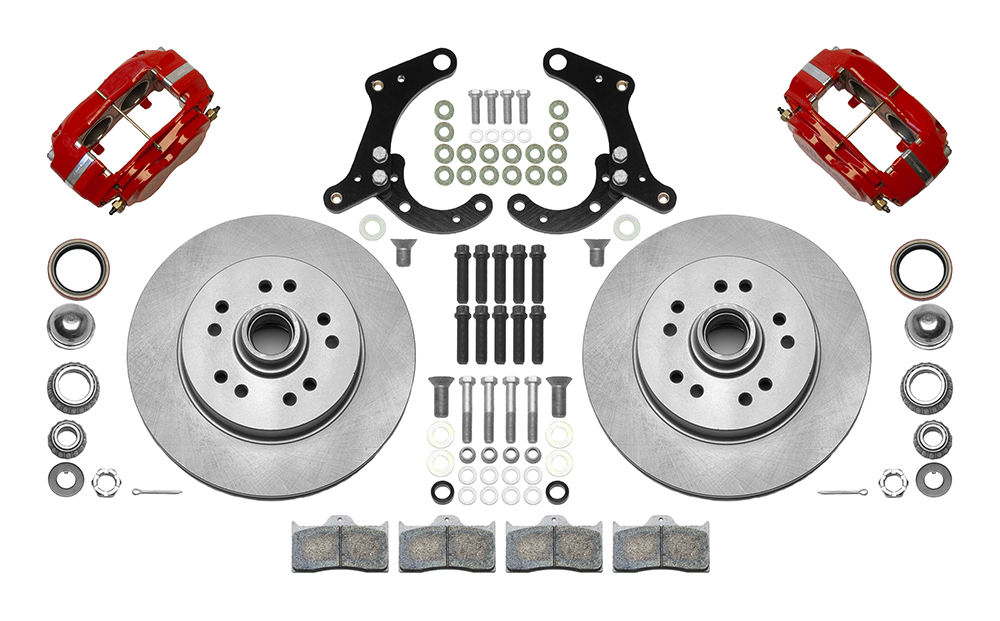

Wilwood's Classic Series front disc brake kits for Chevrolet Full Size vehicles including 1955 to 1957 Chevy, 1958 to 1964 Impala and 1963 to 1964 Corvette offer disc brake upgrade solutions for OEM Drum spindles. A completely new kit design, featuring a large 11.50" x 1.00” rotor and hub assembly. Based on the Forged Dynalite-M caliper, these versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver or the most discriminating show enthusiast. Intended vehicle applications require no modifications for installation, and provide plenty of clearance inside popular aftermarket 15" (disc brake) wheels. FDL-M 1 piece kits can be used with either manual or power boost master cylinders. Kits are complete with calipers, rotors and, hub assembly brackets, hardware.

Specifications

OE Hub Offset:	+.34
Spindle Type:	Factory Drum Spindle
Mount Type:	Lug
Caliper Type:	4 - Red Powder Coat
Rotor Diameter:	11.50
Min Wheel Diameter Req'd*:	15
UPC	889545082128
Left Hand - Part No:	120-13551-RD
Right Hand - Part No:	120-13551-RD

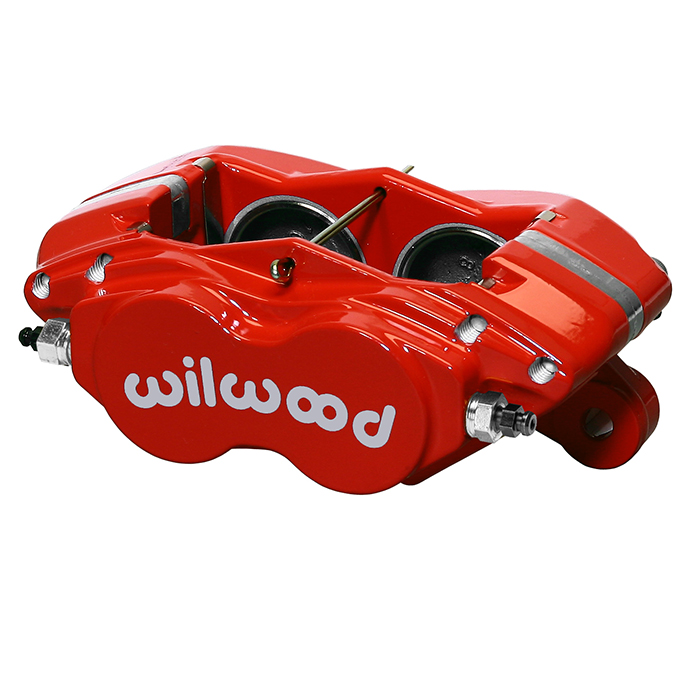

Type:	Forged Dynalite-M
Finish Color:	Red Powder Coat
Piston Count:	4
Piston 1 Bore (in):	1.75
Piston 2 Bore (in):	1.75
Piston Area (In²):	4.80
Piston Type:	Stainless
Brake Pad Plate:	7112
Brake Pad Area (In²):	6.36
Brake Pad Volume (In³):	2.1
Pad Compound:	BP-10
Left Hand - Part No:	160-14653
Right Hand - Part No:	160-14653
Type:	1 PC Hub and Rotor
Style:	Plain Face
Surface Finish:	Plain
Material:	Iron
Outside Diameter (in):	11.50
Width (in):	1.00
Vane Count:	Vented
Design Type:	ULHP
Burnished:	No
O-ring Kit:	130-2655
Replacement Dustboot:	N-A
Replacement Piston 1:	200-7528
Replacement Piston 2:	200-7528
Replacement Piston 3:	N-A
Replacement Piston 4:	N-A
CrossOver O-Ring Kit:	130-10540
Crossover Tube:	N-A
Self-Bleeder Tube:	N-A
Bridge Bolt Kit:	N-A
Wear Plate - Left Hand:	300-5875
Wear Plate - Right Hand:	300-5875
Pad Retainer:	180-0056
Bleed Screw Kit:	220-0627
Front Line Kit:	220-7699

140-14663 Black Calipers 11.50-inch Rotors Undrilled Rotors; 140-14663-R Red Calipers 11.50-inch Rotors Undrilled Rotors; Each listed SKU has its own final price; no surcharge added
