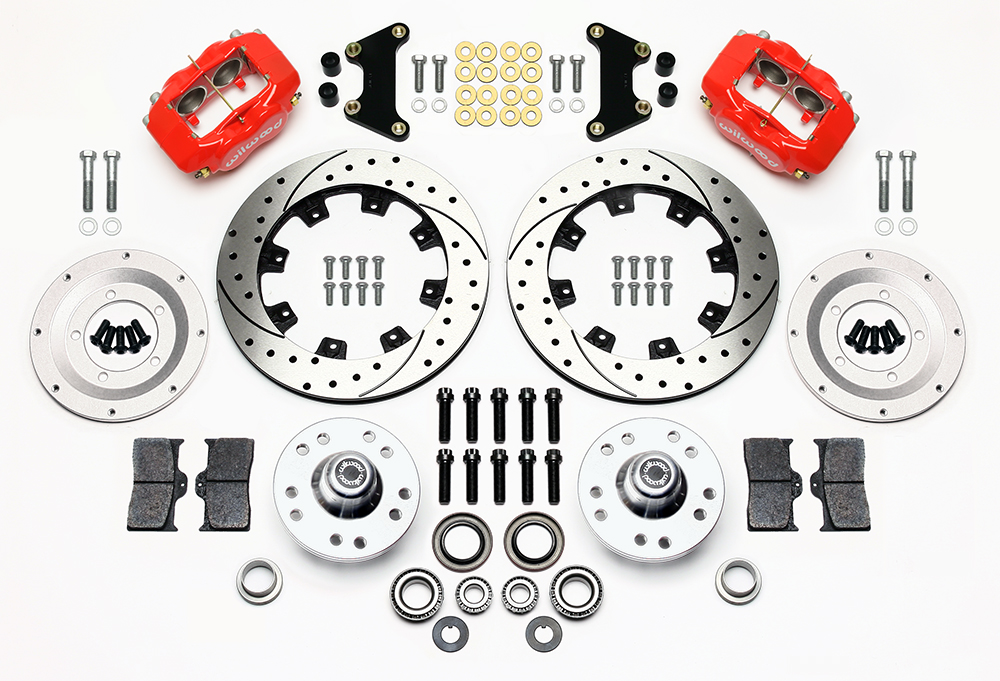

1953-1962 Corvette Wilwood Dynalite Front 12.19" Drilled Brake Kit Red

1953-1962 Corvette Wilwood Dynalite Front 12.19

$1,394.76

Model: WIL140-11812-DR Manufacturers: Willwood

Qty:

Reviews

Add to Wish List

Description

1953-1962 Corvette Wilwood Dynalite Front 12.19" Drilled Brake Kit Red

KIT,FRONT,FDLI,CHEVY 49-54/VETTE 53-62 12.19,SRP,RED

FDL Pro-Series Front Hub Kits offer complete disc brake upgrade solutions for OEM drum brake spindle applications for the popular Chevy 1949-1954 Passenger and 1953-1962 Corvette vehicles. Based on the venerable forged billet Dynalite caliper and 12.19” x .81 rotors, these versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver, serious competition, or the most discriminating show enthusiast. This kit requires no modifications for installation, and provides plenty of clearance inside most popular 15” or 16" wheels. FDL Pro-Series kits can be used with either manual or power boost master cylinders.

Specifications

OE Hub Offset:	+.19
Spindle Type:	Factory Drum Spindle
Mount Type:	Lug
Caliper Type:	4 - Red Powder Coat
Rotor Diameter:	12.19
Min Wheel Diameter Req'd*:	15
UPC	889545014112
Left Hand - Part No:	120-13844-RD
Right Hand - Part No:	120-13844-RD
Type:	Forged Dynalite Internal
Finish Color:	Red Powder Coat
Piston Count:	4
Piston 1 Bore (in):	1.75
Piston 2 Bore (in):	1.75
Piston Area (In²):	4.80
Piston Type:	Stainless
Brake Pad Plate:	7112
Brake Pad Area (In²):	6.36
Brake Pad Volume (In³):	2.1
Pad Compound:	BP-10
Left Hand - Part No:	160-7104-BK
Right Hand - Part No:	160-7103-BK
Type:	SRP Drilled Rotor
Style:	SRP Drilled & Slotted
Surface Finish:	Black Electro Coat
Material:	Iron
Outside Diameter (in):	12.19
Width (in):	0.81
Vane Count:	32 V
Design Type:	SRP-BLK
Burnished:	No
Hub - Part No:	270-11813
Type:	Hub - Vented Rotor Offset
Material:	Aluminum
Finish Color:	Bare
Mount Style:	Adapter
Bolt Circle 1:	5 x 4.75
Bolt Circle 2:	5 x 5.00
Stud Diameter - BC 1:	1/2-20
Stud Diameter - BC 2:	1/2-20
O-ring Kit:	130-2655
Replacement Dustboot:	N-A
Replacement Piston 1:	200-7528
Replacement Piston 2:	200-7528
Replacement Piston 3:	N-A
Replacement Piston 4:	N-A
CrossOver O-Ring Kit:	130-10540
Crossover Tube:	N-A
Self-Bleeder Tube:	N-A
Bridge Bolt Kit:	N-A
Wear Plate - Left Hand:	300-5875
Wear Plate - Right Hand:	300-5875
Pad Retainer:	180-0055
Bleed Screw Kit:	220-0627
Front Line Kit: Front Line Kit:	220-12168 220-8307

140-11812 Black Calipers 12.19-inch Rotors Undrilled Rotors; 140-11812-D Black Calipers 12.19-inch Rotors Drilled & Slotted Rotors; 140-11812-DR Red Calipers 12.19-inch Rotors Drilled & Slotted Rotors; 140-11812-R Red Calipers 12.19-inch Rotors Undrilled Rotors; Manufacturer configuration SKUs retained; review rotor diameter and color options; Each listed SKU has its own final price; no surcharge added
