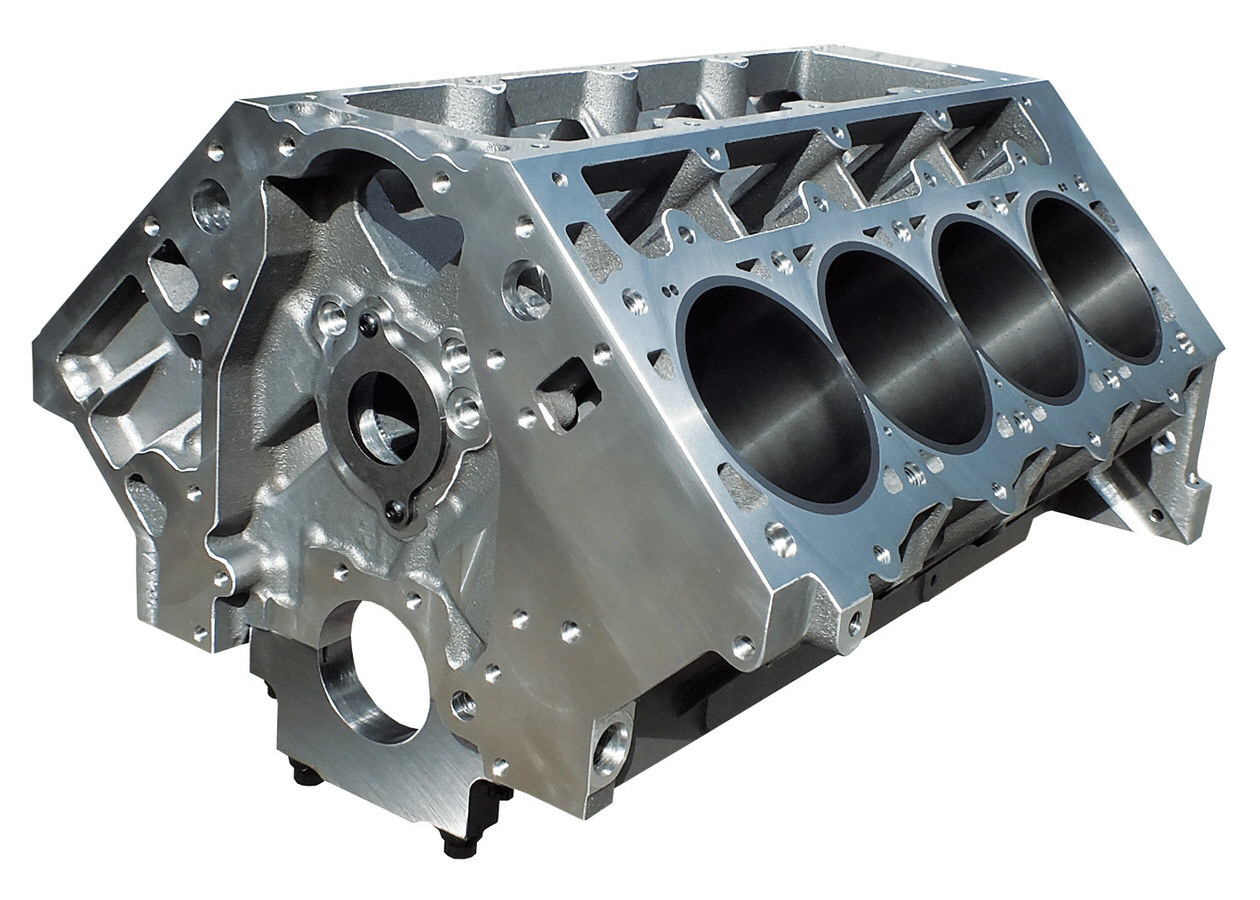

DART Bare Engine Block, LS Next, 4.125 in Bore, 9.240 Deck, 4-Bolt Main, 1 Pc Seal, 0.375 in Extended Cylinder Barrels, Aluminum

DART Bare Engine Block, LS Next, 4.125 in Bore, 9.240 Deck, 4-Bolt Main, 1 Pc Seal, 0.375 in Extended Cylinder Barrels, Aluminum

$7,583.97
Qty:

Reviews
Add to Wish List

DART Bare Engine Block, LS Next, 4.125 in Bore, 9.240 Deck, 4-Bolt Main, 1 Pc Seal, 0.375 in Extended Cylinder Barrels, Aluminum

31937112 – LS Next Aluminum Raised Cam STD Steel STD 9.240” 4.000”

Dart Machinery, LTD. stands behind each product we manufacture 100%. Each component undergoes a detailed manufacturing process that involves the hundreds of calculated and precision steps to ensure the finest quality possible.

Designed from a clean slate approach the LS Next Aluminum block has addressed the shortcomings of the LS platform and is the ideal candidate for hot rodders, drag racers, circle track competitors, off-roaders, and high performance marine enthusiasts.
By utilizing conventional style main caps and oil pans with LS rotating assemblies and related components, Dart has addressed the windage and oil control problems which result from the factory LS engine’s separated crankcase bays.

LS ALM. BLOCK - 9.240/ 4.125 W/STEEL MAIN CAPS

• Skirted and non-skirted design option available.

• Priority main oiling system.

• Available in deck heights from 9.240” up to 9.950”.

• STD or raised .388” cam location.

• Cylinder barrels extended .375” at the bottom.

• Extra thick decks ensure reliable head gasket seal.

• Blind head bolt holes don’t go through to water jacket.

• Scalloped water jackets increase flow around cylinders for better cooling.

• Clearance for 4.100” stroke w/ steel rods.

• Splayed outer bolts on middle main bearing caps.

• LS and Gen I style motor mounts.

• Provisions for OE stock roller lifters and cam.

• Uses stock timing covers and stock rear cover.

• All OE bolt holes for starter, water pump, etc.

• Driver or passenger side starter mounts.

• Parts kit sold separately (PN: 32000017).

Dart products have been at the center of nearly every winning drag race team since 1981. Initially gaining fame for their purpose-built racing heads, Dart now also offers aluminum blocks and intakes, as well, all built with the legendary Dart performance and quality.

Truck Freight Only
This product was added to our catalog on Wednesday 03 April, 2019.
